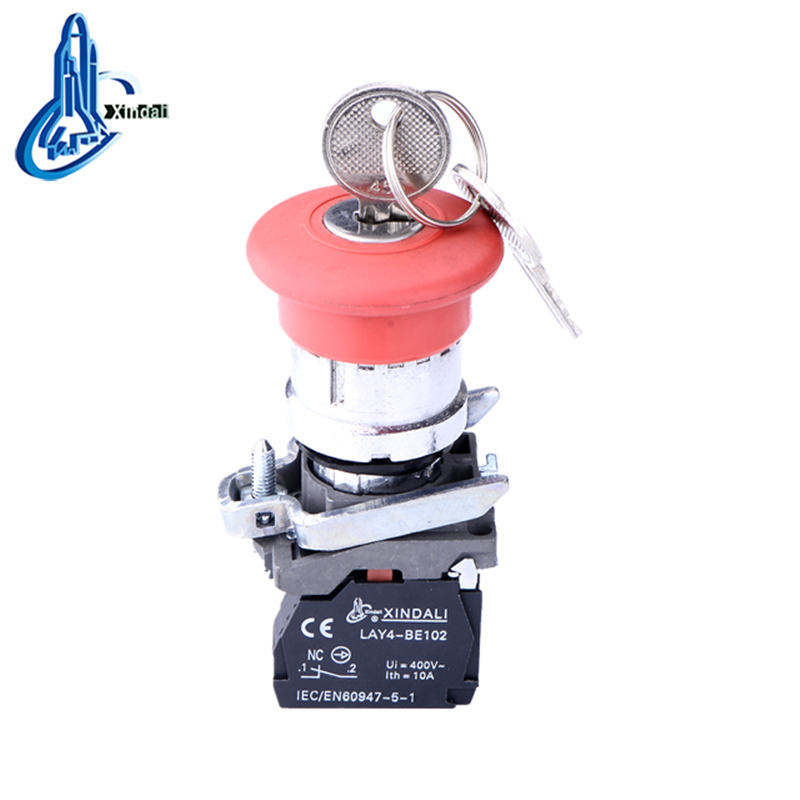

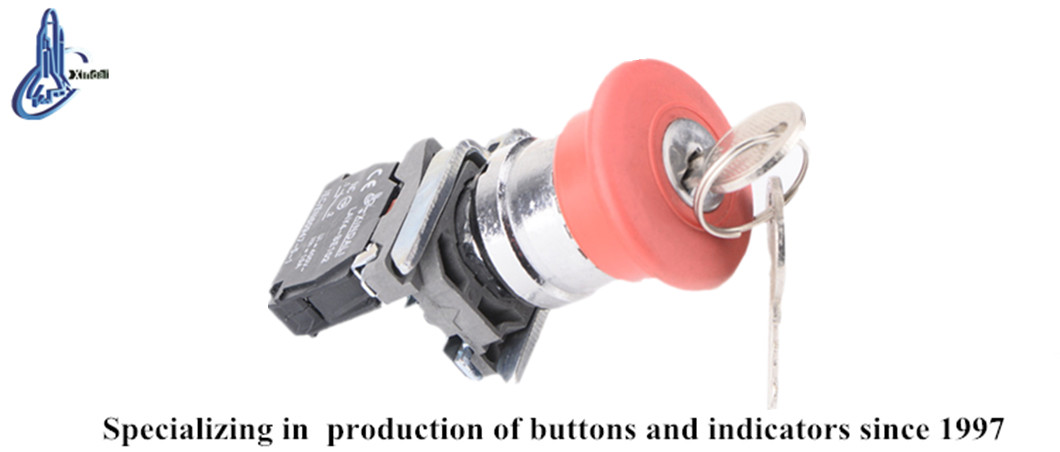

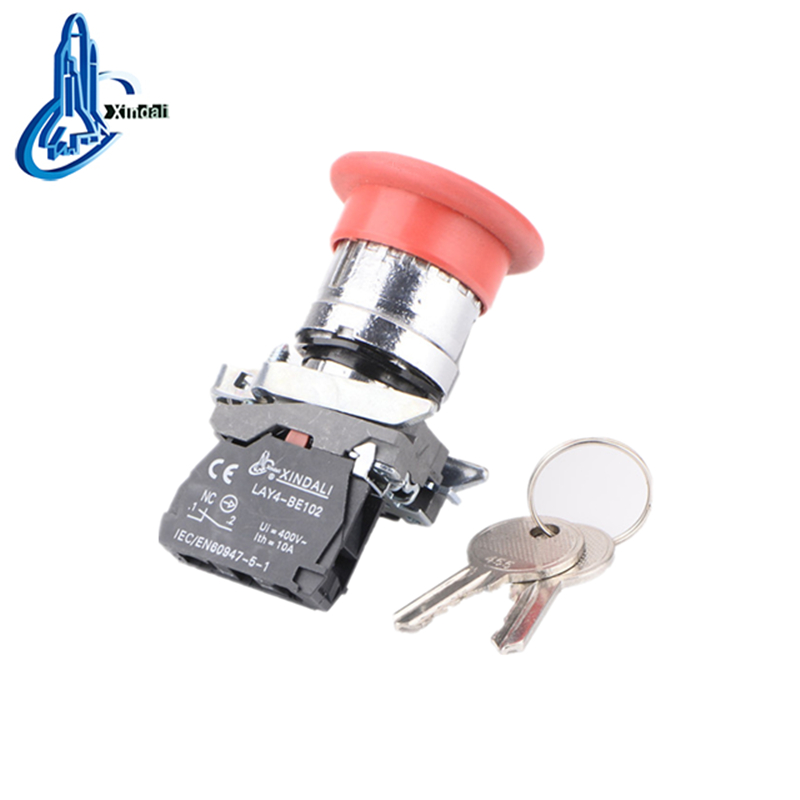

Elevator Emergency Stop Mushroom Push Button Switch with Key
This elevator emergency stop switch features a mushroom-shaped actuator and a key-operated mechanism. It is designed for use in elevator systems to provide a reliable means of stopping the elevator in emergency situations.
Technical Specifications
Product Overview
Safety-Critical Emergency Stop Solution
The LAY4-BS142 is a robust emergency stop push button switch designed for critical safety applications in elevator systems and industrial control panels. Featuring a distinctive mushroom-shaped actuator, this device ensures immediate and reliable operation during emergency situations. The integrated key-operated mechanism adds a layer of security, requiring authorized personnel to reset the switch after activation. Built with high-grade materials, it offers exceptional durability and long-lasting performance in demanding environments.
Technical Specifications
Electrical Ratings
Performance Metrics
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Voltage Wave | ±20% |
| Continuous Working Life | 100,000h |

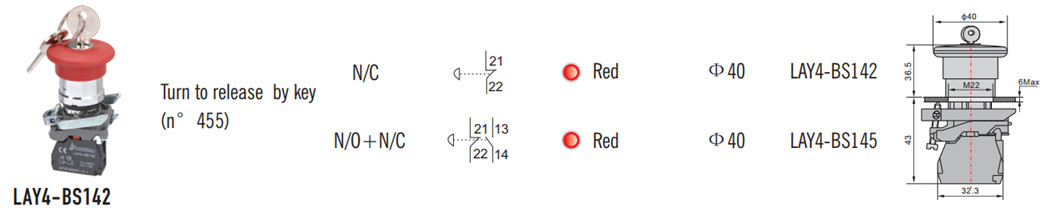

Physical Dimensions
Mechanical Dimensions
- Actuator Diameter: 40mm
- Mounting Thread: M22
- Max Panel Thickness: 6mm
- Base Width: 32.3mm
Compliance & Standards
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
