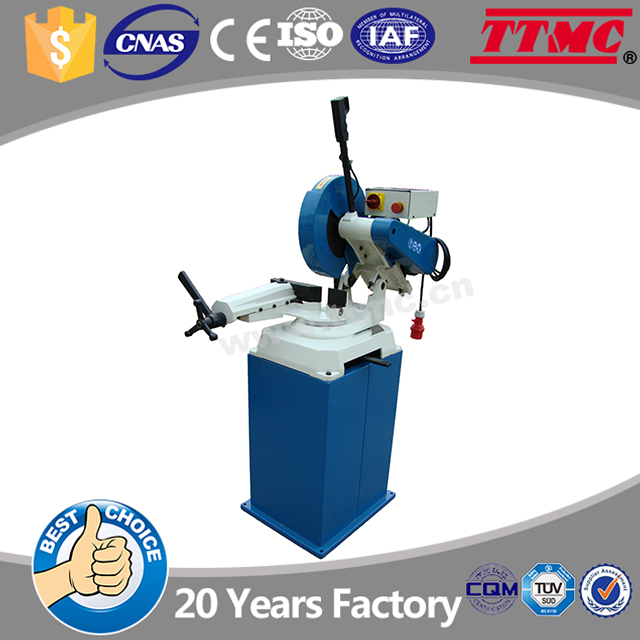

Metal Cut-Off Saw
This cut-off saw is designed for precision metal cutting. It features a robust construction and a powerful motor for efficient operation.
Technical Specifications
Overview
Industrial Metal Cutting Performance
This high-performance abrasive cut-off saw is engineered for precision in industrial and workshop environments. Featuring a robust 4kW motor and an anti-burr vice system, it delivers clean, accurate cuts on round pipes, angle steel, and flat steel profiles. Designed for safety and efficiency, it includes a 24V low-voltage control system and is suitable for demanding applications in architecture, metallurgy, and petrochemical sectors.
Technical Specifications
Blade and Speed
350 mm
Blade Size
4,300 rpm
Blade Speed
- Motor Power
- 4 kW
- Drive System
- Belt
- Vice Opening
- 190 mm
Cutting Capacity
Cutting Capacity Matrix
| Orientation | Circular | Rectangular |
|---|---|---|
| 90° | 120mm | 80x120mm |
| 45° | 105mm | 90x100mm |
Logistics
Weight
145 kg
Net Weight
170 kg
Gross Weight
Packing Dimensions
- Body: 98x64x91 cm
- Stand: 77x54x47 cm
Features
Included Accessories
Blade
- Key Features
- Anti-burr deviceAbrasive cutting24V low voltage controlIndustrial grade
