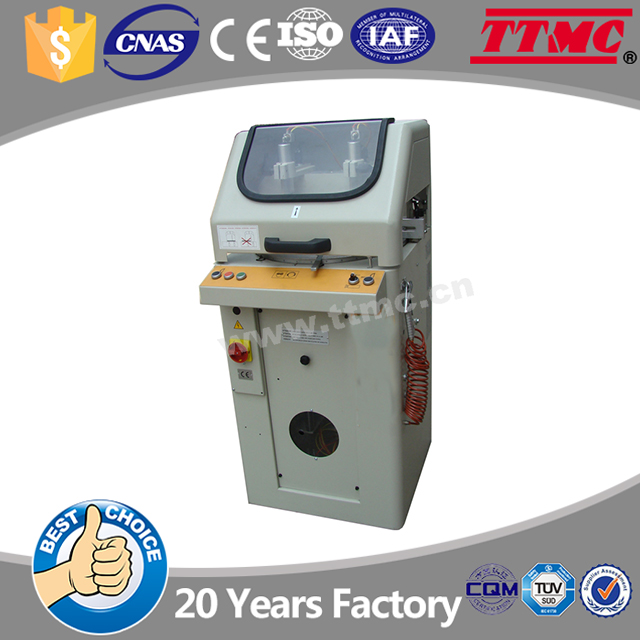

Metal Profile Circular Saw
This circular saw is designed for efficient and accurate cutting of metal profiles. It features a robust construction, safety guard, and user-friendly control panel.
Technical Specifications
Product Overview
Professional Metal Profile Cutting Solution
This high-precision circular saw is specifically engineered for the efficient and accurate cutting of aluminum alloy profiles. Featuring a robust construction, it includes a fast pneumatic clamping vice and an air cylinder for controlled blade descent, ensuring repeatable, clean cuts for industrial applications. The blade can be swiveled ±45°, providing versatile angle adjustment for complex fabrication tasks.
Technical Specifications
- Model Number
- QCS-400
- Blade Diameter
- 400 mm
- Blade Speed
- 2800 rpm
- Motor Power
- 1.1 kW
- Drive System
- Belt
Cutting Capacity
Cutting Capacity Details
| Shape | @90° | @45° |
|---|---|---|
| Circular | 105 mm | 105 mm |
| Rectangular | 200x80 mm | 200x80 mm |
Operational Features
Key Features
- Blade swivels ±45°
- Fast pneumatic clamping vice
- Pneumatic cylinder for controlled descent
- Designed for aluminum alloy
- Standard Accessories
- Blade
Dimensions and Weight
Net/Gross Weight
100 kg
Net Weight
130 kg
Gross Weight
- Body Packing Size
- 86x78x141cm
