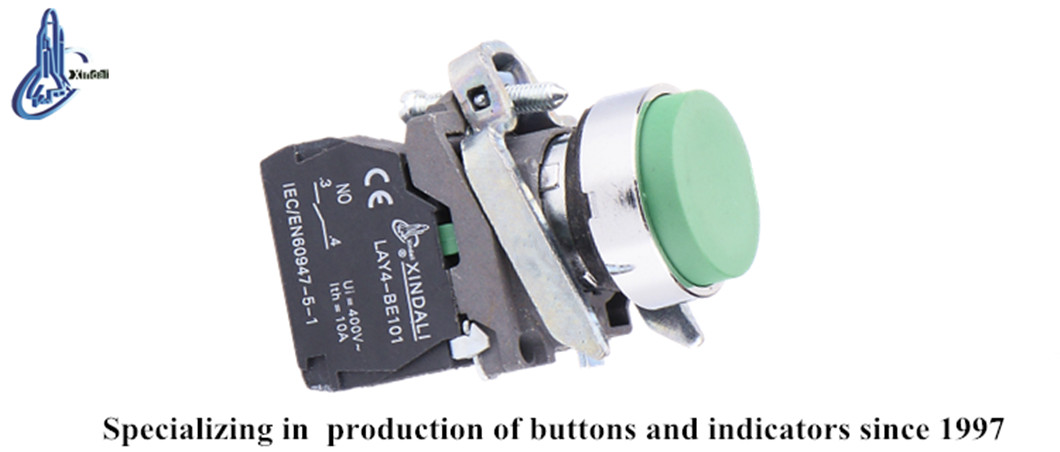

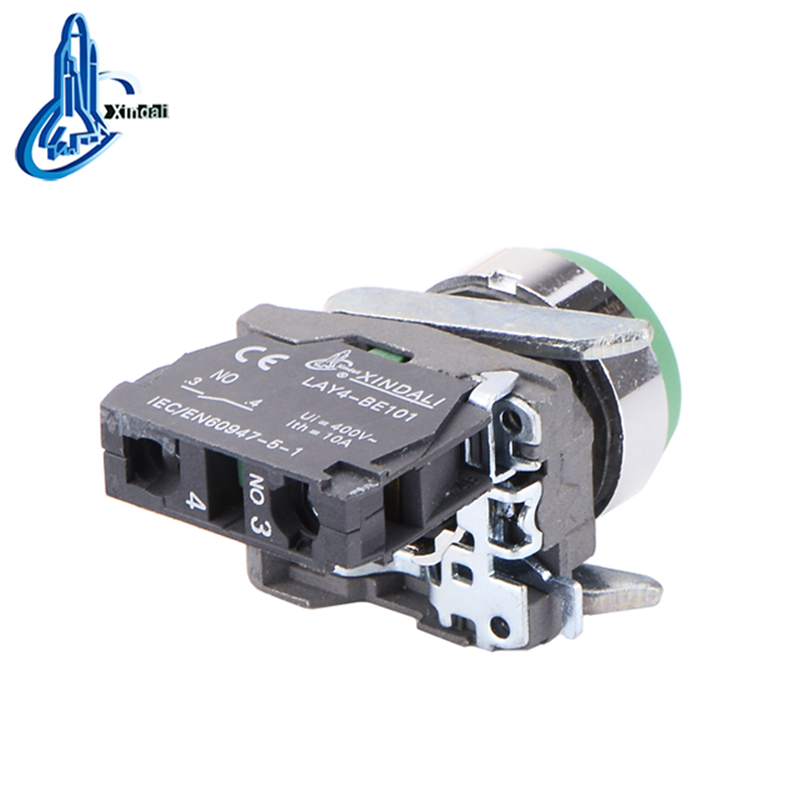

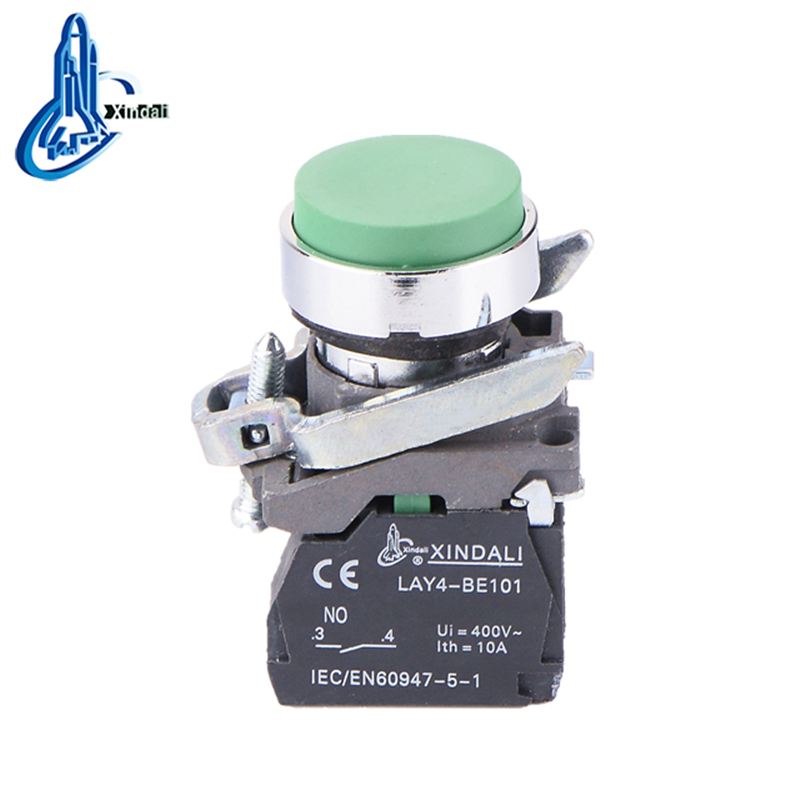

Metal Convex Head Push Button Switch for Elevators
This metal push button switch is designed with a convex head for easy operation. It includes both normally open (NO) and normally closed (NC) contacts for versatile circuit control.
Technical Specifications
Product Overview
Industrial Grade Push Button Switch
This metal convex head push button switch is engineered for demanding industrial environments, including elevator control panels, machinery, and communication networks. Constructed with a zinc alloy body and high-grade anti-flame plastic, it features special silver alloy contacts for superior resistance to electrical erosion. Designed for reliability, this switch complies with international standards including IEC60947-5-1 and is suitable for controlling circuits up to 660V AC or 400V DC.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50 MΩ
- Contact Resistance
- ≤25 mΩ
- PF Withstand Voltage
- AC 2.5KV/min
Mechanical & Durability
- Mechanical Life (Pushbutton)
- 1000000
- Electrical Life (Pushbutton)
- 5000000

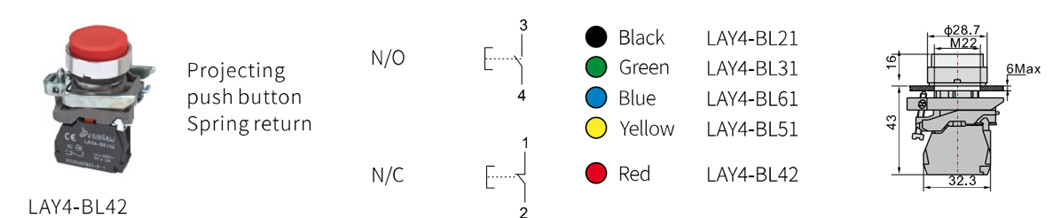

- Mounting Hole Diameter
- 22 mm
- Maximum Panel Thickness
- 6 mm
Compliance & Certifications
Standards Compliance
IEC60947-5-1GB/T14048.1
- Certifications
- CEISO9001RoHSUL
