Technical Specifications
Product Overview
Professional Medium Voltage Cable Solution

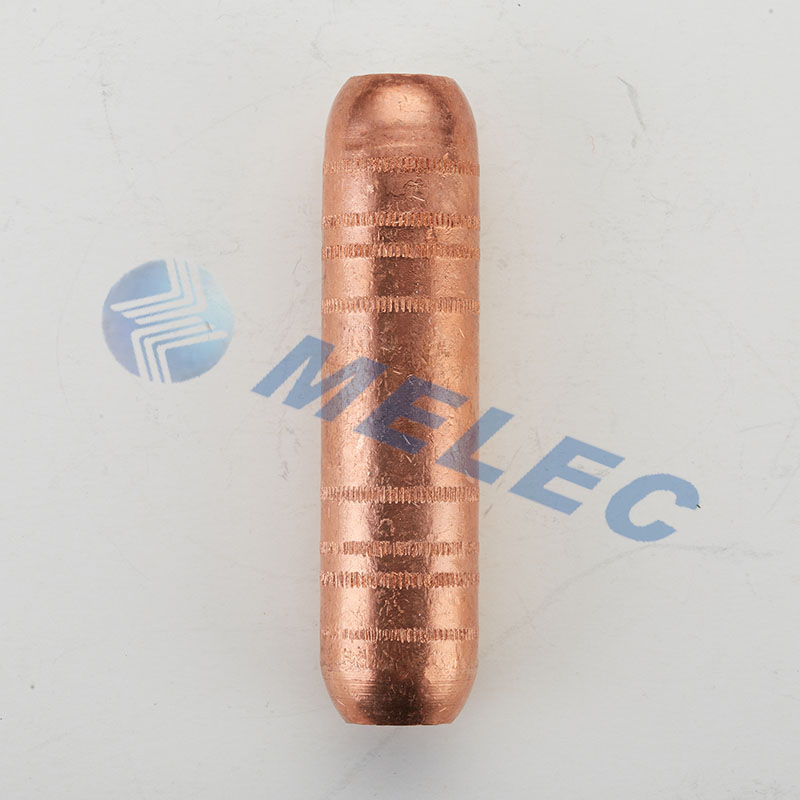

The RJ-U cable link is a high-performance connector engineered specifically for the intermediate connection of copper cables in medium voltage systems. Adhering to the rigorous French NF C 33-090 standard, this component is crafted from high-purity copper (Cu ≥ 99.9%) to ensure superior conductivity and reliability. Its design incorporates an oil-blocking structure and clear barrel markings to facilitate precise crimping, making it a dependable choice for demanding electrical power distribution environments.
Technical Specifications
Key Features
- Oil blocking structure
- Clear barrel markings for crimping accuracy
- Material Purity
- Cu ≥ 99.9%
- Compliance Standard
- NF C 33-090
Dimensional Data

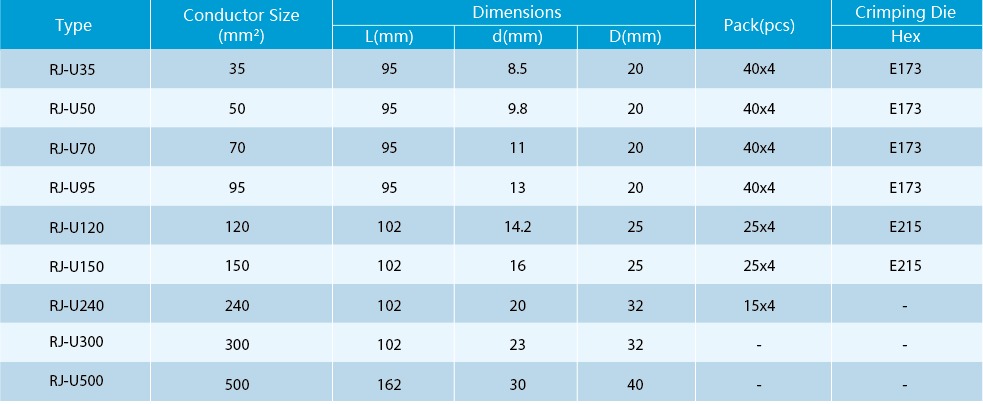

Size Reference Table
| Type | Conductor (mm²) | Length (mm) | Inner Dia (mm) | Outer Dia (mm) |
|---|---|---|---|---|
| RJ-U35 | 35 | 95 | 8.5 | 20 |
| RJ-U50 | 50 | 95 | 9.8 | 20 |
| RJ-U70 | 70 | 95 | 11 | 20 |
| RJ-U95 | 95 | 95 | 13 | 20 |
| RJ-U120 | 120 | 102 | 14.2 | 25 |
| RJ-U150 | 150 | 102 | 16 | 25 |
| RJ-U240 | 240 | 102 | 20 | 32 |
| RJ-U300 | 300 | 102 | 23 | 32 |
| RJ-U500 | 500 | 162 | 30 | 40 |
