Technical Specifications
Product Overview

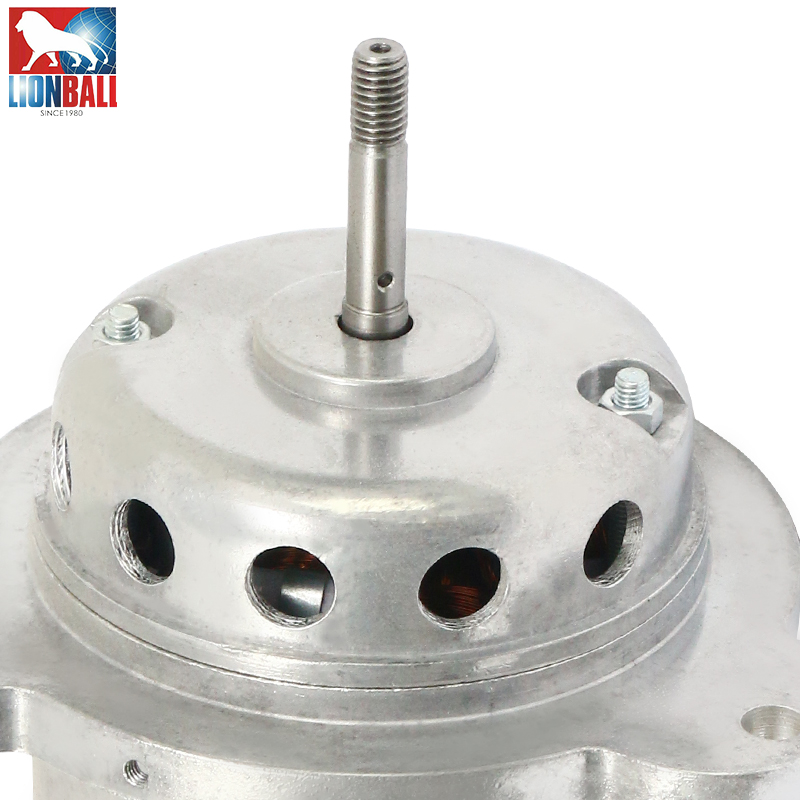

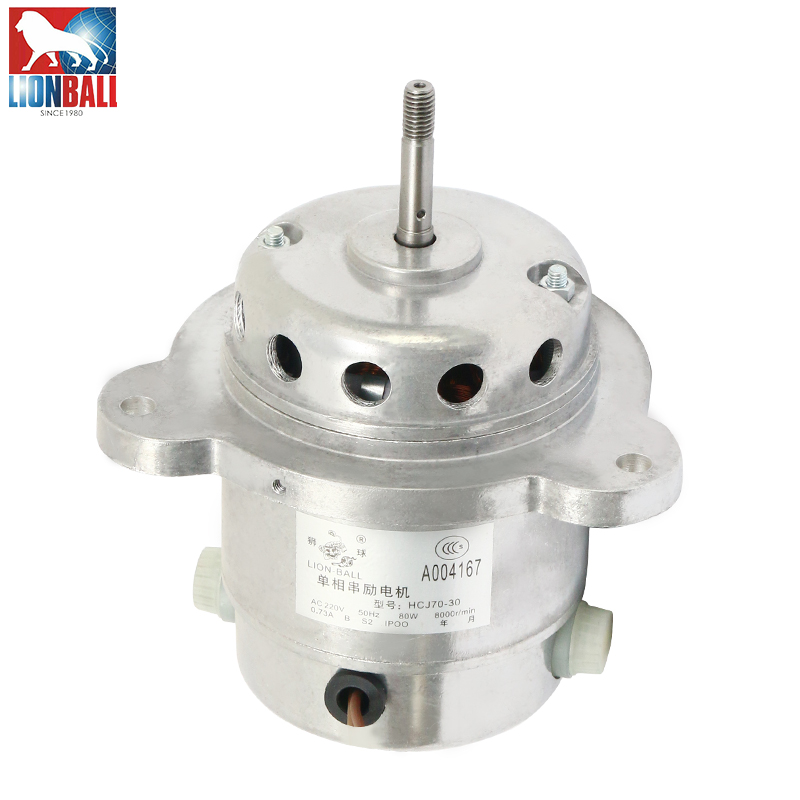

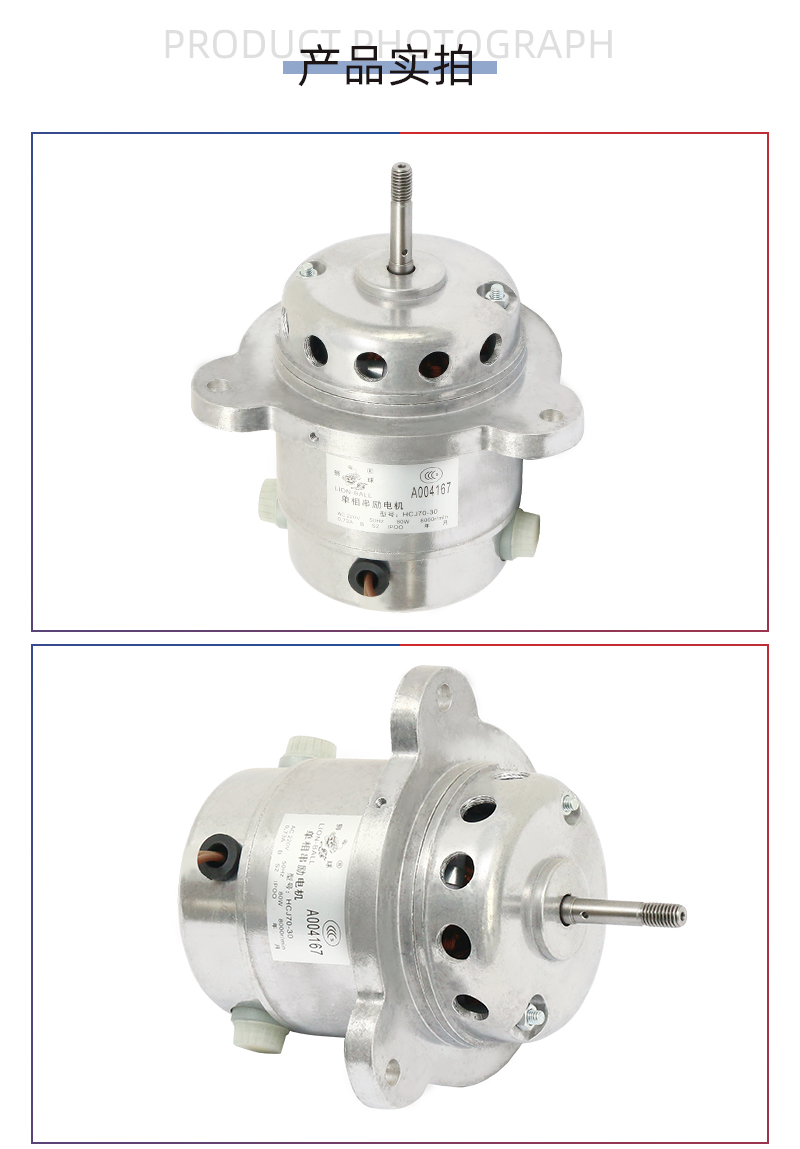

High-Performance Medical Centrifugal Motor
This single-phase series wound motor is engineered specifically for medical centrifugal applications, offering a reliable solution for equipment requiring consistent rotational power. Designed with a focus on stability, it features excellent speed regulation, high starting torque, and a strong overload capacity. Its compact and lightweight construction ensures it fits seamlessly into various medical devices while maintaining durable performance.
Technical Specifications
Electrical Characteristics
220 V
Rated Voltage
50 Hz
Frequency
80 W
Rated Power
0.73 A
Rated Current
8,000 r/min
Rated Speed
Mechanical Standards
- Insulation Class: B
- Protection Grade: IP00
- Duty Cycle: S2
- Performance Features
- Good speed regulationSmall sizeLight weightHigh starting torqueStrong overload capacityStable performance
Model Configuration
Configuration Reference
| Model | Voltage | Frequency | Current | Power | Speed |
|---|---|---|---|---|---|
| HC25 | 220V | 50Hz | 0.4A | 25W | 4000 RPM |
| HC40 | 220V | 50/60Hz | 0.6A | 40W | 4000 RPM |
