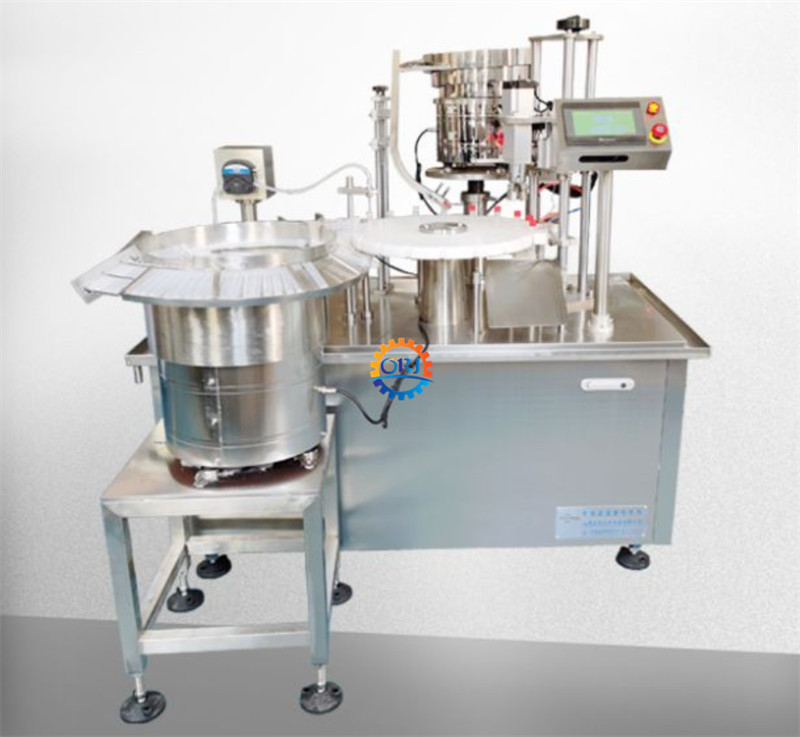

Automated Medical Sampling Tube Filling Machine
This automated machine fills and seals medical sampling tubes with precision. It utilizes a servo motor drive and volumetric metering for accurate filling doses.
Technical Specifications
Overview
High-Precision Automated Filling System

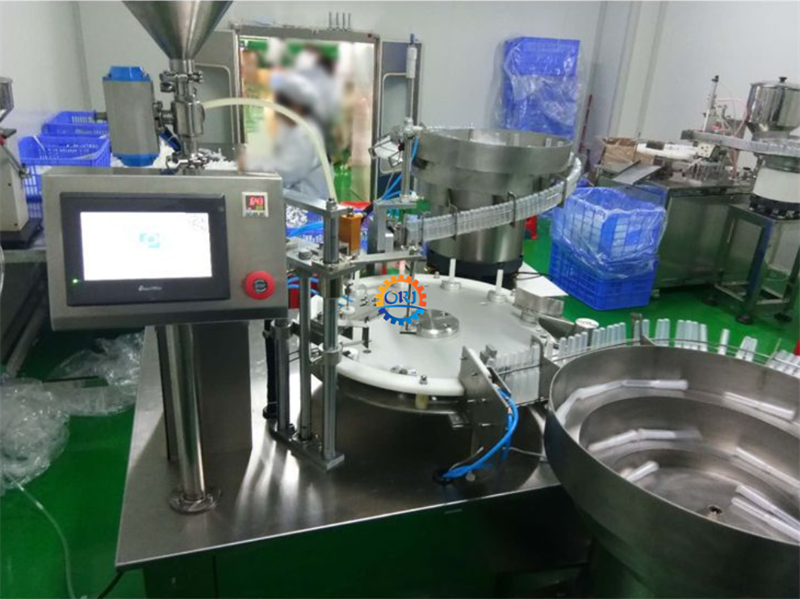

This automated medical sampling tube filling machine is engineered for high-throughput reagent and liquid packaging. It utilizes an in-line structure with servo-motor drive and volumetric metering to ensure high dosage precision. Designed for ease of use, the system features a Siemens PLC control unit and an intuitive touch-screen interface, making it an ideal solution for pharmaceutical and diagnostic liquid vial production.
Performance Metrics
Operational Performance
70 pcs/min
Maximum Production Capacity
1 %
Max Filling Tolerance
99 %
Stoppering/Capping Efficiency
Technical Specifications
Technical Data
| Feature | Specification |
|---|---|
| Applicable Tube Volume | 2-50 ml |
| Power Supply | 380V, 50Hz |
| Control System | PLC + Touch Screen |
| Driving Mechanism | Servo Motor |
Key Features
- System Highlights
- Anti-drip nozzleServo controlVolumetric meteringStainless steel constructionIn-line structure
Applications

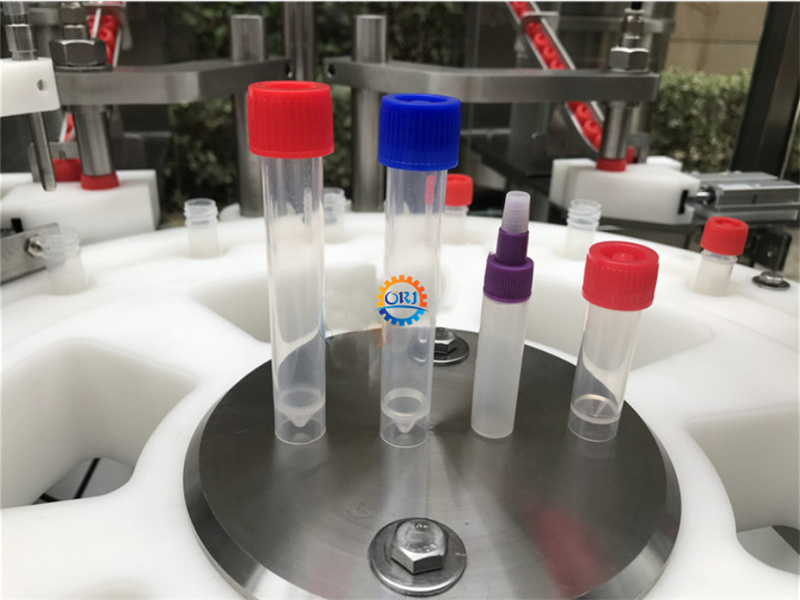

Compatible Containers
- Centrifuge tubes
- Reagent vials
- Freezing tubes
- Glass cryule vials
- Pharyngeal swab sampling tubes
