Mechanical Transition Connector for Dissimilar Cables
This mechanical transition connector is used for intermediate connection of copper cable, aluminum cable and aluminum alloy cable in medium voltage. The connector features different sizes on both sides, making it suitable for connections between two conductors which have a big size difference.
Technical Specifications
Product Overview

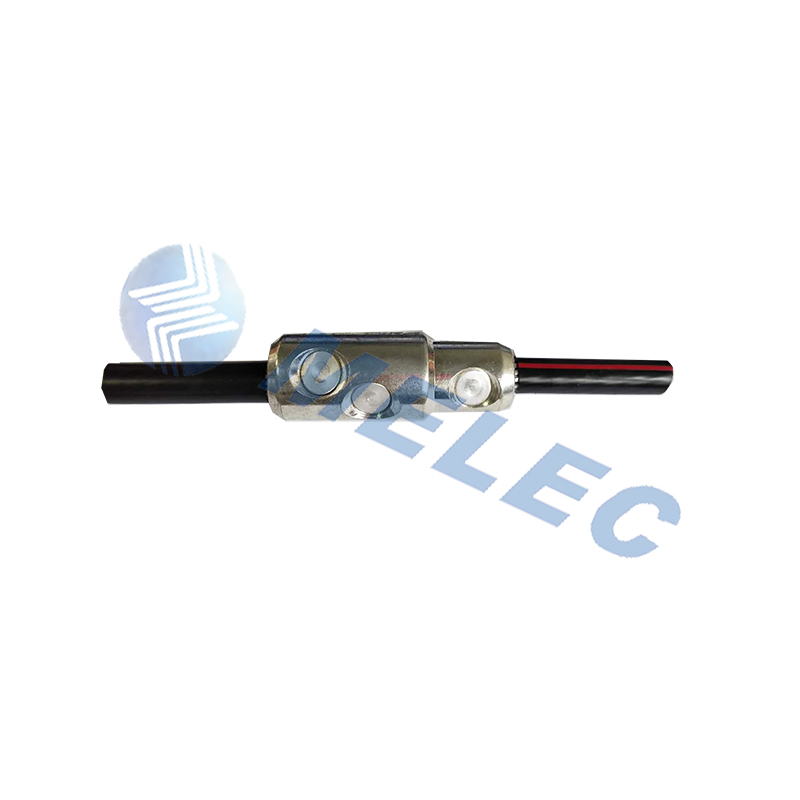

Mechanical Transition Connector
Designed for the intermediate connection of copper, aluminium, and aluminium alloy cables in medium voltage applications. This connector features an oil-blocking structure and a unique design with different sizes on either side, making it ideal for connecting conductors with significant size differences. Installation is simplified as it requires no crimping tools, only a standard socket spanner or wrench, with torque-controlled shear head bolts ensuring stable performance and preventing conductor damage.
Technical Specifications
Compliance
Installation Features
- No crimping tools required
- Uses socket spanner or wrench
- Torque controlled shear head bolts
- Prefilled with jointing compound
- Threaded inner surface for superior performance
- Material Composition
- High Strength Aluminum Alloy BodyAluminum Alloy BoltsTin Plated Surface
Model Selection
Available Models and Specifications

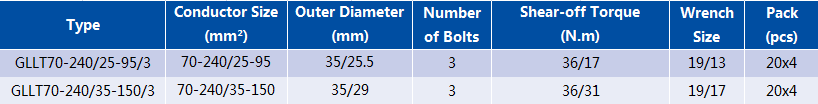

| Type | Conductor Size (mm²) | Outer Diameter (mm) | Bolts | Shear-off Torque (N.m) | Wrench Size | Pack (pcs) |
|---|---|---|---|---|---|---|
| GLLT70-240/25-95/3 | 70-240/25-95 | 35/25.5 | 3 | 36/17 | 19/13 | 20x4 |
| GLLT70-240/35-150/3 | 70-240/35-150 | 35/29 | 3 | 36/31 | 19/17 | 20x4 |
