Mechanical Transition Connector for Dissimilar Cables
These mechanical transition connectors are designed to connect conductors of different sizes. They are suitable for intermediate connections of copper, aluminum, and aluminum alloy cables in medium voltage applications.
Technical Specifications
Product Overview
Mechanical Transition Connector
This mechanical transition connector is specifically designed for the intermediate connection of copper, aluminum, and aluminum alloy cables in medium voltage systems. Featuring a versatile design that accommodates conductors of significantly different sizes, it ensures reliable electrical and mechanical performance without the need for specialized crimping tools. The connector is prefilled with jointing compound and utilizes torque-controlled shear head bolts for stable, damage-free installation.
Technical Specifications
- Body Material
- High strength aluminum alloy
- Bolt Material
- Aluminum alloy
- Surface Finish
- Tin plated
- Compliance Standard
- IEC 61238-1:2003
Key Features
Product Highlights
- Oil blocking structure
- Torque controlled shear head bolts
- Prefilled with jointing compound
- Threaded inner surface for superior performance
- No crimping tools required (uses socket spanner or wrench)
Application Data
Configuration Options

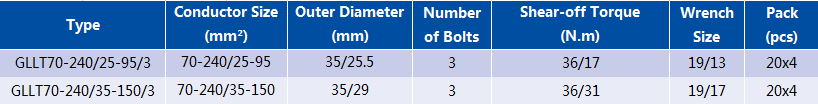

| Type | Conductor Size (mm²) | Outer Diameter (mm) | Shear Torque (N.m) | Wrench Size |
|---|---|---|---|---|
| GLLT70-240/25-95/3 | 70-240/25-95 | 35/25.5 | 36/17 | 19/13 |
| GLLT70-240/35-150/3 | 70-240/35-150 | 35/29 | 36/31 | 19/17 |
