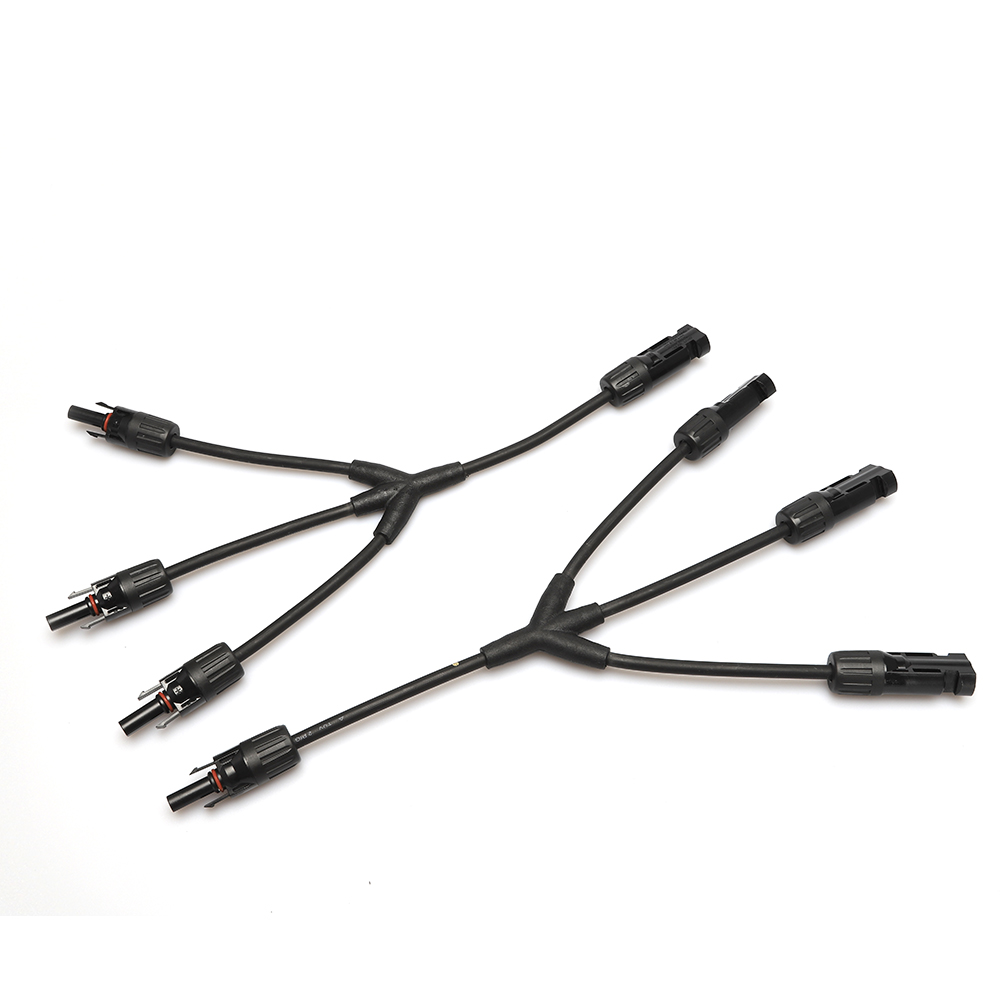

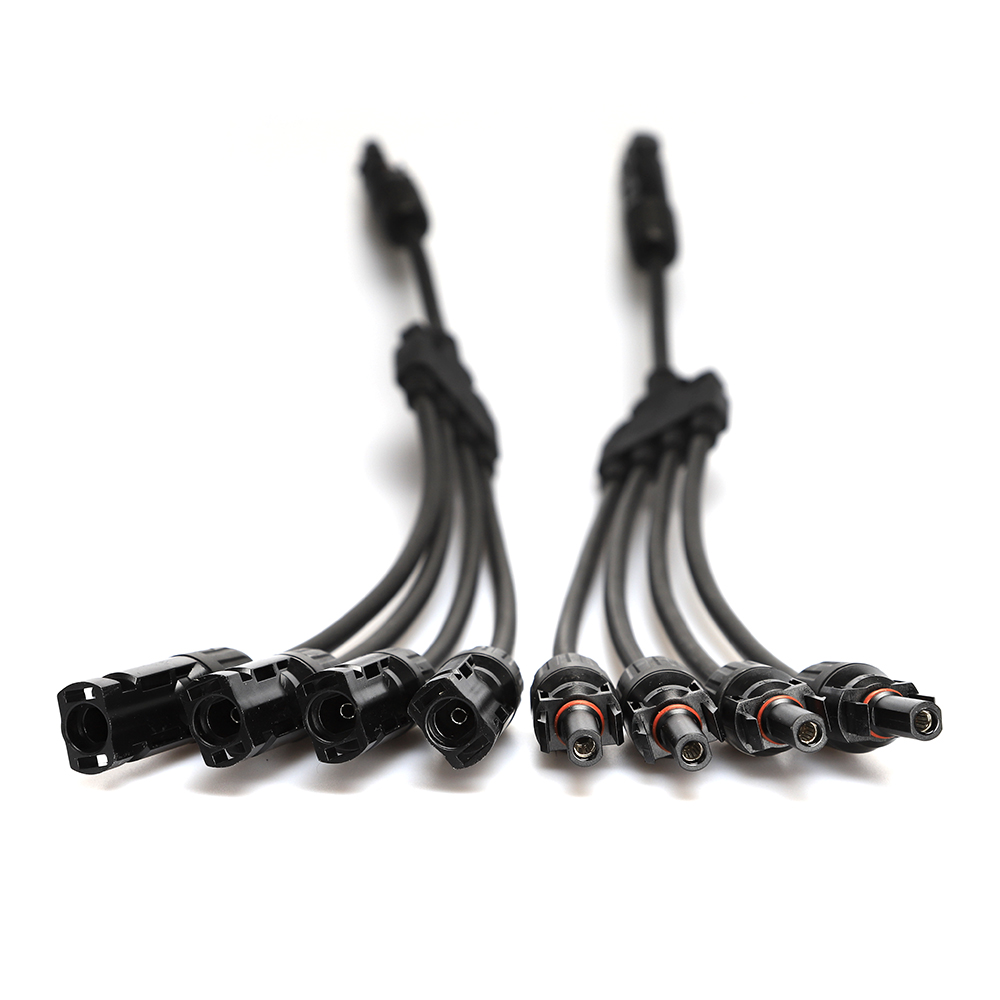

MC4 Y Branch Solar Panel Connector
MC4 Y branch connectors allow parallel connection of solar panels. They provide a safe and reliable way to connect solar panels in parallel, increasing the current output of the solar array.
Technical Specifications
Product Overview
MC4 Y Branch Solar Connector
The MC4 Y branch connector is an essential component for solar photovoltaic systems, designed to simplify parallel wiring configurations. By allowing multiple panels to be connected into a single cable, these connectors help increase the current output of solar arrays. Engineered for durability, they feature high-strength materials, a secure self-locking mechanism, and robust weatherproofing to ensure reliable, long-term performance in outdoor environments.
Technical Specifications
Technical Data
| Feature | Specification |
|---|---|
| Connector Type | MC4 Y-Branch |

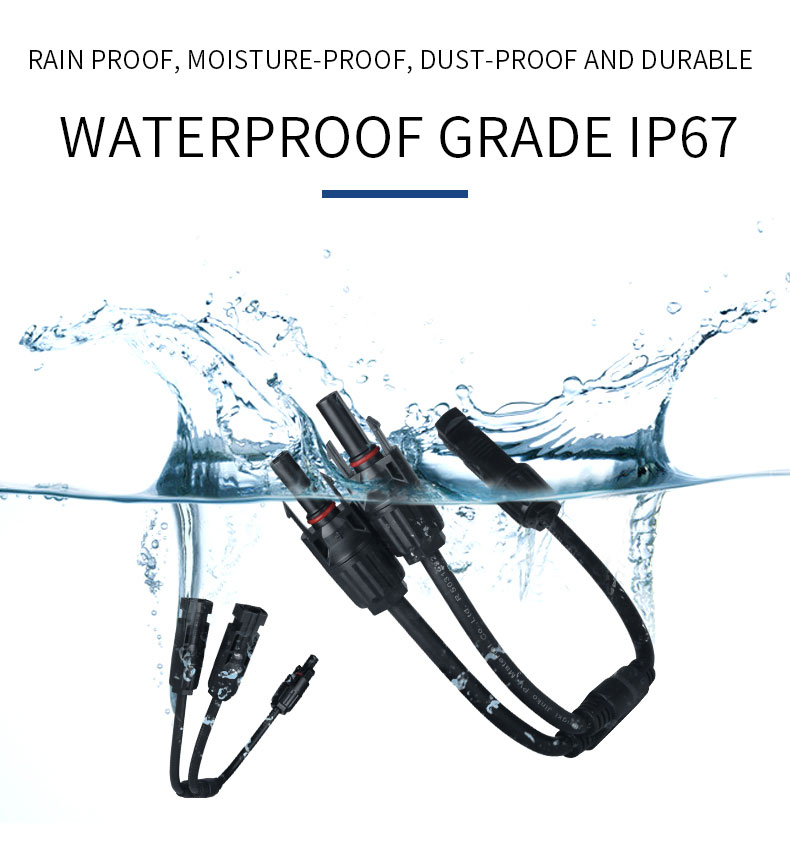

| Ingress Protection | IP67 |

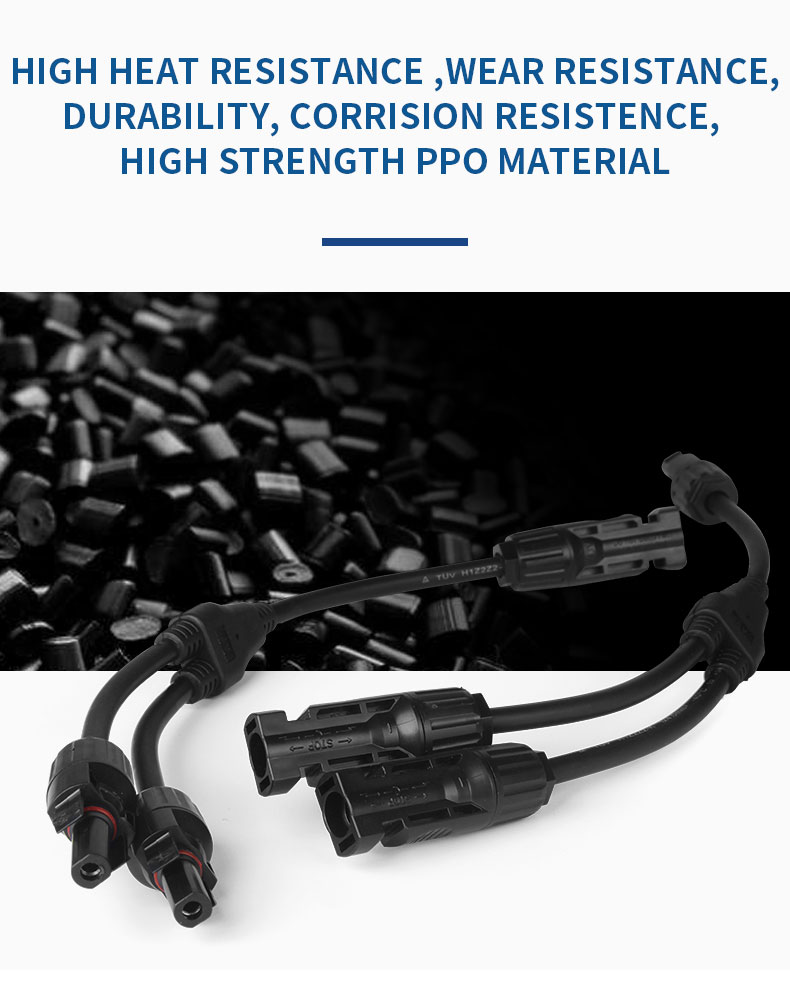

| Material | High-Strength PPO |
| Safety Mechanism | Self-locking |
Key Features
Key Capabilities
WaterproofDustproofAnti-vibrationHeat ResistantCorrosion ResistantQuick Connection
Mechanical & Safety
Safety & Design Highlights
- Double electric shock-free protection for load closure

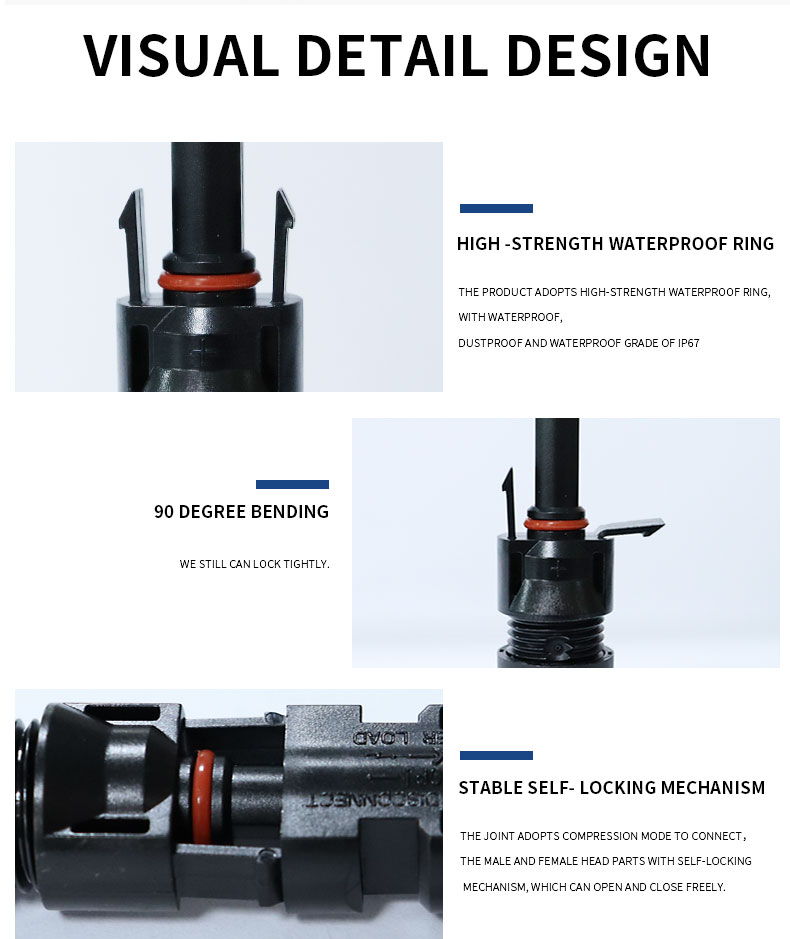

- 90-degree bending capability while maintaining tight lock
- Compression mode connection for secure male/female assembly
- Fire-resistant construction
- Compatible with standard MC4 solar arrays
