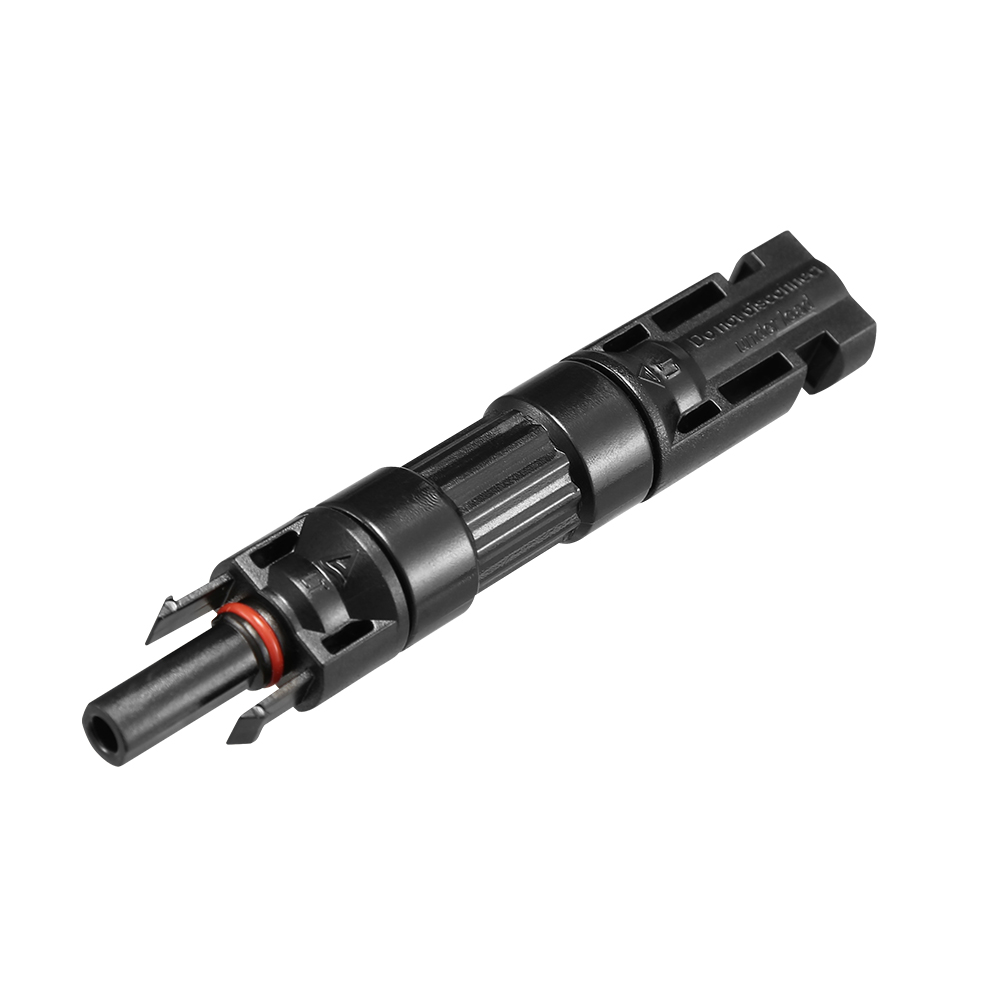

MC4 Solar Panel Connector with Diode
MC4 solar diode connectors are designed for solar panel connections in photovoltaic systems. They protect against reverse current from solar panels and inverters.
Technical Specifications
Product Overview

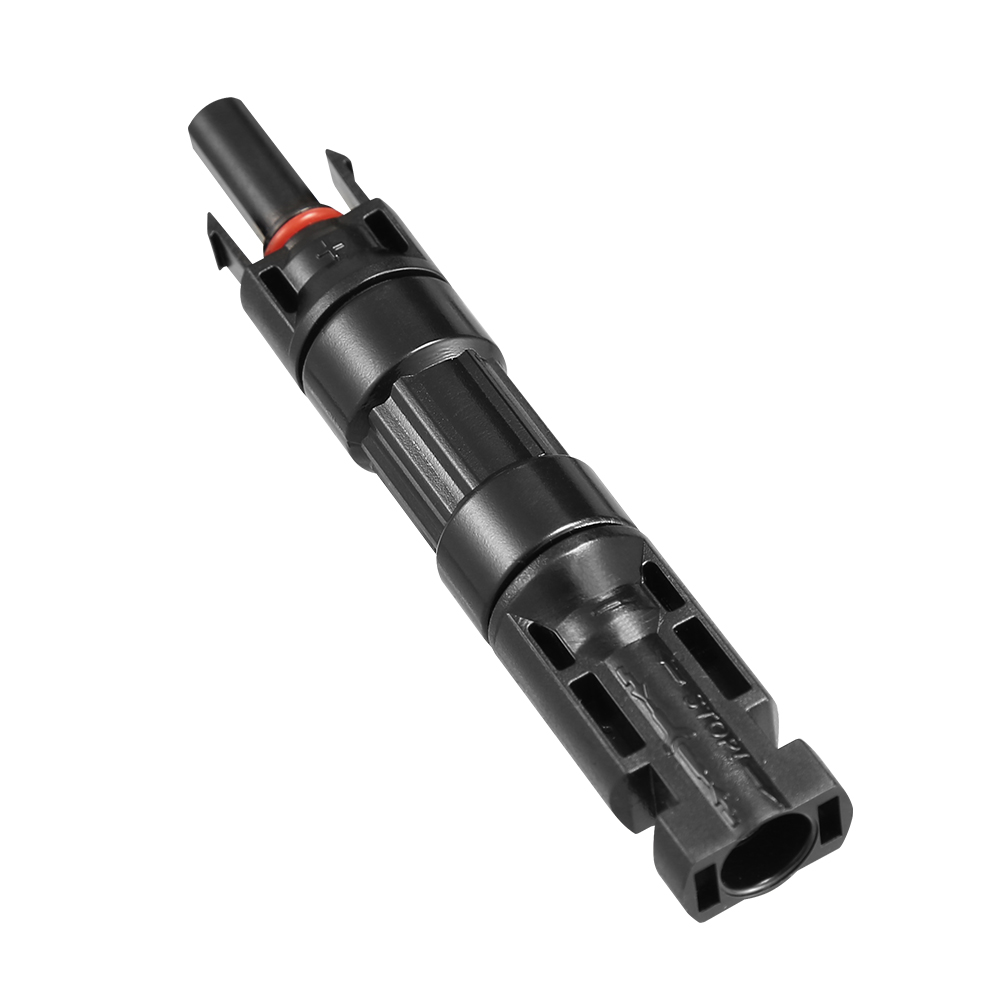

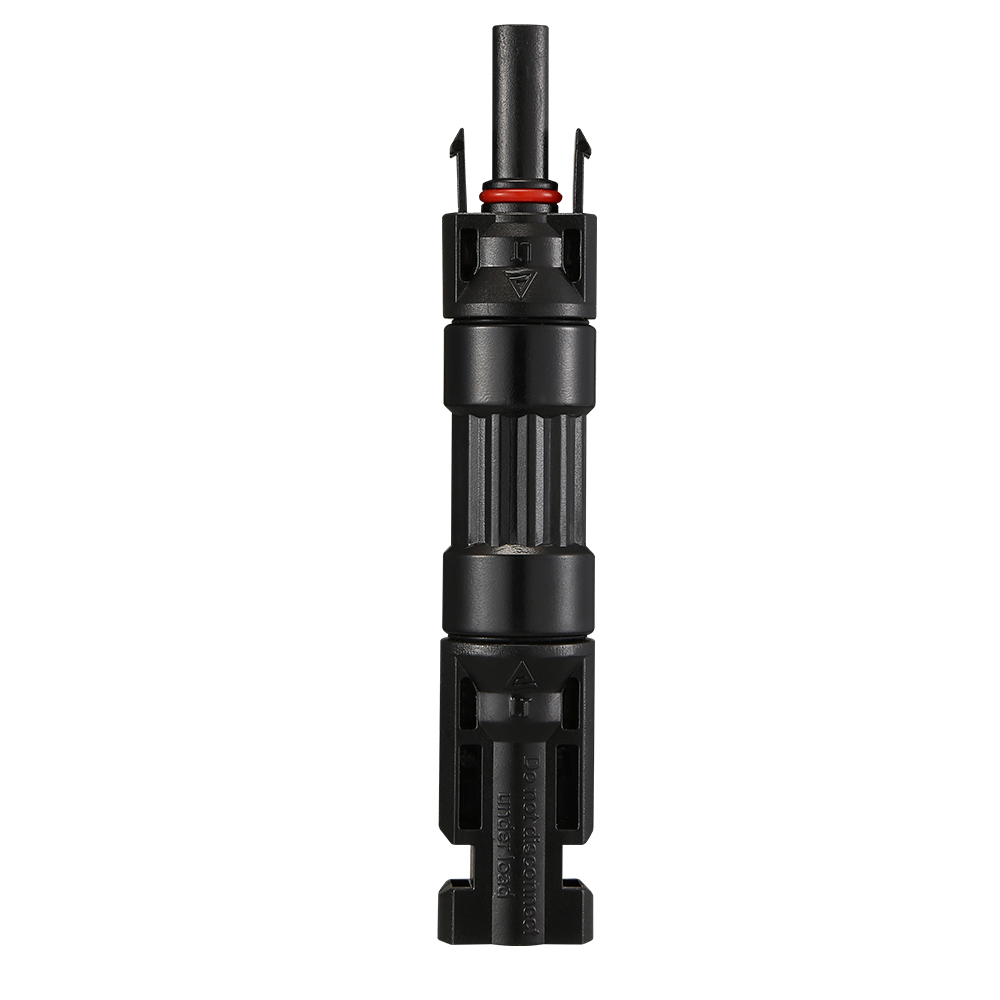

MC4 Solar Diode Connector
This MC4 Solar Diode Connector is designed for Photovoltaic (PV) systems, specifically functioning as a prevent-reverse diode module. It protects your solar panels and inverters by preventing reverse current return, ensuring system safety and longevity. Engineered for durability, it features UV resistance and an IP67 waterproof rating, making it suitable for outdoor use for up to 5 years.
Technical Specifications
Waterproof Rating
IP67
Outdoor Durability
5 years
Service Life
- Compatible Cable Sizes
- 2.5mm²4mm²6mm²
Features
Key Advantages
- Integrated reverse-current protection diode
- Fast and reliable connection mechanism
- UV resistant housing
- Compatible with industry-standard MC4 connectors
