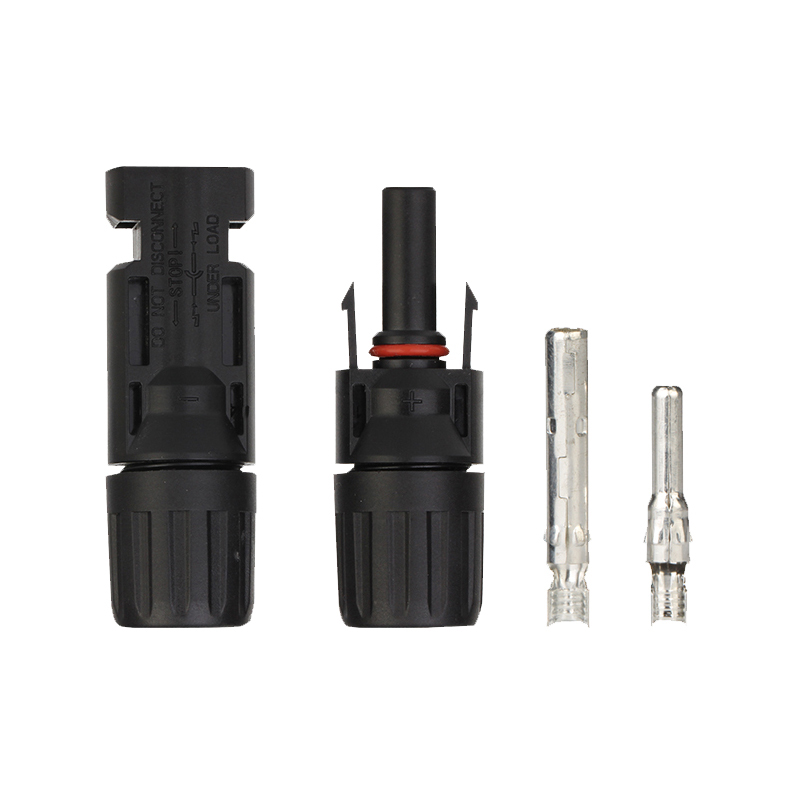

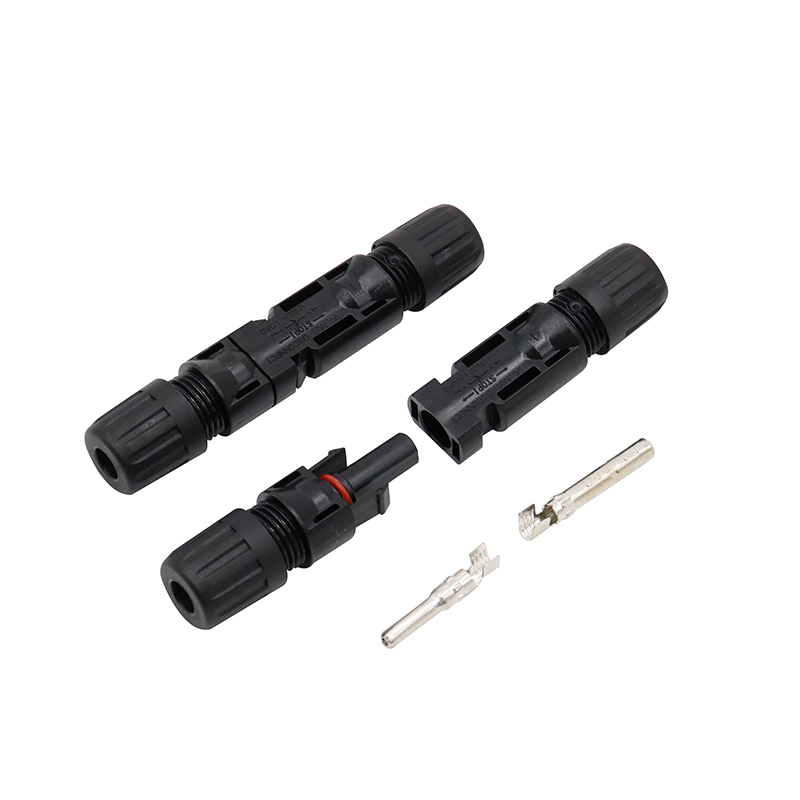

MC4 Solar Cable Connector - 30A, 1000V/1500V, IP67 Waterproof
The MC4 connector is a single contact electrical connector often used to connect solar panels. It is rated IP67 waterproof and compatible with 1000V and 1500V DC systems.
Technical Specifications
Product Overview
Standard MC4 Solar Connectivity
The MC4 connector is the industry standard for building photovoltaic panel arrays, featuring a 4mm multi-contact design. These connectors utilize a secure notch interlock system to prevent accidental disconnection and ensure a stable electrical bond. Designed for durability in outdoor environments, they are a reliable solution for connecting solar panels in both 1000V and 1500V DC systems.
Electrical Performance
Key Electrical Ratings
30 A
Rated Current
1,500 V
Max DC Voltage
- Voltage Compatibility
- 1000V DC1500V DC
Protection & Durability

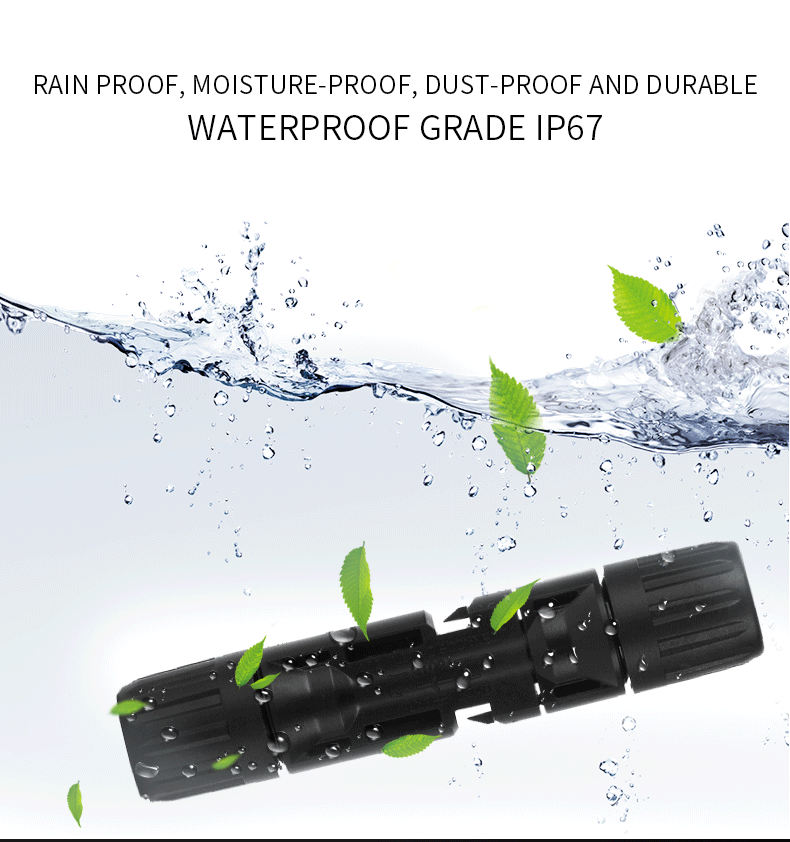

Waterproof Rating
IP67
Environmental Resistance
- Rain proof
- Moisture-proof
- Dust-proof
- Corrosion resistance
- High heat resistance
- Wear resistance
Material Specifications

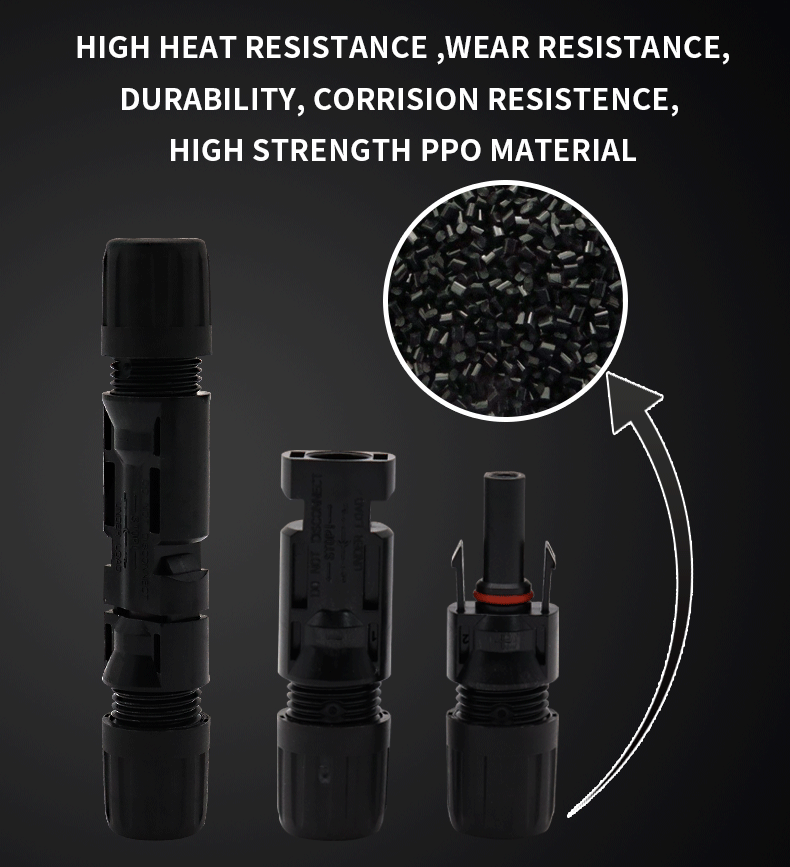

- Housing Material
- High-strength PPO material

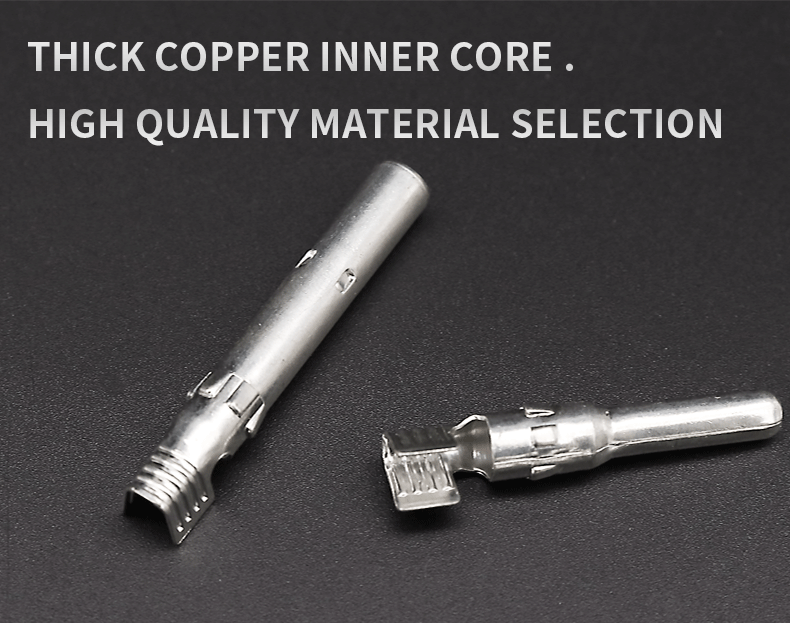

- Contact Material
- Thick copper inner core
Safety & Installation

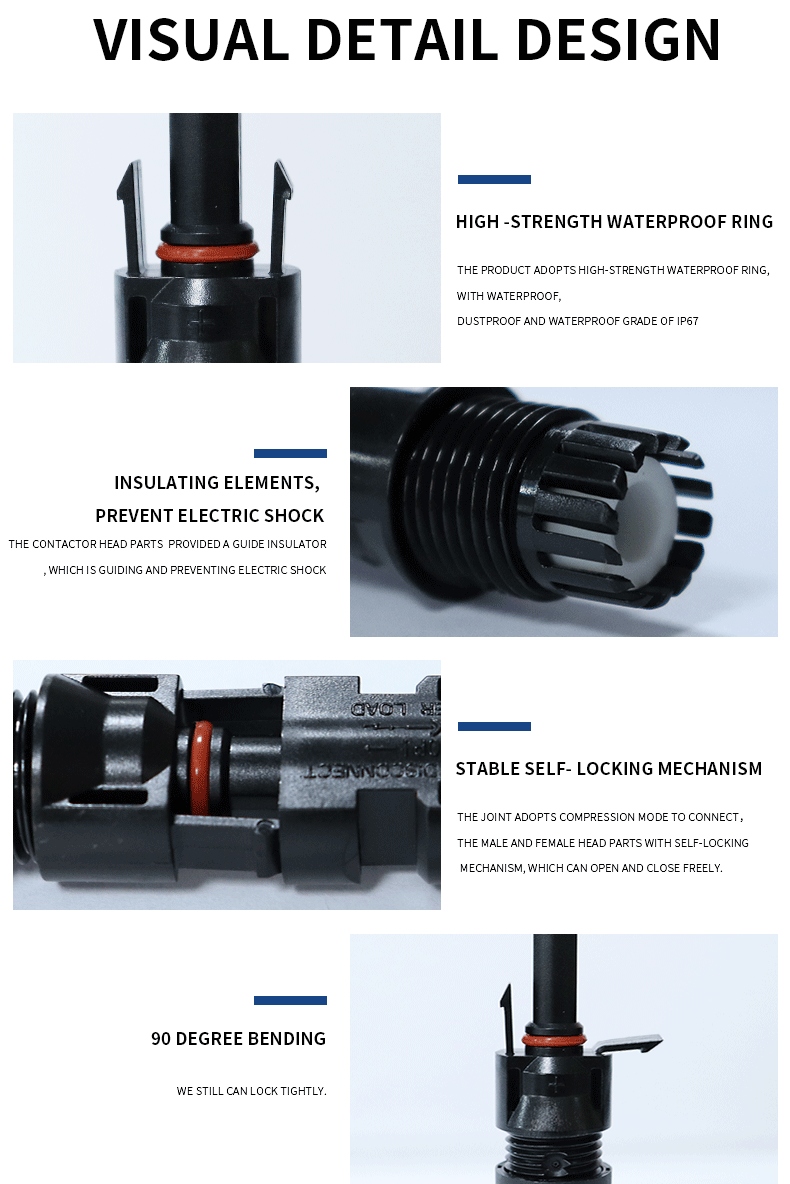

Safety Features
- Double electric shock-free protection
- Stable self-locking mechanism
- Anti-vibration function
- Guide insulator to prevent shock
- Mechanical Flexibility
- Supports 90-degree bending while maintaining tight lock
Compliance
- Certifications
- CE
