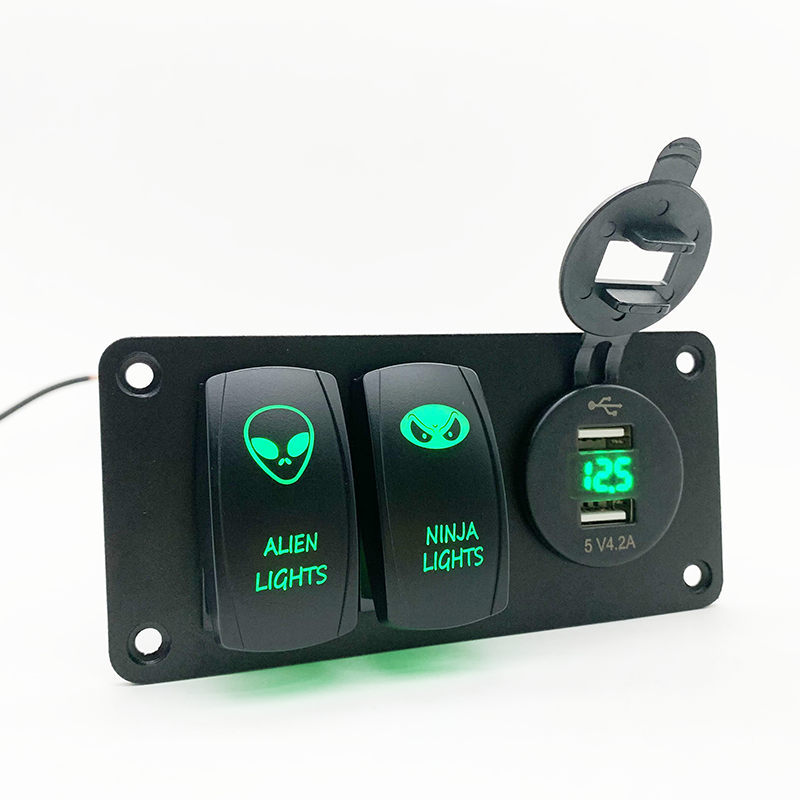

Marine Rocker Switch Panel with Voltmeter and Dual USB Charger
This marine rocker switch panel features dual USB charging ports and a voltmeter. It is designed for installation in boats, yachts, RVs and other vehicles using a 12V-24V power source.
Technical Specifications
Overview
Versatile Marine Control Solution
The HF-8M-R is a compact 2-gang rocker switch panel designed for demanding marine and automotive environments. It integrates dual illuminated switches with a real-time digital voltmeter and a high-output 4.2A dual USB charger, providing a complete power management hub. Built from flame-retardant, high-temperature resistant materials, it ensures reliable performance and safety for boats, yachts, RVs, and heavy-duty vehicles.
Technical Specifications
Rated Current
20 A
Rating @ 12V
10 A
Rating @ 24V
4.2 A
Total USB Output
- Input Voltage
- DC 12V/24V
- USB Output Voltage
- 5 V
- Voltmeter Test Range
- 6-30V
- Maximum Power
- 240 W
Physical Properties
Dimensions & Weight
| Property | Value |
|---|---|
| Product Size | 12 x 6 x 7.5 cm |
| Opening Size | 9.5 x 4 cm |
| Net Weight | 156g |
| Gross Weight | 188g |
- Construction Materials
- ABSNylonAluminum PlatePCPBTFlame Retardant
Durability & Safety
Protection Level
IP65 Waterproof
- Working Temperature
- -25℃ to 80℃
- Mechanical Life
- 50000 Cycles
- Compliance
- CEROHS
Application
Compatible Vehicles
- Automobiles
- Marine Ships
- Yachts
- RVs
- Buses
Device Compatibility
- Mobile Phones
- Tablets
- Navigation Systems
- GPS Devices
- Included Accessories
- Four self-tapping screws
