Technical Specifications
Overview
High-Efficiency Marine Power Generation

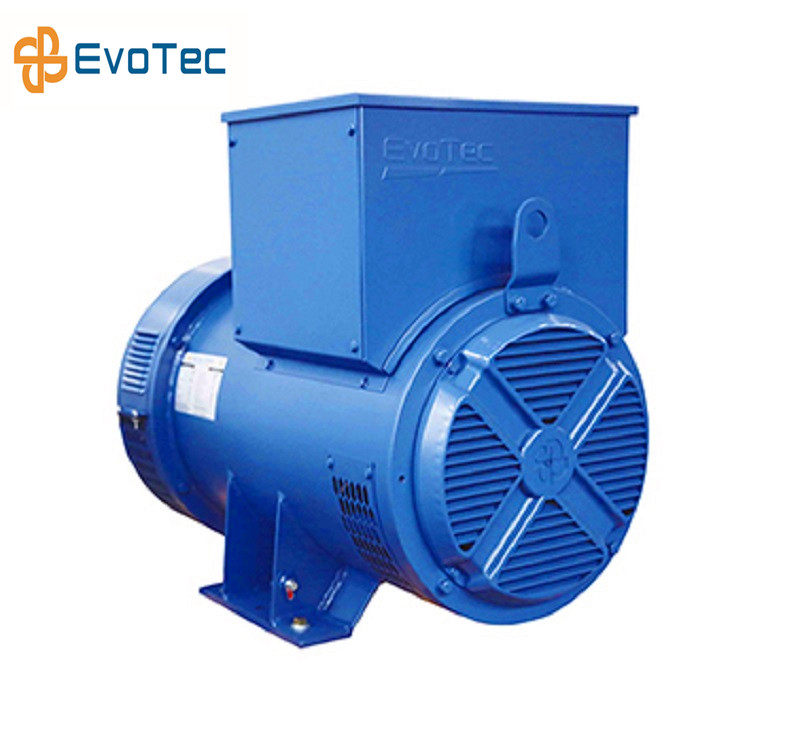

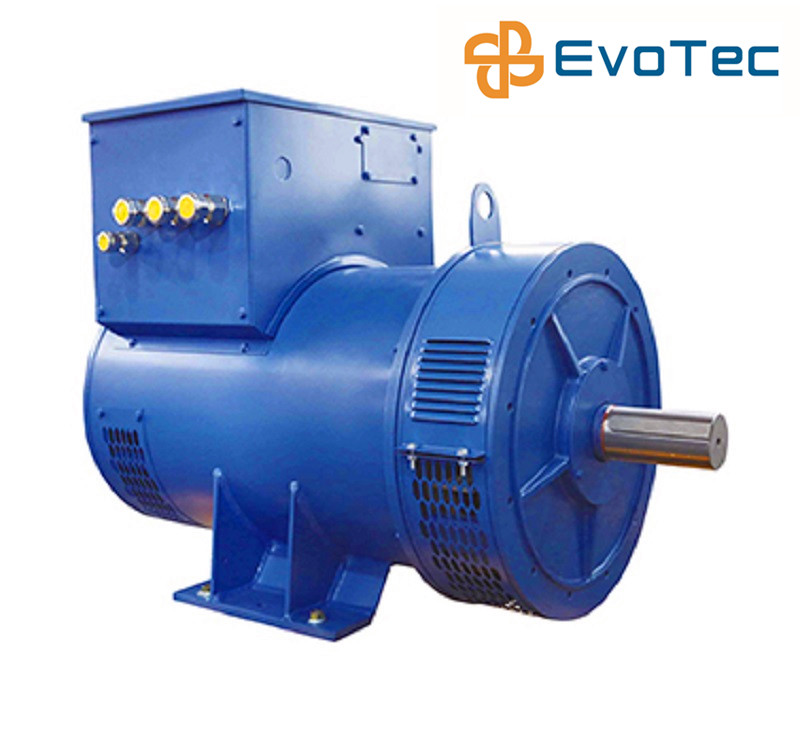

This marine power generator is engineered for reliable, continuous duty in demanding maritime environments. Featuring a patented high-efficiency winding design and an advanced AVR system, it delivers superior power output with optimized fuel consumption. The robust construction includes a double-bearing design and enhanced ventilation, ensuring stable operation and long service life even in harsh conditions.
Performance Metrics
Key Performance Indicators
1,500 rpm
Speed (50Hz)
1,800 rpm
Speed (60Hz)
0.8
Power Factor
4,000 m.a.s.l
Max Altitude
Electrical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 400V / 480V |
| Frequency | 50Hz / 60Hz |
| Voltage Regulation | +/- 1% |
| Insulation Class | H |
| Winding Pitch | 2/3 |
Mechanical & Environmental
Degree of Protection
IP23IP55
- Construction Type
- Double Bearing
- Ambient Temperature Range
- 27°C to 60°C
Advanced Features
AVR Features
- Frequency compensation (low frequency protection)
- Solid state excitation
- EMI filtering
- Multi-voltage selection (110V, 220V, 440V)
- Parallel operation support
- Rotor & Stator Technology
- Patented Rotary LaminationEnameled Flat Copper WireInsulation StrengtheningOptimized Heat Dissipation
