Technical Specifications
Product Overview
Precision Liquid Level Monitoring

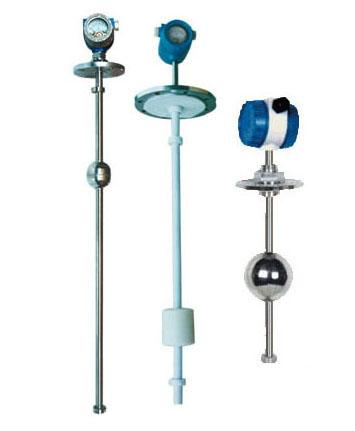

This marine-grade float level controller utilizes magnetic coupling and reed switch technology to provide reliable, continuous liquid level measurement. It converts resistance changes into a standard 4-20mA current signal, enabling remote monitoring and automatic control. Designed for versatility, it is suitable for diverse industrial environments including chemical engineering, water treatment, and marine storage systems.
Key Performance Metrics
Measuring Range
6,000 mm
Max Range
Measurement Accuracy
10 mm
Accuracy
- Output Signal
- 4~20mA
- Power Supply
- DC24V
Operating Conditions
- Temperature Range
- -40 to 100 °C
- Max Working Pressure
- 1.6 MPa
- Minimum Medium Density
- 0.6 g/cm3
Technical Specifications
Protection Rating
IP65
- Wetted Materials
- 1Cr18Ni9TiSUS316L316PVCPTFE
- Load Impedance
- 750 Ω
- Power Consumption
- 0.5 W
Installation & Compatibility
Installation Types
- Top loading
- Side installation
- Flange Standard
- JB/T82-59
- Outlet Connection
- M20X1.5 (Inner thread)
Applications
- Suitable Industries
- RefiningChemical EngineeringPapermakingFood ProcessingPharmacySewage TreatmentMarine
