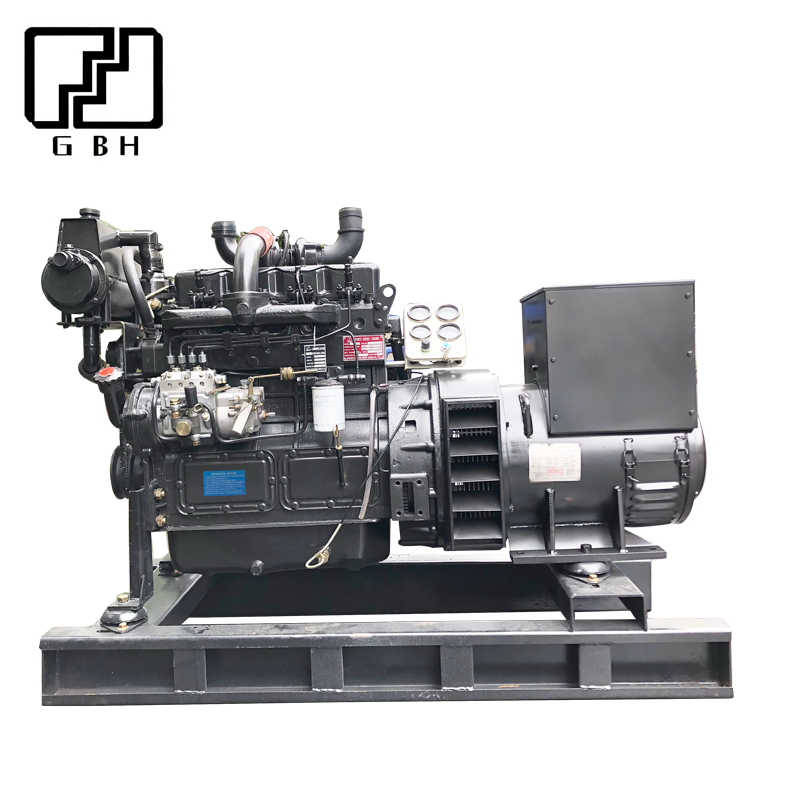

Marine Diesel Generator Water Cooled
This water-cooled marine diesel generator provides reliable power for marine applications. It is available in 30kW and 50kW power outputs and comes with CCS certification.
Technical Specifications
Overview
Marine Diesel Generator Overview
This water-cooled marine diesel generator is designed for reliable power generation in demanding maritime environments. Featuring a brushless alternator and a heavy-duty steel base frame, it ensures stable and consistent power supply for onboard electrical systems. The unit is built to withstand harsh conditions with vibration dampeners and industrial-grade filtration systems, offering a dependable solution for various marine applications.
Technical Specifications
Model Performance Data
| Model | Standby Power (kVA) | Engine Model | Speed (r/min) |
|---|---|---|---|
| HRC-20CF | 27.5 | ZH4100D | 1,500 |
| HRC-24CF | 33 | ZH4100D | 1,500 |
| HRC-30CF | 41.25 | ZH4100ZD | 1,500 |
| HRC-40CF | 55 | R4105ID | 1,500 |
| HRC-50CF | 68.75 | R4105ZD | 1,500 |
Alternator Details
21 IP
IP Rating
1 Single
Bearing Type
- Insulation Class
- H
Standard Components
- Included Equipment
- Brushless AlternatorSteel Base FrameIndustrial SilencerVibration DamperAir FilterOil FilterFuel Filter24V Battery ChargerTool Kit
Optional Upgrades
Optional Accessories
- Automatic Transfer Switch
- ABB/Schneider Breaker
- Water Heater
- Lub-oil Heater
- Fuel Level Sensor
- Low Coolant Level Sensor
- Water-Fuel Separator
- External Daily Fuel Tank
- Controller Upgrades (Deepsea, DEIF, ComAP, Woodward)
Operational Conditions
Radiator Cooling Capacity
40 °C
Open Type
50 °C
Soundproof Type
