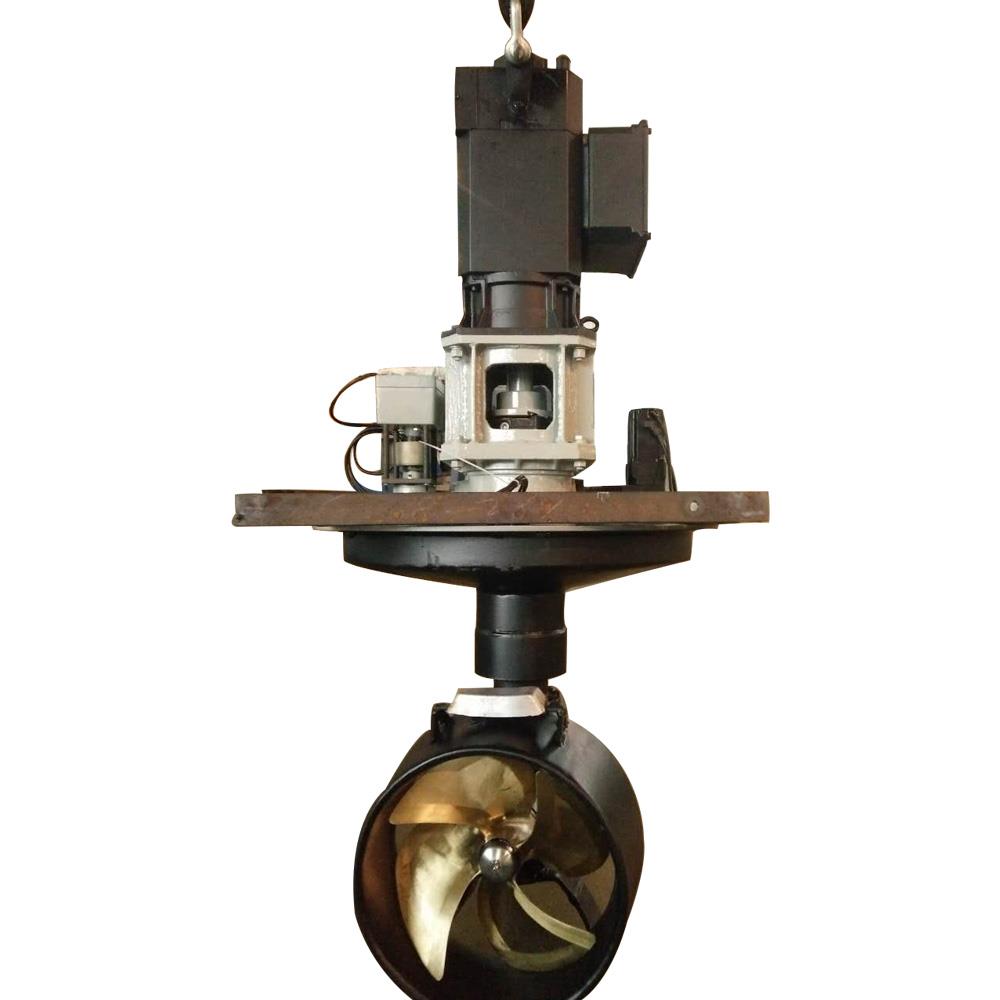

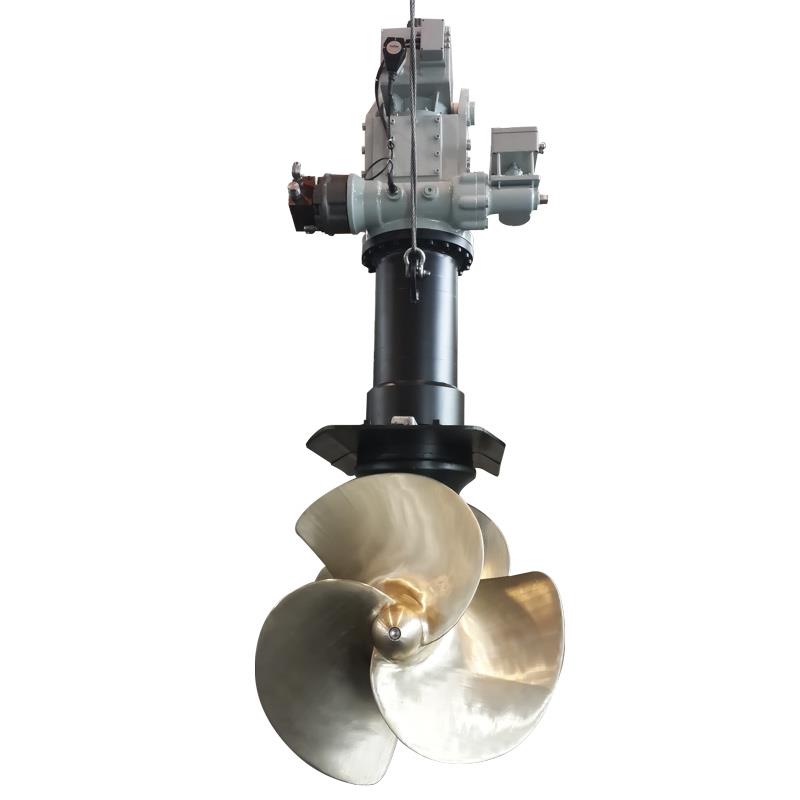

Marine Azimuth Thruster
This marine azimuth thruster is designed for propulsion and steering of vessels. The propeller can steer in any direction, providing enhanced maneuverability.
Technical Specifications
Overview
High-Performance Marine Propulsion
The Marine Azimuth Thruster is a compact and reliable propulsion solution designed to replace conventional rudder systems by providing both steering and thrust in a single unit. Capable of 360° steering above water level, it offers exceptional maneuverability for a wide range of vessels including tugboats, drilling platforms, and ocean engineering ships. With flexible drive options including electric, diesel, or hydraulic motors, this thruster is engineered to meet the rigorous demands of modern maritime operations.
Key Performance Metrics
Featured Capabilities
360 °
Steering Angle
3.3 m
Max Propeller Diameter
4,500 kW
Max Input Power
Technical Configuration
Drive Configurations
- Z-drive configuration (Direct diesel engine drive)
- L-drive configuration (Electric or hydraulic drive from overhead)
- Retractable type available
- Fixed or varied pitch options
- Compatible Power Sources
- Electric MotorDiesel EngineHydraulic Motor

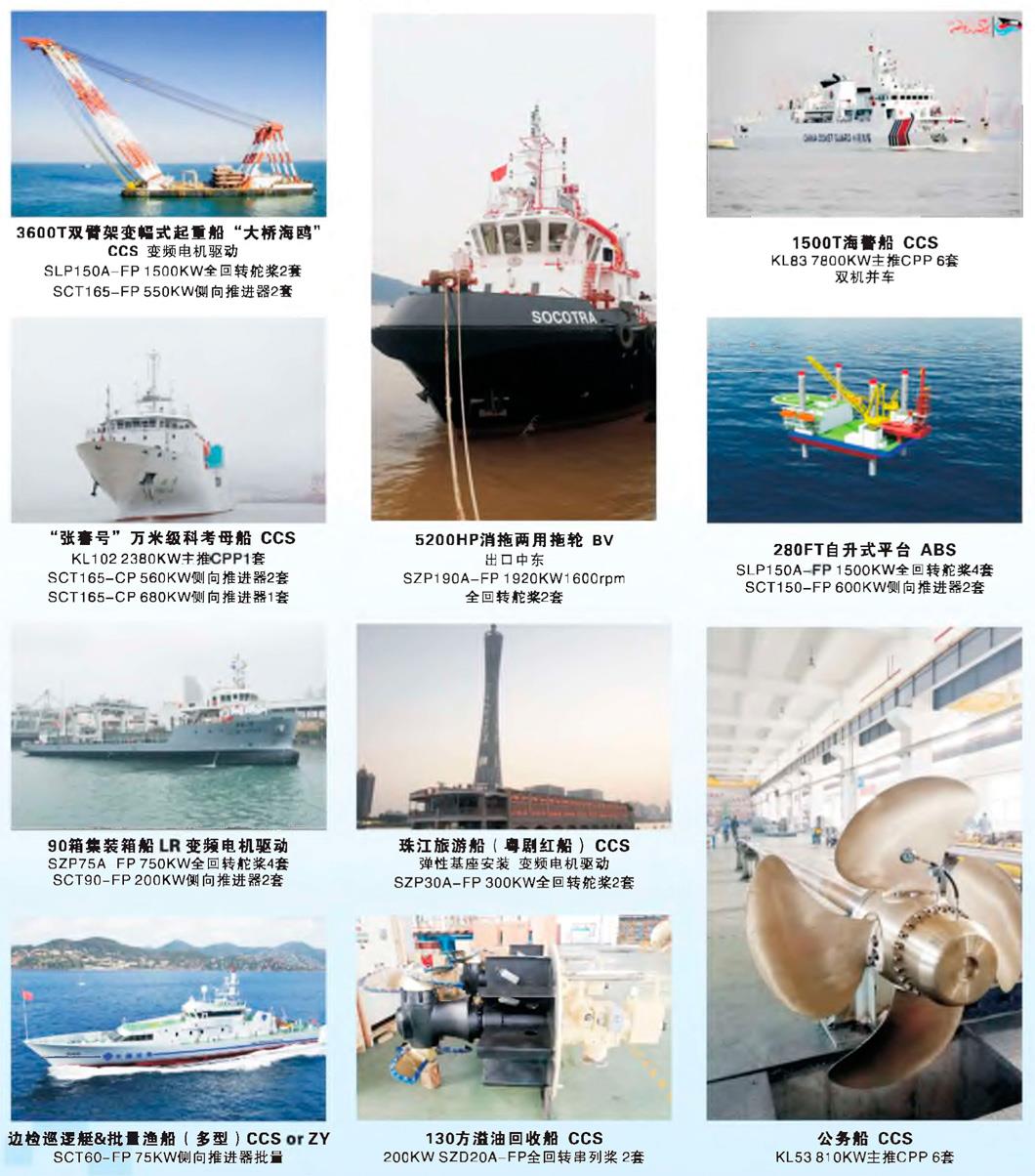

Applications
Suitable Vessel Types
- Large tugboats and harbor tugs
- Drilling platforms
- Ocean engineering vessels
- FPSO (Floating Production Storage and Offloading)
- Coast guard and patrol boats
- Oil spill recovery vessels
Compliance & Certification
IACS Certifications
CCSABSBVLRZY
Technical Data
SZP Series Model Specifications
| Model Type | Max Input Power (kW) | Max Input RPM | Approx. Weight (kg) |
|---|---|---|---|
| SZP 1.5A/B | 15 | 1000-2400 | 50 |
| SZP 16A/B | 160 | 900-2200 | 620 |
| SZP 75A/B | 750 | 600-1800 | 4,950 |
| SZP 150A/B | 1,500 | 600-1800 | 20,000 |
| SZP 300A/B | 3,000 | 550-1600 | 53,000 |
| SZP 450A/B | 4,500 | 550-1600 | 85,000 |
Manufacturing & Quality
Production Facilities
- 18-meter lathes for main propellers
- CNC machining centers
- 80-ton maximum sling load capacity
- Ultrasonic and magnetic particle testing
- Dedicated test stands for rudder and tunnel thrusters
