Manual Sheet Metal Punching Machine

This manual sheet metal punching machine is designed for creating holes in metal sheets. It features a lever-action mechanism and interchangeable punches and dies for different hole sizes.

Request a Quote Download PDFPDF

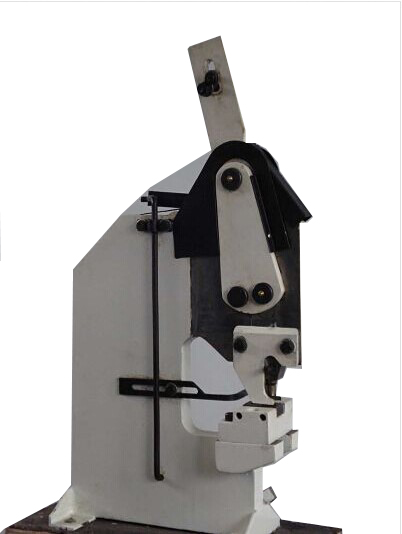

sheet metal hand punching machine made in China - Image 1

Technical Specifications

Product Overview

Manual Sheet Metal Punching Machine

This manually operated punching machine is designed for reliable and efficient hole punching in various sheet metal applications. It features a robust, durable frame and an optimized lever-action mechanism that provides consistent punching power with ease of operation. Perfectly suited for low-volume production, prototyping, and on-site fabrication, it offers a cost-effective solution for small to medium-scale metalworking tasks.

Technical Specifications

Model: PY-72
Hole Diameter Range: 5mm - 35mm
Maximum Material Thickness: 4 mm

Dimensions and Weight

Net Weight: 72 kg
Gross Weight: 82 kg
Packing Dimensions: 520 x 220 x 860 mm

Key Features

Highlights: Easy OperationRobust FrameLever-Action MechanismAdjustable Workpiece HolderHardened Steel Tooling
