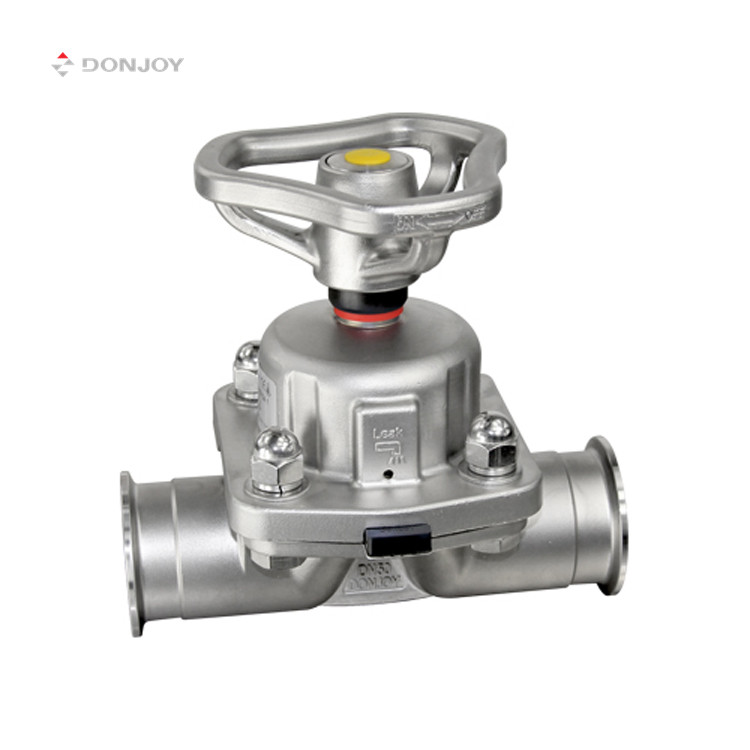

Manual Sanitary Diaphragm Valve
This manual diaphragm valve is designed for use in sanitary applications requiring precise flow control. Its diaphragm design ensures leak-tight shutoff, making it suitable for a wide range of fluids and temperatures.
Technical Specifications
Overview
Sanitary Diaphragm Valve Overview
Designed for demanding sanitary and aseptic processes, this diaphragm valve provides reliable fluid control and on/off functionality. Its unique design ensures no path to the outside environment, making it ideal for pharmaceutical and hygienic applications. The mechanism prevents diaphragm compression, ensuring long-term durability and consistent sealing performance.
Technical Specifications
- Operating Pressure
- 10 bar
- Temperature Range
- -20°C to +150°C
- Available Sizes
- 1 inch4 inchDN25DN100
Materials & Construction
Diaphragm Material Options
- EPDM + PTFE (double layer)
- EPDM
- Silicon
- FPM (Viton)
- Body Material
- ASTM 316L1.44041.4435 NB2 (Fe<0.5%)
Configuration
Connection Standards
ClampWeldingThread3ABPEDINSMSIDFISO
Body Structure Types
- Straight through
- Three-way
- U-shaped three-way
- Tank bottom valve
- Multi-channel diaphragm valve
Compliance
Certifications
- 3A-54-02/1580
- PED 97/23 EC
- FDA 177.2600
