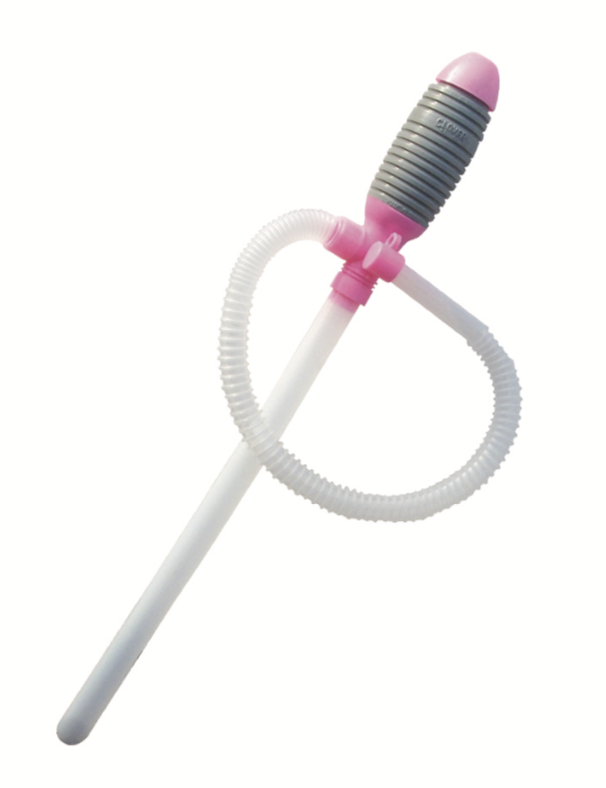

Manual Liquid Transfer Siphon Pump
This manual siphon pump is designed for the easy and efficient transfer of liquids. Its plastic construction includes a rigid intake tube and flexible discharge hose for controlled flow.
Technical Specifications
Overview
Manual Liquid Transfer Siphon Pump
This manual liquid transfer siphon pump is a versatile and efficient tool designed for the safe transfer of various liquids, including fuel, water, and non-corrosive chemicals. Constructed from durable, non-toxic plastic materials, it provides a reliable solution for emergency refueling or fluid management in automotive and industrial settings. With multiple models available, this pump series accommodates different flow rate requirements and container depths, ensuring compatibility with a wide range of operational needs.
Application & Material
Construction Material
PEPPNon-toxic Plastic
- Compatible Liquids
- GasolineDieselKeroseneLight OilsWaterChemical InsecticidesTolueneLight SolventsAlcoholic Drinks
Technical Specifications

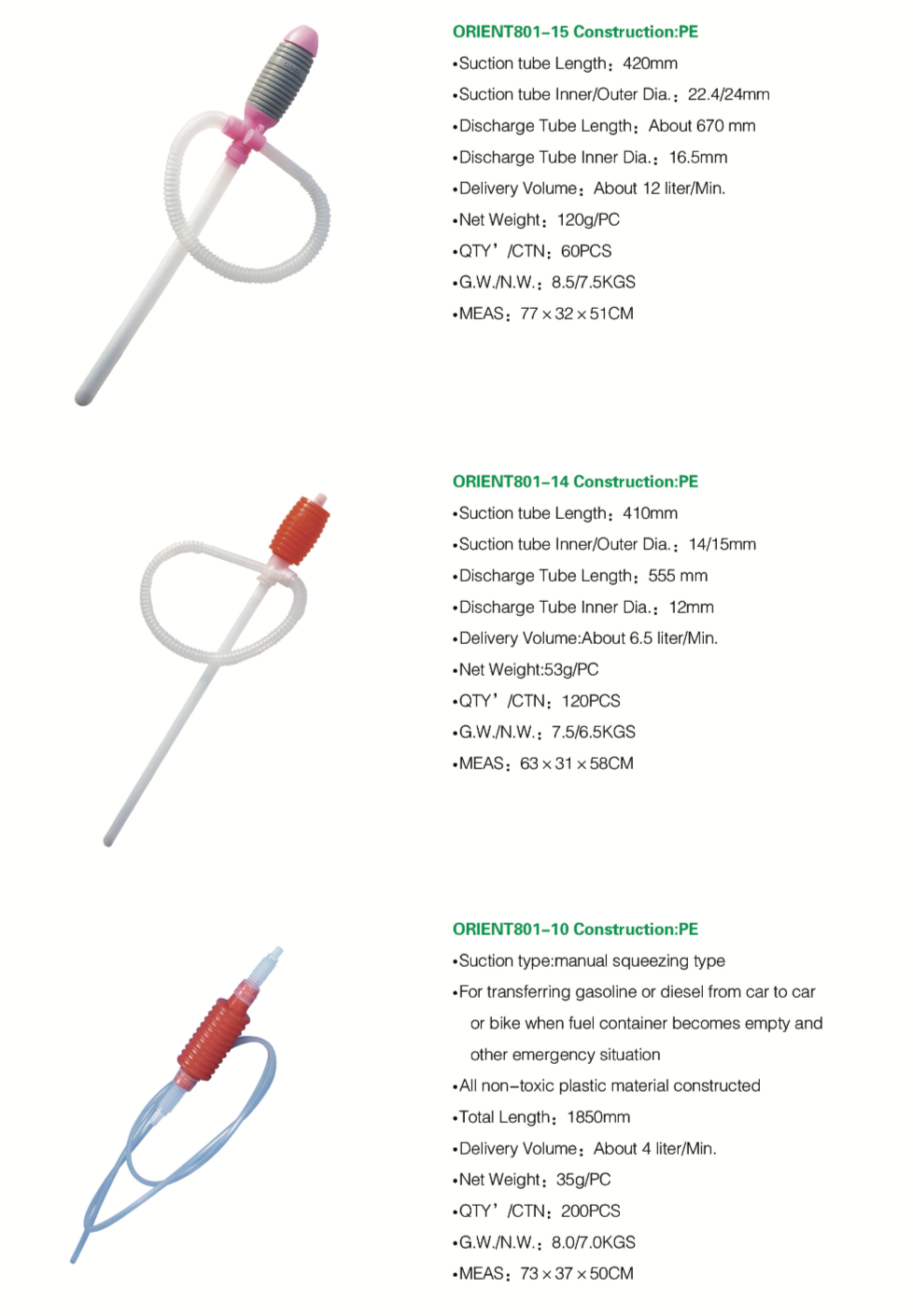

Model Specifications
| Model | Flow Rate (L/min) | Net Weight (g) | Qty/Ctn |
|---|---|---|---|
| ORIENT801-10 | 4 | 35 | 200 |
| ORIENT801-14 | 6.5 | 53 | 120 |
| ORIENT801-15 | 12 | 120 | 60 |
| ORIENT801-23 | 17.5 | 235 | 40 |
| ORIENT801-25 | 19 | 355 | 30 |
| ORIENT801-25H | 21 | 387 | 36 |
High-Capacity Performance
21 L/min
Max Delivery Volume
1,400 mm
Max Discharge Tube Length
