Technical Specifications
Product Overview

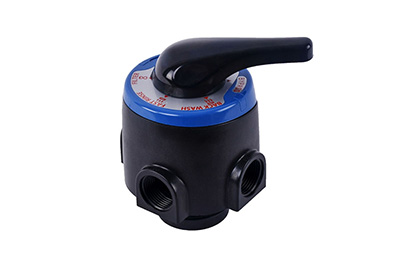

Manual Filter Valve F56K
This manual filter valve is an upgraded version of the established F56A model, engineered for reliable water treatment control. It supports essential operational modes including service, fast rinse, and backwash, and can function as a bypass valve. Designed for versatility, it is an ideal component for activated carbon and sand filtration systems.
Technical Specifications
Flow Rate
4.5 m3/h
Flow Rate
Operating Parameters
| Parameter | Value |
|---|---|
| Water Pressure | 0.15-0.6 Mpa |
| Water Temperature | 5-50 °C |
| Water Turbidity | <20 FTU |
Installation & Compatibility
Connection Ports
- Inlet/Outlet: 1" Female
- Drain: 1" Female
- Mounting Base: 2.5"-8NPSM
- Riser Pipe: 1.05" OD
- Compatible Filter Tanks
- 6" - 12"
Design & Features
- Model
- F56K (51204K)
- Handwheel Material
- Plastic
- Mount Type
- Top mount
- Supported Applications
- Activated carbon filterSand filter
- Compatible Filter Media
- Quartz sandActivated carbon
