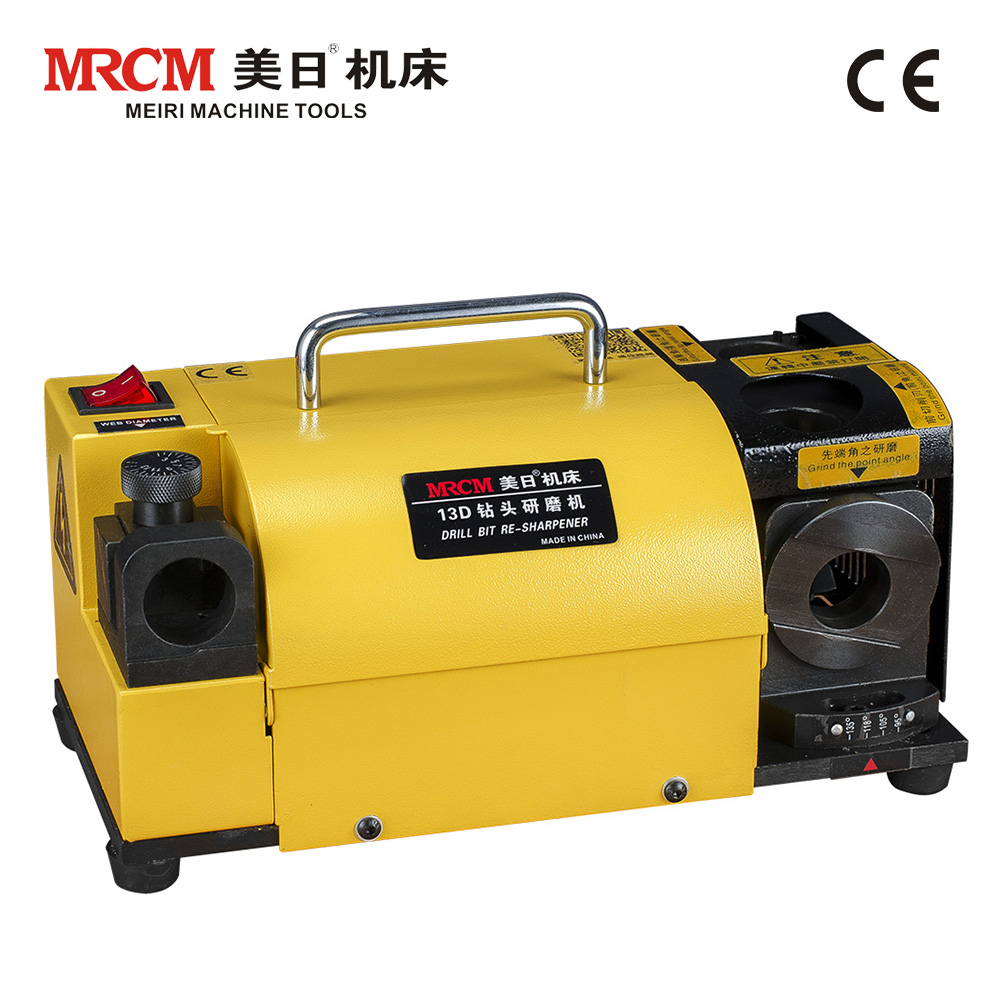

Manual Drill Bit Sharpener Grinder
This manual drill bit sharpener is designed for accurate and rapid grinding of drill bits. It features a diamond grinding wheel and an electrically controlled DC motor for stable frequency and strong horsepower.
Technical Specifications
Overview
High-Precision Drill Bit Sharpener
This manual drill bit sharpener is designed to provide rapid, accurate grinding for various drill bit sizes. Engineered for ease of use, it allows operators without specialized grinding experience to achieve professional results efficiently. With a powerful DC motor and durable diamond grinding wheel, this machine ensures consistent performance and extends the lifespan of your cutting tools, making it an economical choice for workshops and repair facilities.
Technical Specifications
- Grinding Range
- Φ2 - Φ13 (up to Φ15)

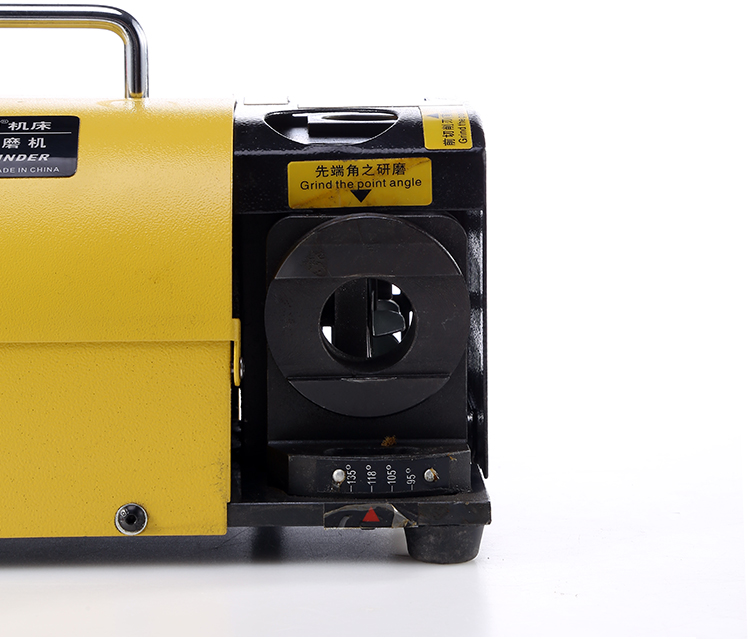

- Point Angle
- 95° to 135°
- Motor Power
- 120 W
- Speed
- 4400 rpm
- Power Supply
- AC 220V
Physical Attributes
- Dimensions
- 32 x 18 x 19 cm
- Weight
- 10 kg
Equipment

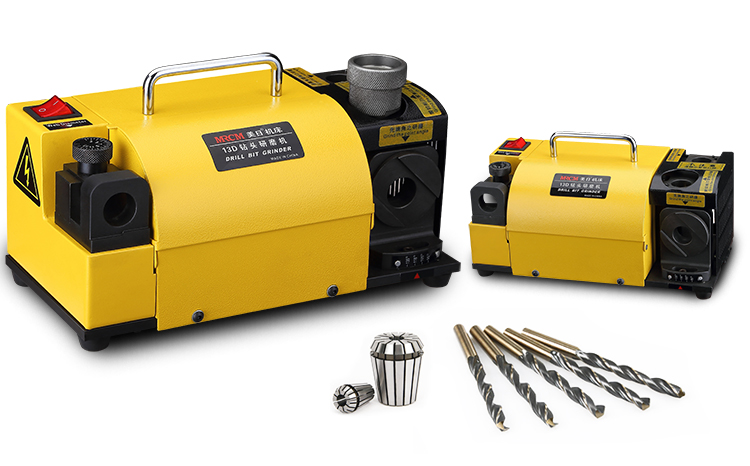

Standard Equipment
- CBN Grinding wheel (for HSS)
- 11 Collets (Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13)
- Collet chuck (Φ2-Φ14)
Optional Equipment
- SD Grinding wheel (for Carbide)
- Additional Collets (Φ2, Φ2.5, Φ3.5, Φ4.5, Φ5.5, Φ14, Φ15)
- Collet chuck (Φ15)
Key Features
Performance Highlights
10 seconds
Grinding Time
- Key Capabilities
- Rapid GrindingEasy OperationDiamond Grinding WheelAdjustable Point SizeDurable DC Motor
