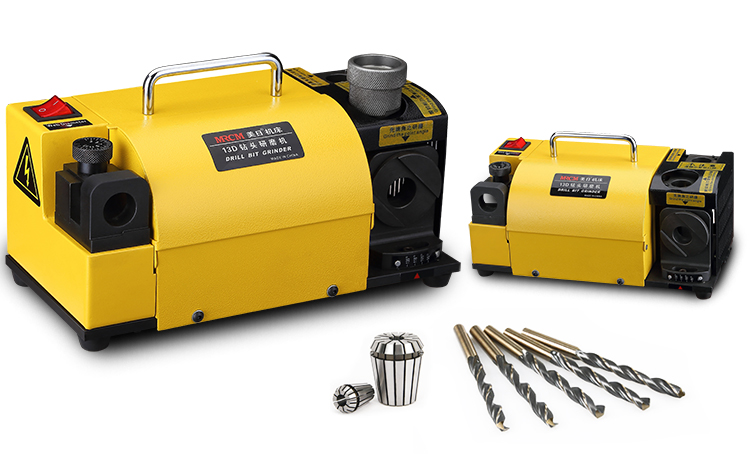

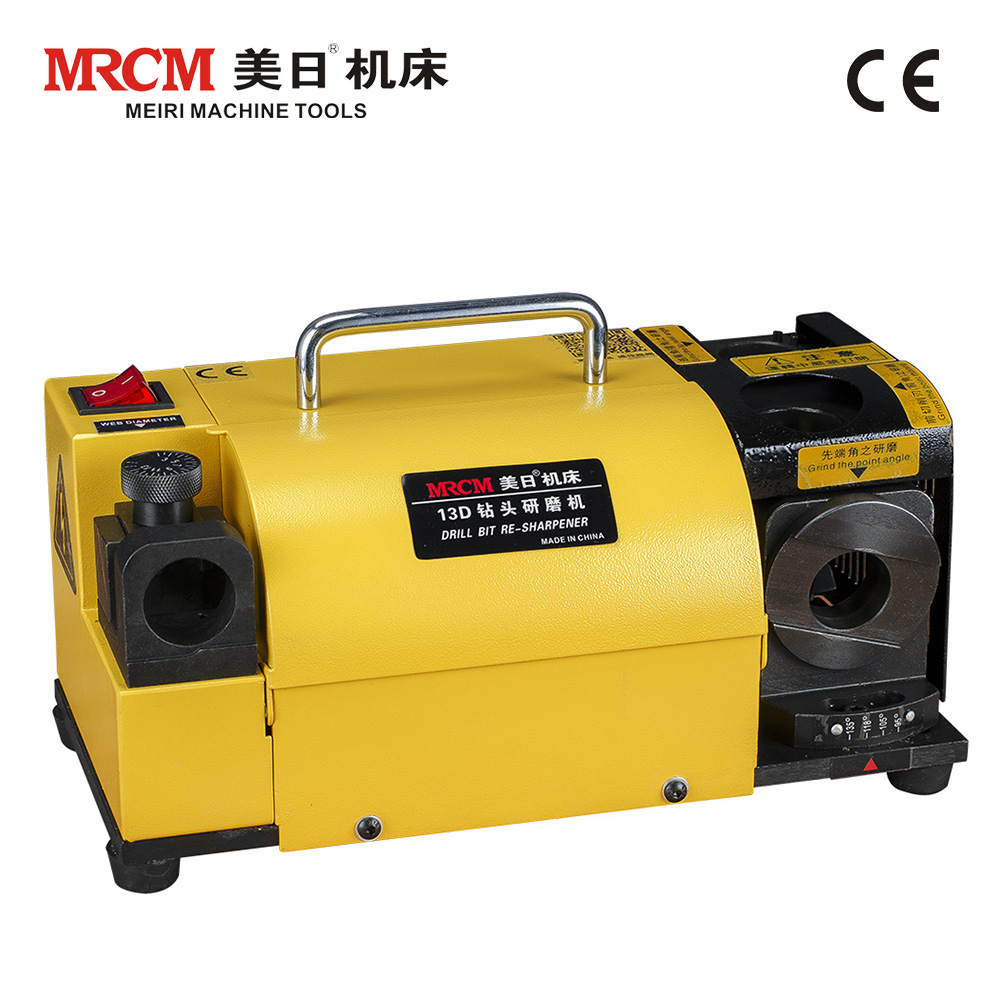

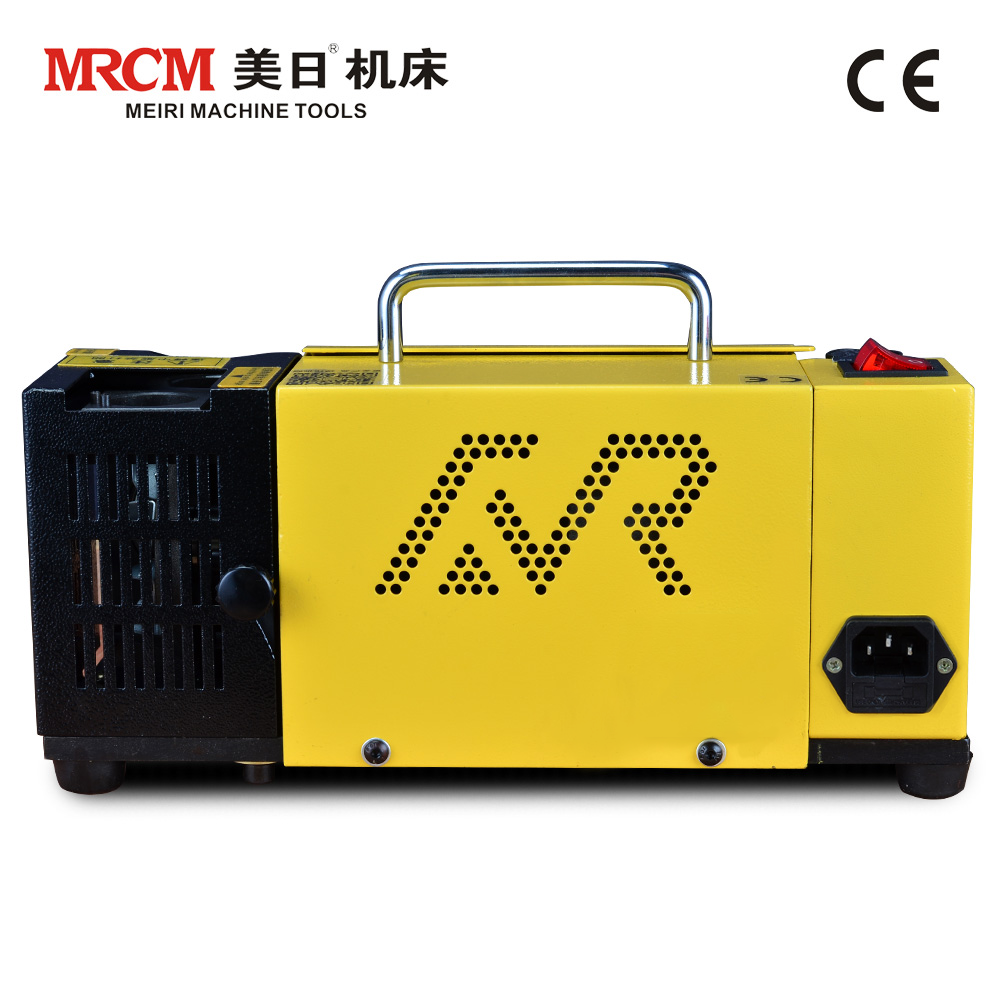

Manual Drill Bit Sharpener
This manual drill bit sharpener offers accurate and rapid grinding with easy operation. Its economical price reduces costs while improving the effectiveness of drill bit usage.
Technical Specifications
Overview
Precision Drill Bit Sharpening
This manual drill bit sharpener offers an accurate and rapid solution for maintaining cutting tools, designed for ease of operation without requiring advanced grinding skills. Its robust DC motor ensures stable frequency and strong horsepower for consistent performance. With adjustable point and lip relief angles, this compact machine helps prolong the service life of drill bits and improves overall drilling quality in small to medium enterprises or workshops.
Technical Specifications
- Model
- MR-13D
- Grinding Range
- Φ2-Φ13(Φ15) mm
- Point Angle
- 95°~135°
- Motor Power
- 120 W
- Grinding Speed
- 4400 rpm
- Power Supply
- AC220V
Physical Attributes
- Dimensions
- 32 x 18 x 19 cm
- Weight
- 10 kg

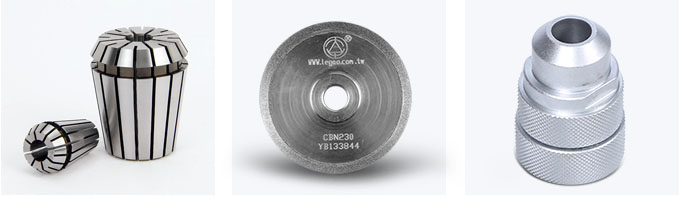

Equipment & Accessories
Standard Equipment
- Grinding wheel: CBN (for HSS) x 1
- Eleven collets: Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13
- Collet chuck: (Φ2-Φ14) x 1
Optional Equipment
- Grinding wheel: SD (for Carbide)
- Collets: Φ2, Φ2.5, Φ3.5, Φ4.5, Φ5.5, Φ14, Φ15
- Collet chuck: Φ15
Key Features
Performance Highlights

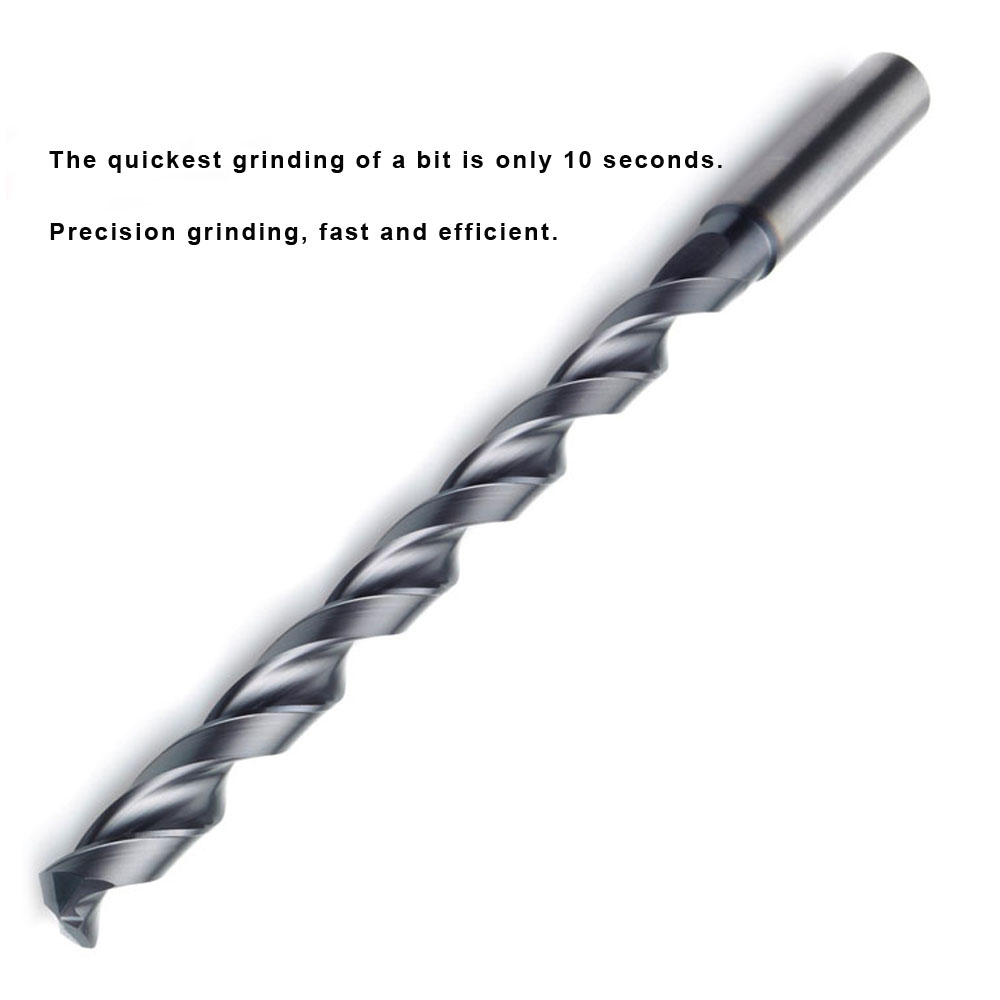

10 seconds
Average Sharpening Time
- Certifications
- CE
