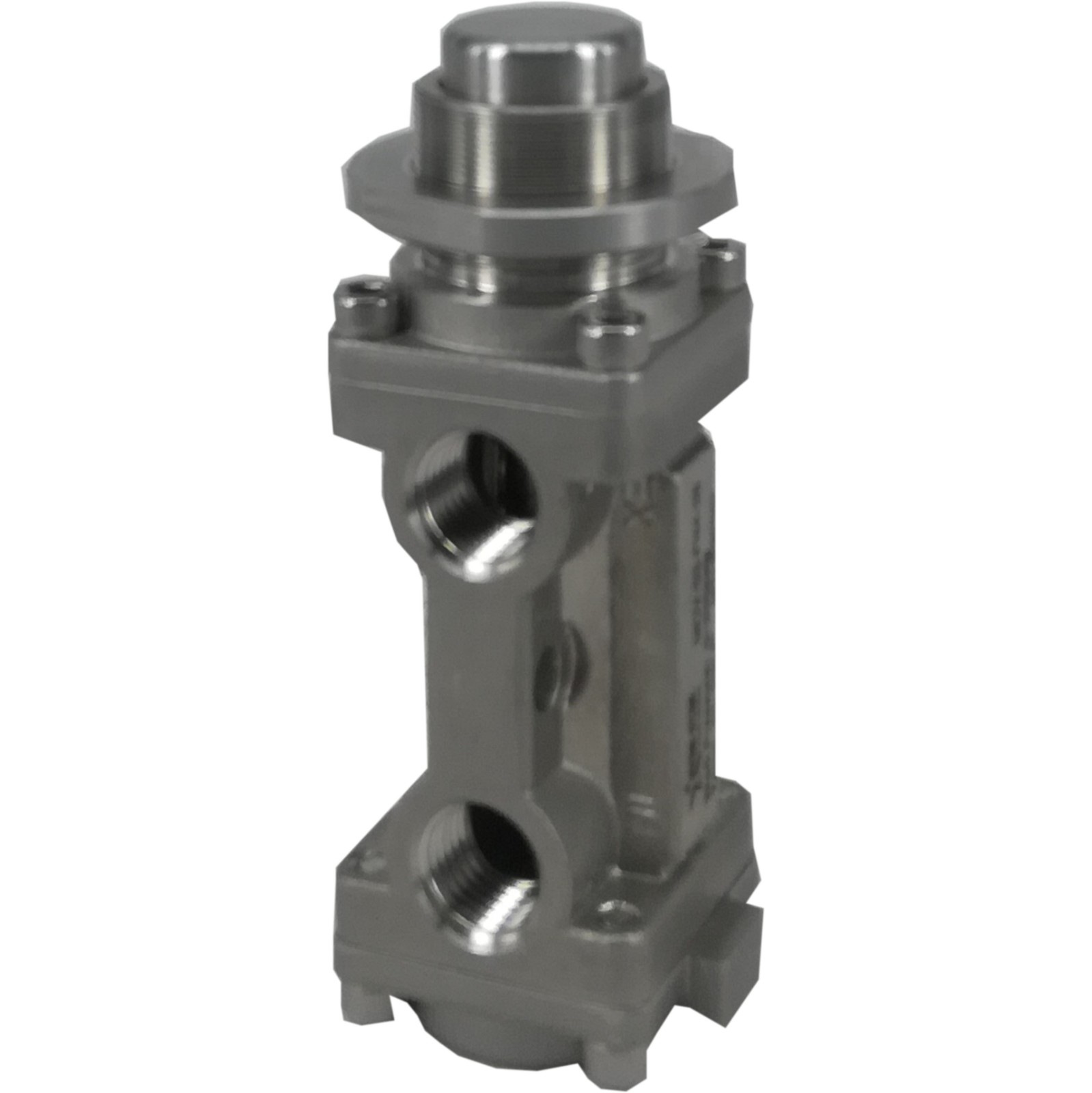

Manual Block and Bleed Valve
These manual valves are designed as block and bleed valves with options for normally closed (NC) or normally open (NO) configurations. They can be used in pneumatic or hydraulic systems and feature 316 stainless steel construction.
Technical Specifications
Product Overview
Manual Block and Bleed Valve
This precision-engineered manual operated valve is designed for reliable fluid control in both pneumatic and hydraulic industrial systems. Constructed from durable 316 stainless steel, it offers excellent corrosion resistance and long-term performance. The valve is available in various configurations, including 3-way (Normally Closed or Normally Open) and 5-way designs, providing flexibility for diverse application needs.
Performance Metrics
Maximum Operating Pressure
200 psig
Max Pressure
13.8 bar
Max Pressure
- Operating Temperature
- -40 to 250°F (-40 to 120°C)
Technical Specifications
Compliance & Standards
NACE MR-0175 Available
Available Configurations
- 3-Way Normally Closed (NC)
- 3-Way Normally Open (NO)
- 5-Way (Spring Return)
- 5-Way (Without Spring)
- Construction Materials
- 316 Stainless SteelBuna N SealsX-750 Spring

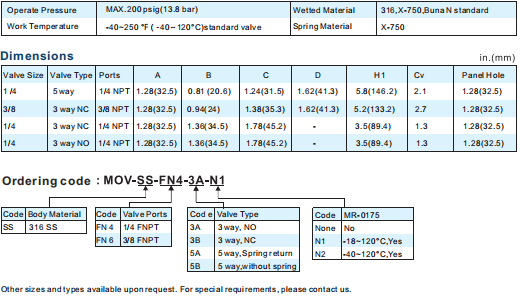

Dimensional Data
Valve Specifications Table
| Valve Size | Valve Type | Port Size | Cv Value |
|---|---|---|---|
| 1/4" | 5-way | 1/4 NPT | 2.1 |
| 3/8" | 3-way NC | 3/8 NPT | 2.7 |
| 1/4" | 3-way NC | 1/4 NPT | 1.3 |
| 1/4" | 3-way NO | 1/4 NPT | 1.3 |
