Manual Backwash Disk Pre-filter
This pre-filter is a filtration device designed to remove particulate matter from liquids. It features a manual backwash mechanism for cleaning the filter disks.





Technical Specifications
Overview
High-Efficiency Manual Backwash Filtration

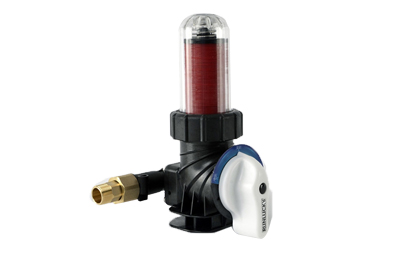

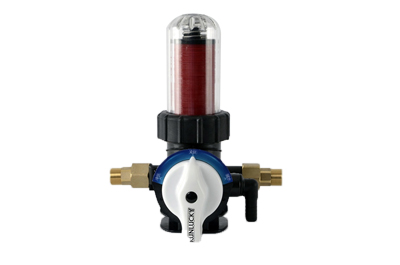

The RL-Q01S is a professional-grade manual backwash disk pre-filter designed for effective particulate matter removal. It features a transparent housing for easy visual monitoring and a user-friendly handle that streamlines the rinsing and service process. Its robust construction makes it ideal for residential, irrigation, and industrial water treatment applications.
Technical Specifications
- Filtration Accuracy
- 50 μm
- Rated Flow Rate
- 1.5 m3/h
- Suitable Water Pressure
- 0.1-0.6MPa
- Inlet/Outlet Connection
- G3/4
- Drain Line Diameter
- 16.5 mm
Operational Features
- Key Features
- Manual BackwashTransparent HousingEasy MaintenanceDisk Filter Technology
- Water Source Compatibility
- Tap water
- Direct Drinking System
- No
