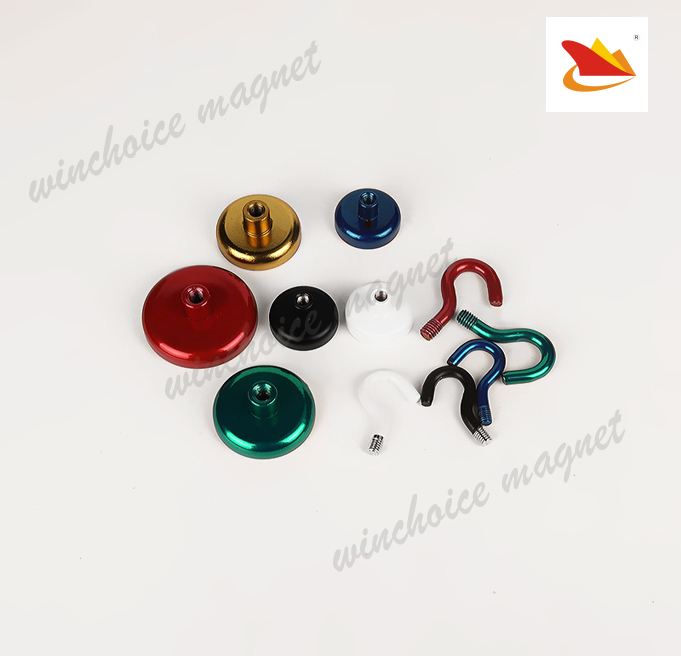

Magnetic Hook Fastener
These magnetic hooks are designed for versatile holding and hanging applications. The robust steel casing enhances the magnetic force on the holding surface, providing a secure and reliable grip for easy attachment of items.
Technical Specifications
Product Overview
Magnetic Hook Fasteners
These magnetic hook fasteners are designed for versatile holding and hanging applications in industrial and commercial environments. Featuring a robust steel casing, the design significantly enhances magnetic force on direct contact surfaces, ensuring a secure and reliable grip. The integrated hook mechanism allows for rapid deployment and easy attachment of tools, equipment, or signage, making them an essential solution for organizational efficiency.
Technical Specifications
Dimensions and Holding Force
| Model | Diameter (mm) | Dead Weight (g) | Holding Force (N) |
|---|---|---|---|
| POTN08-10H | 10 | 5 | 15 |
| POTN08-12H | 12 | 7 | 20 |
| POTN08-16H | 16 | 12 | 80 |
| POTN08-20H | 20 | 21 | 120 |
| POTN08-25H | 25 | 33 | 220 |
| POTN08-32H | 32 | 54 | 340 |
| POTN08-36H | 36 | 64 | 410 |
| POTN08-42H | 42 | 93 | 680 |
| POTN08-48H | 48 | 150 | 780 |
| POTN08-55H | 55 | 231 | 1,020 |
| POTN08-60H | 60 | 283 | 1,200 |
| POTN08-70H | 70 | 531 | 1,530 |
| POTN08-75H | 75 | 555 | 1,780 |
| POTN08-80H | 80 | 744 | 2,000 |
- Design Features
- Steel CasingIntegrated HookHigh Holding ForceVersatile Mounting
