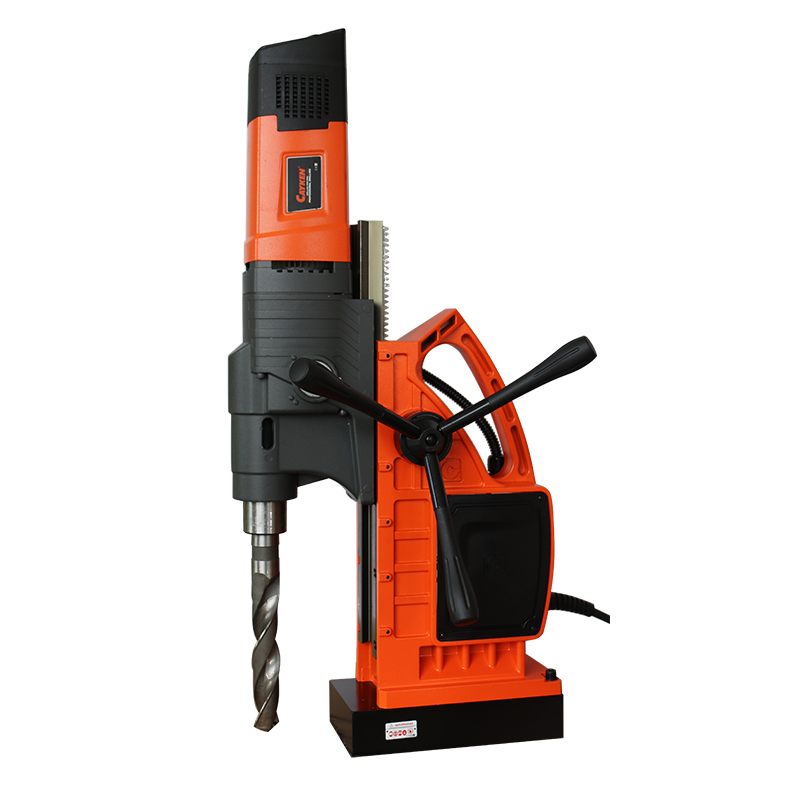

Magnetic Drill Press
This magnetic drill press is designed for precision drilling on metal surfaces. Its powerful motor and magnetic base ensure stability and accuracy, while variable speed control adapts to different materials and drilling diameters.
Technical Specifications
Overview
High-Performance Magnetic Drill Press
This industrial-grade magnetic drill press is engineered for precision and heavy-duty performance on metal surfaces. Featuring a powerful 2980W motor and robust magnetic adhesion, it delivers exceptional stability for demanding drilling, tapping, and reaming tasks. Its versatile variable speed settings and high drilling capacity make it an essential tool for construction, fabrication, and maintenance professionals.
Performance Metrics
Drilling Capacity
130 mm
Max Core Drill
32 mm
Max Twist Drill
24 M
Max Tapping
- Magnetic Adhesion
- 20800 N
Technical Specifications
Power Requirements
- 2980W Power Output
- 110/220/230/240V Voltage
- 50-60Hz Frequency
Operational Dimensions
| Parameter | Value | Unit |
|---|---|---|
| Stroke | 300 | mm |
| Cutting Depth | 100 | mm |
- No-load Speed Ranges
- 40-110 RPM65-180 RPM190-510 RPM300-800 RPM
Logistics
Shipping Specifications
- Packing Size: 75 x 20 x 47 cm
- Gross Weight: 31 kg
- Net Weight: 23.5 kg
