Magnetic Drill Press
This magnetic drill press is designed for drilling large diameter holes in steel and other ferrous materials. It has a strong magnetic base that securely attaches to the workpiece for stability.
Technical Specifications
Overview
Industrial Magnetic Drill Press

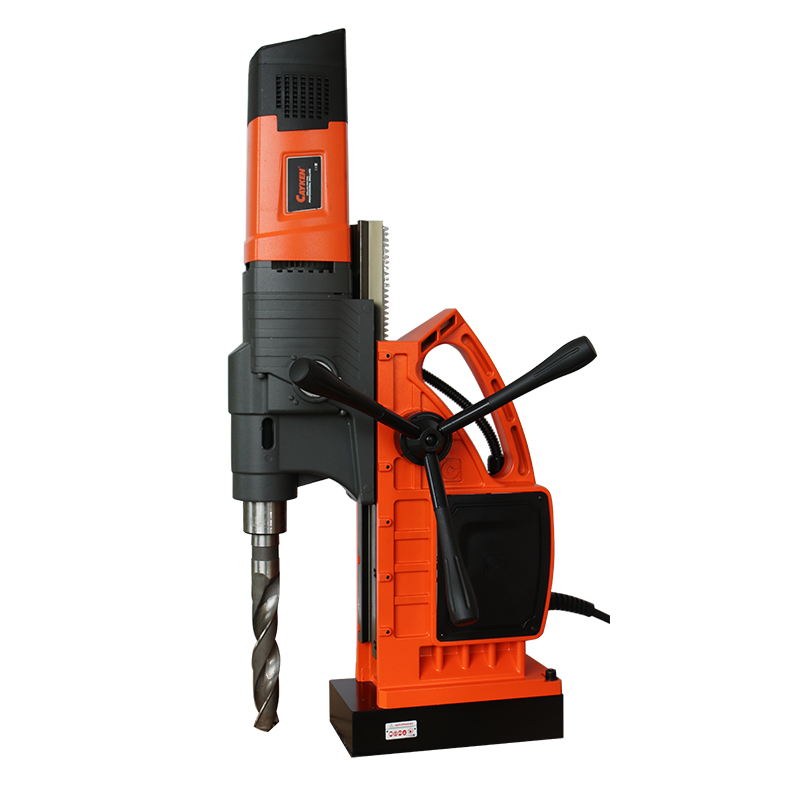

The KCY-150/4WD Magnetic Drill Press is a high-performance industrial tool engineered for heavy-duty drilling tasks in steel and ferrous materials. Featuring a robust 3080W motor and a powerful 21800N magnetic base, it ensures superior stability and precision for large-diameter drilling and tapping operations. This versatile unit offers variable speed control across four ranges, making it an essential asset for construction, fabrication, and maintenance professionals.
Performance & Capacity
Drilling Capabilities
130 mm
Max Core Drill
32 mm
Max Twist Drill
120 mm
Cutting Depth
No-load Speed Ranges
- 35-100 RPM
- 55-160 RPM
- 170-460 RPM
- 270-720 RPM
- Tapping Capacity
- M24
Power & Mechanics
- Power Output
- 3080 W
- Magnet Adhesion
- 21800 N
- Voltage Compatibility
- 110V220V230V240V
Physical Dimensions
Weight Specifications
| Type | Weight |
|---|---|
| Gross Weight | 31 kg |
| Net Weight | 23.5 kg |
- Drill Stroke
- 310 mm
- Packing Size
- 75 x 20 x 47 cm
