LV Aerial Cable Tension Clamp
These tension clamps are used to anchor and tighten low voltage aerial cables with insulated neutral messenger. They are constructed from corrosion-resistant aluminum alloy and stainless steel, with weather-resistant and anti-UV wedges.
Technical Specifications
Product Overview
Professional Tension Clamps for Aerial Cables
The JBGA and JBGB series tension clamps are engineered for anchoring and tightening low voltage aerial cables equipped with insulated neutral messengers. Constructed from high-quality, corrosion-resistant aluminum alloys and durable stainless steel supports, these clamps ensure reliable mechanical support and electrical connectivity. Designed for demanding outdoor environments, they feature weather-resistant, anti-UV wedges to maintain high mechanical strength over time.
Technical Specifications
Material Composition
- Clamp Body: Corrosion-resistant extruded or cast aluminum alloy
- Metal Support: Stainless steel
- Wedges: Weather-resistant, anti-UV material with high mechanical strength
- Compliance Standards
- EN 50483-3NF C 33-041
Performance Data

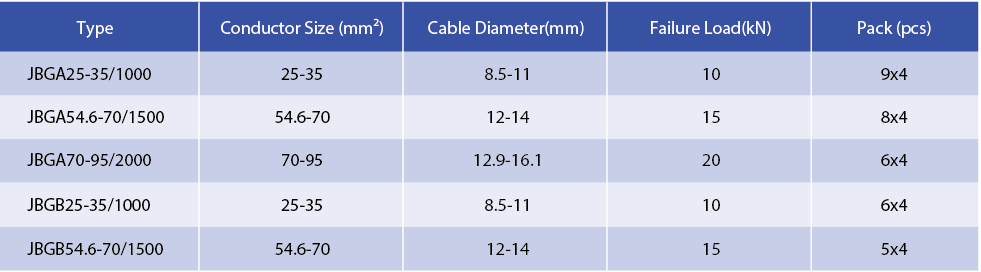

Model Specifications
| Model | Conductor Size (mm²) | Cable Diameter (mm) | Failure Load (kN) |
|---|---|---|---|
| JBGA25-35/1000 | 25-35 | 8.5-11 | 10 |
| JBGA54.6-70/1500 | 54.6-70 | 12-14 | 15 |
| JBGA70-95/2000 | 70-95 | 12.9-16.1 | 20 |
| JBGB25-35/1000 | 25-35 | 8.5-11 | 10 |
| JBGB54.6-70/1500 | 54.6-70 | 12-14 | 15 |
