LV-ABC Aluminum Insulation Connector
These pre-insulated connectors are designed for LV-ABC systems using a neutral messenger. They are used on the phase conductor.
Technical Specifications
Overview

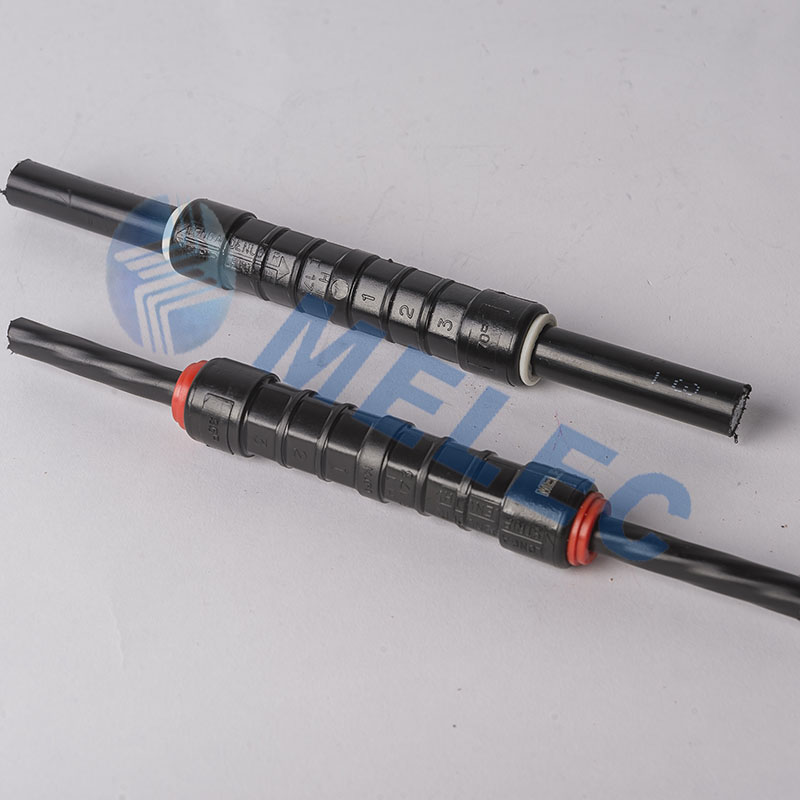

MJPT Pre-Insulated Aluminum Connector
The MJPT series pre-insulated connectors are specialized components designed for Low Voltage Aerial Bundled Cable (LV-ABC) systems with a neutral messenger. Engineered for reliability, these connectors feature a high-purity aluminum construction (Al ≥ 99.5%) and a weather-resistant, anti-UV insulating sheath. Pre-filled with silicone grease and equipped with elastomeric caps, they provide superior waterproof performance for long-term outdoor and underground service.
Technical Specifications
Compliance Standards
EN 50483-4NF C 33-021
Key Electrical Metrics
6 kV
Dielectric Voltage Test
1 min
Test Duration
Installation Features
- Clear markings for crimping die size
- Defined crimping sequence and frequency
- Conductor cross-section identification
- Indicated stripping length
- Color-coded elastomeric caps
- Material Composition
- Aluminum (Al ≥ 99.5%)Weather-resistant PolymerAnti-UV SheathSilicone Grease
Performance Data

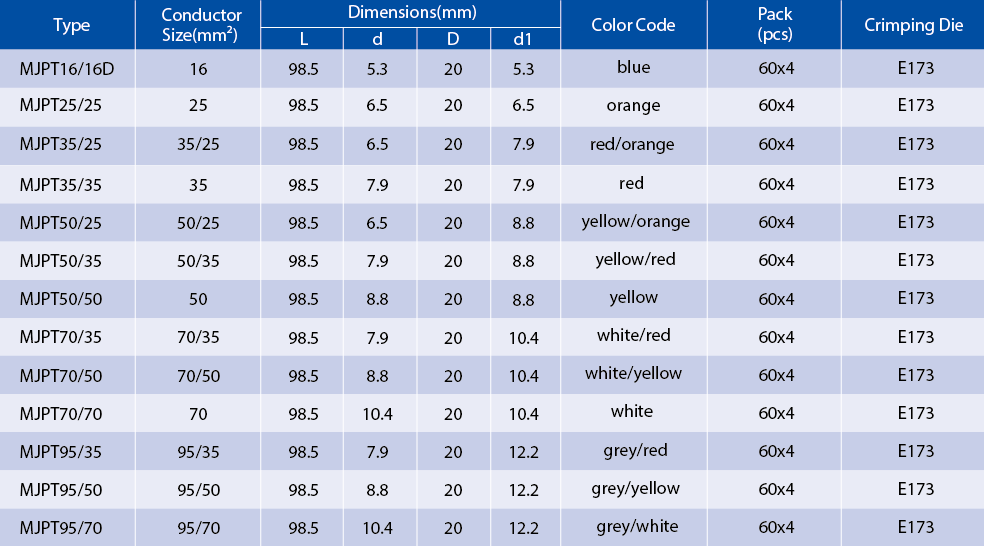

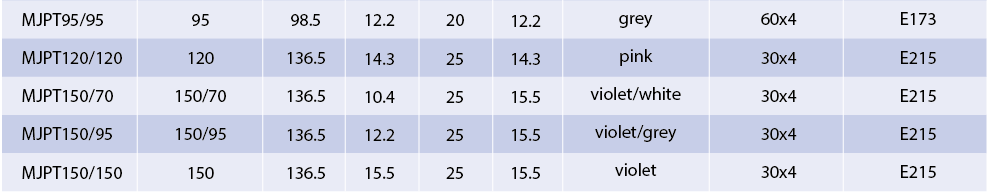

Connector Specifications Table
| Model Type | Conductor (mm²) | Crimping Die | Color Code |
|---|---|---|---|
| MJPT16/16D | 16 | E173 | Blue |
| MJPT35/25 | 35/25 | E173 | Red/Orange |
| MJPT50/50 | 50 | E173 | Yellow |
| MJPT70/70 | 70 | E173 | White |
| MJPT95/95 | 95 | E173 | Grey |
| MJPT150/150 | 150 | E215 | Violet |
