Low Frequency Online UPS
This UPS system provides continuous power to connected equipment, isolating them from power line disturbances. Its low-frequency design ensures reliability and the ability to handle demanding loads.
Technical Specifications
Overview

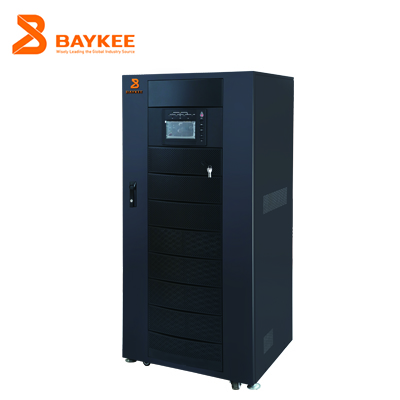

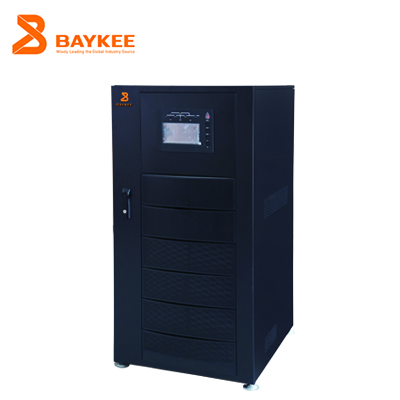

CHP3000 Series Low Frequency Online UPS
The CHP3000 series is a robust, low-frequency online UPS system designed for high-reliability applications in sectors such as telecommunications, banking, and industrial manufacturing. Utilizing advanced digital control technology and the 6th generation IGBT inverter, it provides superior power stability and handles complex grid environments with ease. With a scalable capacity ranging from 10kVA to 600kVA, this system offers intelligent battery management and comprehensive protection features to ensure continuous, clean power for critical infrastructure.
Performance Metrics
Capacity Range
Operating Environment
- Temperature: -10 to 40ºC
- Relative Humidity: 30% to 90%
- Standard Altitude: < 2000m
- Max Altitude: 4000m (with derating)
Technical Specifications
Voltage Configurations
| Configuration Type | Standard Options |
|---|---|
| Standard | 220/380VAC, 230V/400VAC, 240V/415VAC |
| Optional | 110V/208VAC, 120V/220VAC, 277V/480VAC |
Inverter Technology
- Protection Features
- Input-output over-low voltage protectionInput surge protectionPhase protectionBattery overcharge/discharge protectionOutput overload/shortcut protectionOverheat protection
Features
Included Services
- Startup assistance
- Internal bypass
- 2-year warranty
Optional Upgrades
- Input harmonic filter
- 12 pulse wave rectifier
- Battery detecting modules
- SNMP card for remote control
