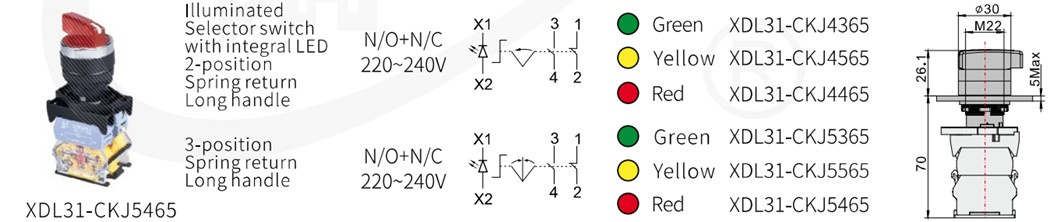

Long Selector Push Button Switch with Lamp for Elevator Position
This long selector push button switch features an integrated lamp for elevator position indication. It is designed for use in elevator control panels and other industrial applications requiring precise position selection and signaling.
Technical Specifications
Product Overview

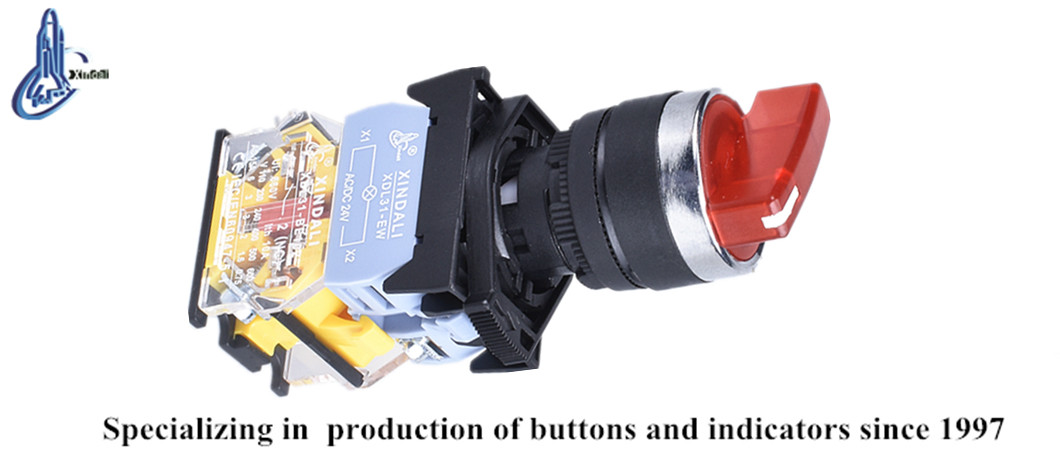

Professional Elevator Selector Switch
This long selector push button switch with integrated lamp is precision-engineered for demanding industrial control and elevator position signaling. Built with high-grade anti-flame plastics and durable zinc alloy, it ensures long-term reliability in environments requiring frequent operation. The contact system utilizes special silver alloys to minimize electrical erosion, providing a robust solution for AC circuits up to 660V and DC circuits below 400V.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Pollution Grade
- 3
- Rated Withstanding Impulse Voltage
- 6 kV
Environmental Performance
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Air Relative Humidity
- 35% - 85% RH
- Protection Ratings
- IP40IP54IP65IP66IP67IP68
Operational Characteristics
Mechanical Life Cycles
| Component | Operations |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Button | 300,000 |
- Fastening Torque
- 0.8 Nm
Compliance & Standards
- Standards and Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
