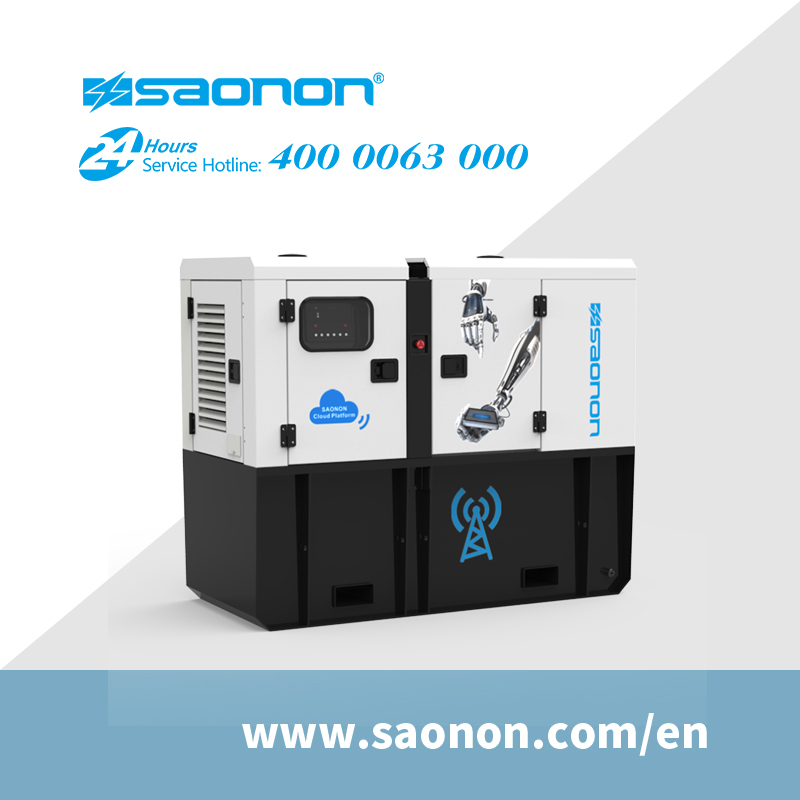

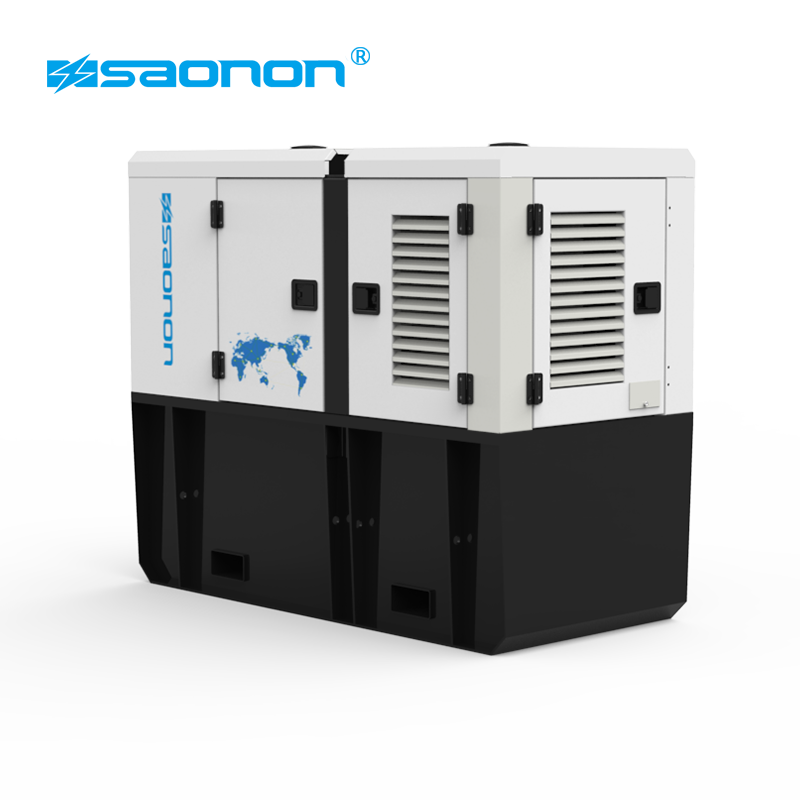

Long-Life Diesel Power Generator Set
This diesel generator set provides a reliable and long-lasting power source. Its durable construction requires minimal maintenance, making it suitable for various applications.
Technical Specifications
Overview
Maintenance-Free Power Solution
This advanced power generator is engineered for reliable, long-term electricity generation with minimal human intervention. Featuring a robust chassis with a 1000L fuel capacity, it supports continuous unattended operation for over 168 hours. The system is designed for quiet performance and clean energy output, making it an ideal solution for critical infrastructure and demanding industrial applications.
Performance Metrics
Featured Performance
19.3 kVA
ESP Power
17.6 kVA
PRP Power
1,500 r/min
Speed
Technical Specifications
Core Specifications
| Parameter | Value |
|---|---|
| Model | S22JSPS |
| Rated Voltage | 400 V |
| Frequency | 50 Hz |
| Engine | PERKINS 404D-22G |
| Alternator | LEROYSOMER TAL-A40-F |
| Weight | 1130 kg |
| Dimensions (LxWxH) | 2000x960x1690 mm |
Key Features
Operational Capabilities
- 1000L chassis fuel tank for ≥ 168h operation
- Automatic oiling system for autonomous lubrication
- Intelligent control system with remote monitoring
- Automatic ATS load switching
- Silent design meeting 70±3dB (A) at 7 meters
Environmental Compliance
- Compliance & Protection
- Rain-proofDust-proofLow EmissionsFire Retardant Insulation
