Long-Distance Passenger Bus with Air Suspension
This passenger bus incorporates manufacturing technologies for safety and comfort. The vehicle features a girder-free monocoque bodyframe, prestressed metal sheet, independent double-wishbone front axle, air suspension and a patented A-subframe.
Technical Specifications
Overview
High-Capacity Long-Distance Transport

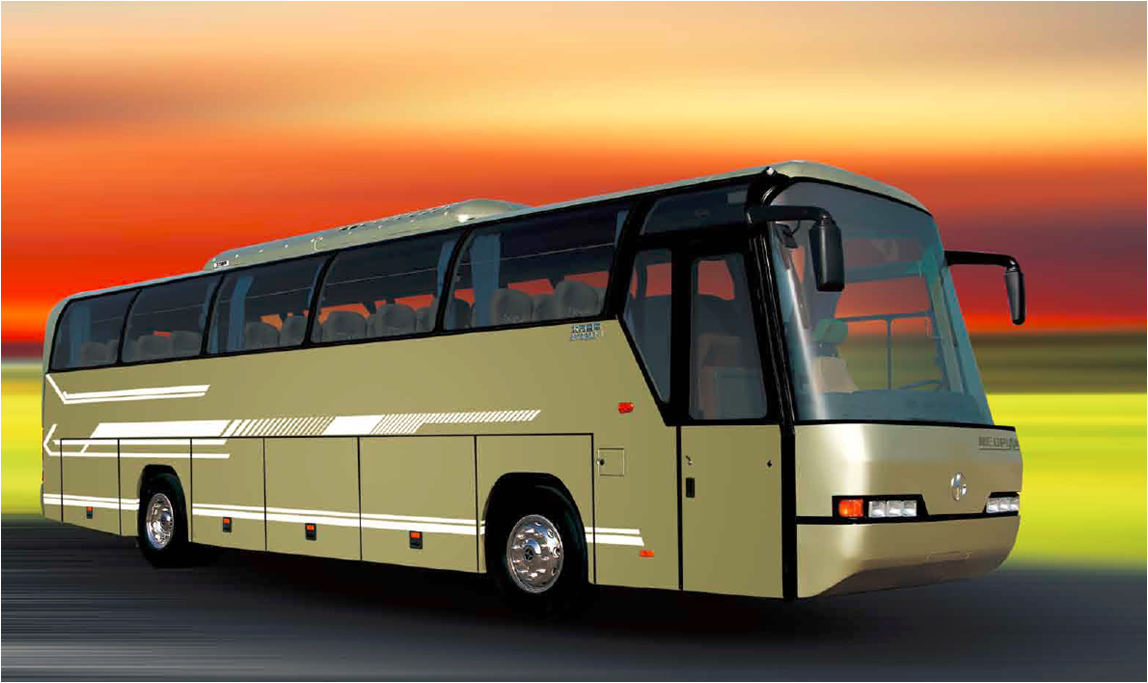

The BFC6120B2 is a robust, full-unitized passenger bus engineered for long-distance travel and professional sightseeing operations. Built with a rectangular steel skeleton and prestressed planking, it offers exceptional durability and structural integrity. The vehicle combines a powerful diesel engine with advanced air suspension systems to ensure a smooth and reliable experience for both drivers and passengers.
Dimensions & Capacity
Dimensions
12,000 mm
Length
2,500 mm
Width
3,520 mm
Height
- Seating Capacity

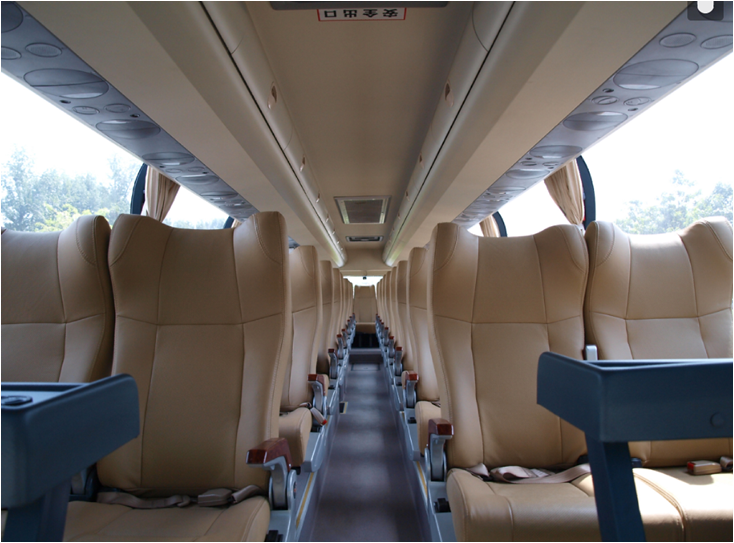

- 49 + 1 + 1 (Luxurious, reclinable)
Powertrain & Performance
Engine Specifications
| Feature | Detail |
|---|---|
| Model | Weichai WP10.336E40 |
| Type | In-line 6-cylinder, water-cooled, turbocharged, intercooled |
| Power Output | 247 kW |
| Emission Standard | Euro 4 |
Transmission & Clutch
- Fast 160T Gearbox
- 430 Brand Clutch
Chassis & Suspension
Suspension System
| Position | Configuration |
|---|---|
| Front | Independent air suspension, 2 bellows, 2 shock absorbers |
| Rear | 2 bellows, 4 shock absorbers |
Axle Configuration
- Front: VN8 double-wishbone independent axle
- Rear: CV-HS or Fangsheng drum type
Safety & Technology
- Safety Systems
- 4S-4M ABSElectromagnetic RetarderFire Alarm System
Comfort & Amenities
Entertainment System
- HD Player
- 17-inch LCD TV
- Loudspeaker system
- Guide microphone
- Air Conditioning
- Non-independent overhead system (≥30000 kcal/h)
