Technical Specifications
Overview

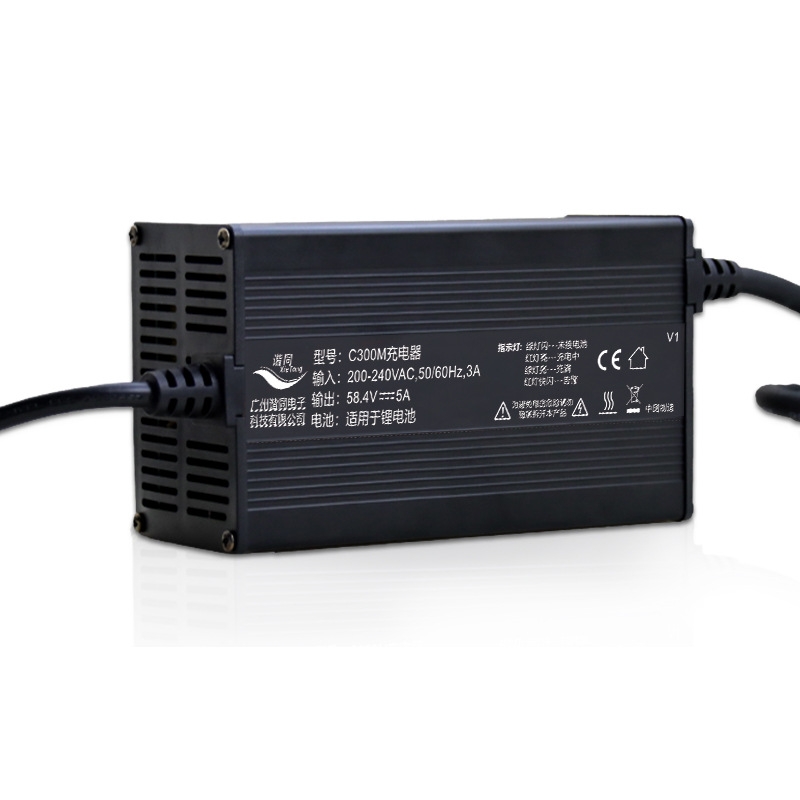

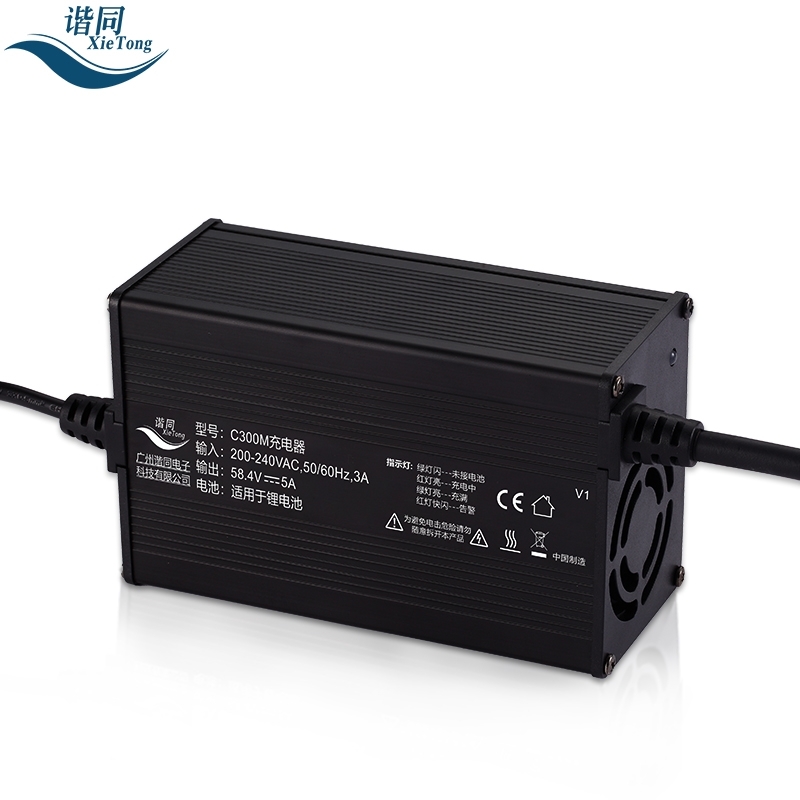

Professional Electric Vehicle Charger
This 300W battery charger is engineered for high-efficiency charging of various battery chemistries, including lithium-ion, LiFePO4, and lead-acid packs. Housed in a durable aluminium alloy casing with integrated cooling ribs, it provides reliable thermal management for demanding applications like electric motorcycles, e-bikes, and scooters. With wide-range input voltage compatibility and customizable output connectors, this unit is a versatile solution for international electric mobility infrastructure.
Electrical Specifications
Performance Metrics
54.6 V
Output Voltage
6 A
Charging Current
300 W
Output Power
- Input Voltage Range
- 110-132VAC / 200-264VAC
- Compatible Battery Types
- Li-ionLiFePO4Lead Acid
Physical & Design
- Dimensions
- 137 x 90 x 51 mm
- Net Weight
- 1 kg
- Casing Material
- Aluminium Alloy
Compliance & Support
Certifications
CE
- Warranty Period
- 12 Months
- Socket Standard
- Customizable based on destination country
Applications
Primary Applications
- Electric Motorcycle
- Electric Scooter
- E-bike
