LED TV Components
These LED TV components are designed for assembly into complete television units. They provide the necessary parts for creating high-definition displays suitable for various audio-video applications.
Technical Specifications
Overview

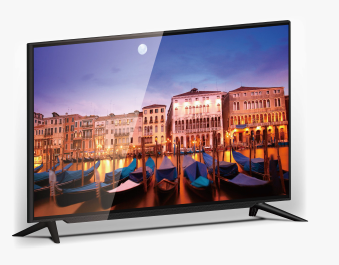

M3 Series LED TV Components
The M3 series offers a versatile solution for LED TV assembly, available in 32, 38.5, and 43-inch configurations. These components feature a durable metal back cabinet paired with a high-quality ABS shining front cabinet, ensuring both structural integrity and a premium aesthetic. Designed for flexibility, the system supports customizable audio options and advanced backlight configurations to meet specific performance requirements.
Physical Specifications
Construction Materials
- ABS shining material (Front Cabinet)
- Metal (Back Cabinet)
- Tempered Glass
- Screen Sizes
- 32 inch38.5 inch43 inch
Audio & Electronics
Speaker Compatibility
5090 Speaker2-inch HiFi Speaker
Backlight System
Performance Metrics
3,400 cd/m2
Brightness
25 W
Power Consumption
600 MA
Current
Included Film/Sheet
- 1x Reflector Sheet
- 1x Diffuser Plate
- Optional: Diffuser Sheet
- Electrical Characteristics
- 36-41V
- LED Setup
- 2 x 6 LED Bar (3030 LED unit)
