LED Television Components in SKD and CKD Formats
These LED television components are available in SKD (Semi-Knocked Down) and CKD (Completely Knocked Down) formats. They provide a cost-effective solution for producing a range of TV sizes and specifications, including panels, boards, and accessories.
Technical Specifications
Product Overview
Professional LED TV Assembly Components

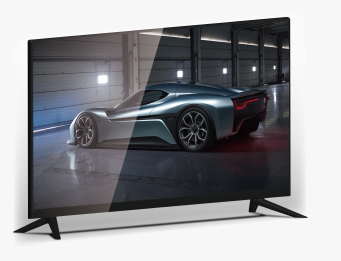

These LED television components are available in both SKD (Semi-Knocked Down) and CKD (Completely Knocked Down) formats, providing a flexible and cost-effective solution for TV manufacturers and assemblers. The M6 model series supports multiple screen sizes including 32, 38.5, and 43 inches, featuring a modern full-screen frameless design. Built with durable ABS and metal materials, these components ensure high-quality display performance and reliable integration for various production needs.
Physical Specifications
Materials
- ABS shining material (Front cabinet)
- Metal (Back cabinet)
- Supported Screen Sizes
- 32 inch38.5 inch43 inch
- Design Style
- Full Screen Frameless
Audio & Electronics
Speaker Options
- 5090 speaker
- 2 inch HiFi speaker
Backlight System
Backlight Performance
3,400 cd/m2
Brightness
25 W
Consumption
600 MA
Power
Backlight Configuration
| Component | Specification |
|---|---|
| LED Bar | 2 x 6 LED Bar |
| LED Unit | 3030 |
| Voltage | 36-41V |
Optical Films Included
- 1 x Reflector sheet
- 1 x Diffuser plate
- Optional: Diffuser sheet
