Technical Specifications
Product Overview
Professional LED Bus Destination System

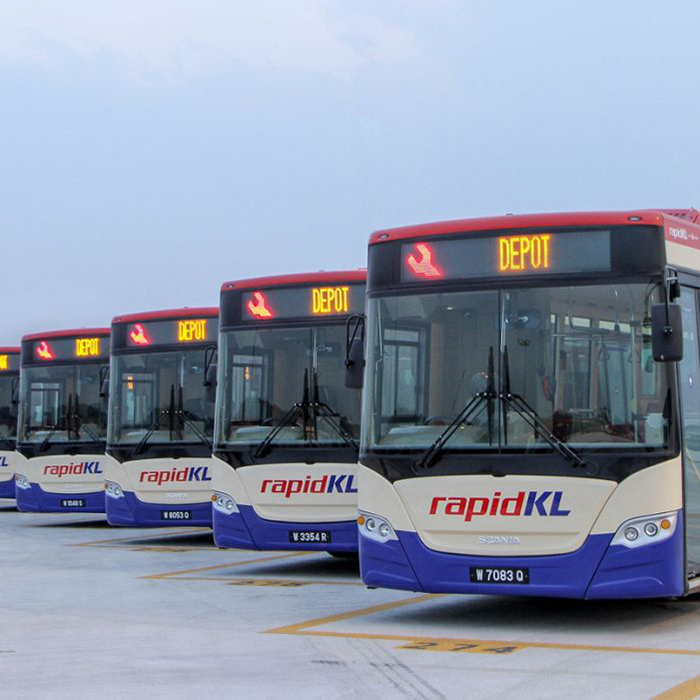

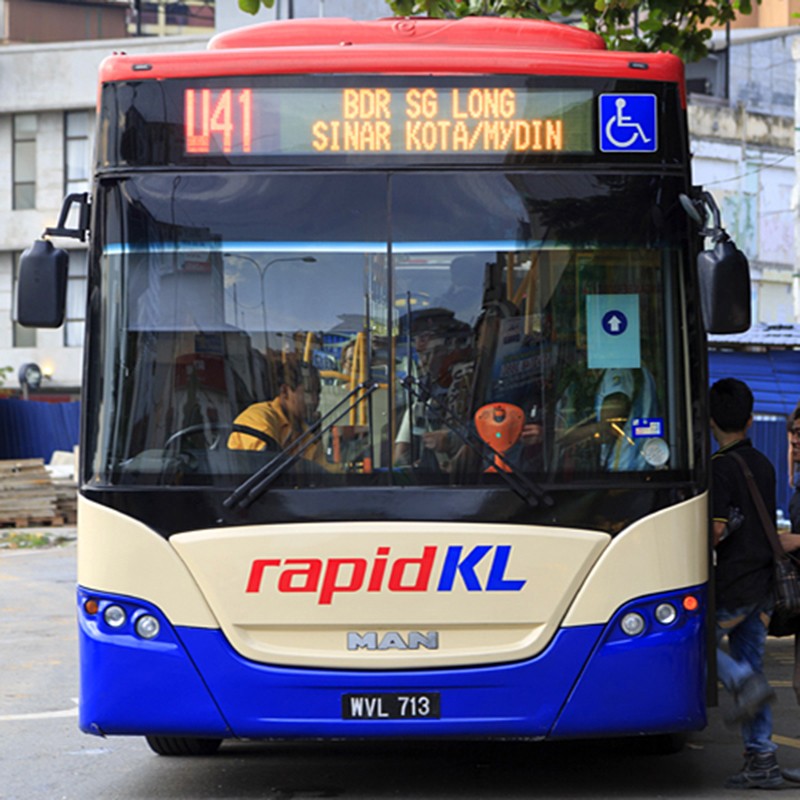

This high-visibility LED bus display is engineered for clear, real-time communication of route numbers, destinations, and passenger information. Designed for installation on the front windshield, it supports both monocolor and full-color configurations to suit various operational needs. With a robust, weather-resistant construction and wide operating temperature range, this display ensures reliability in diverse environmental conditions for public transportation fleets.
Technical Specifications
- Overall Dimensions
- 1110mm x 236mm x 42mm
- LED Display Area
- 960mm x 200mm
- Pixel Resolution
- 16 x 96 dots
- Working Voltage
- DC 9V - 35V
- Max Power Consumption
- 100 W
- Gross Weight
- 4.5 kg
Performance & Environment
- Operating Temperature
- -40 to 60 °C
- Working Humidity
- 0-99% RH
- LED Life Span
- 100,000 Hours
Features & Connectivity
Color Options
RedAmber
Communication Protocols
- RS485
- CAN
- RS232
System Features
- Remote control capability
- GPS/GSM/GPRS customization available
- Adjustable brightness and scrolling speed
- Storage for up to 9000 lines of messages
- Supported Content
- TextNumbersImagesMulti-language support
