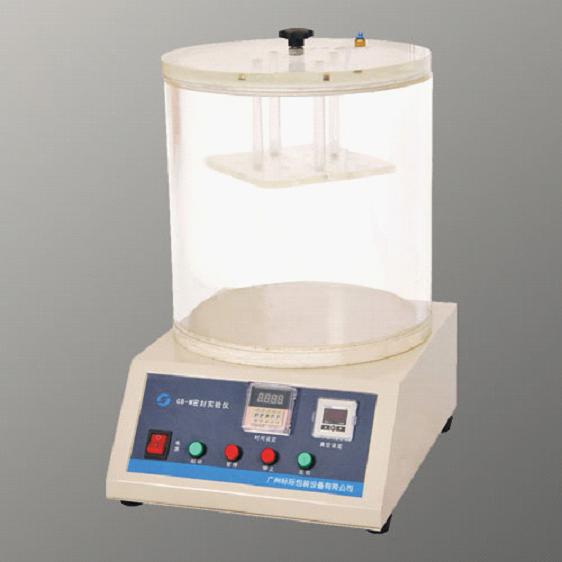

Leakage Tester for Flexible Packaging
This leakage tester is designed for conducting leakage tests on flexible packaging, plastic bottles, and bags. It is suitable for use in the food, pharmaceutical, and commodity industries to evaluate sealing performance.
Technical Specifications
Overview
Precision Seal Integrity Testing
This leakage tester is a professional-grade instrument designed for evaluating the seal integrity of flexible packaging, plastic bottles, bags, and pots. It is essential for quality control in the food, pharmaceutical, and commodity industries, allowing for effective evaluation of sealing performance. The device utilizes advanced vacuum testing methods to ensure packaging meets rigorous industry standards.
Standards & Compliance
- Compliance Standards
- GB/T 15171-1994ASTM D 3078-94
Performance Metrics
Vacuum Performance
-90 kPa
Max Vacuum Degree
1 %
Vacuum Precision
60 min
Max Holding Time
Technical Specifications
- Intake Pressure
- 0.6 MPa
- Power Supply
- AC 220V / 50HZ
Physical Dimensions
Physical Dimensions
| Component | Specification |
|---|---|
| Vacuum Chamber | Ф300×350mm |
| Device Dimensions | 430(L) x 300(W) x 500(H) mm |
| Weight | 12 kg |
