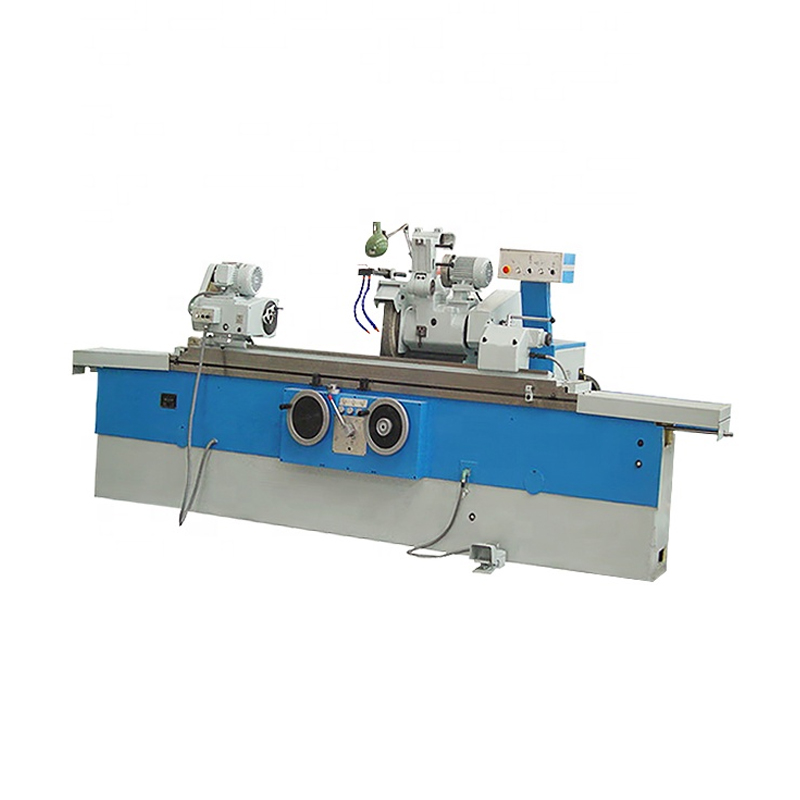

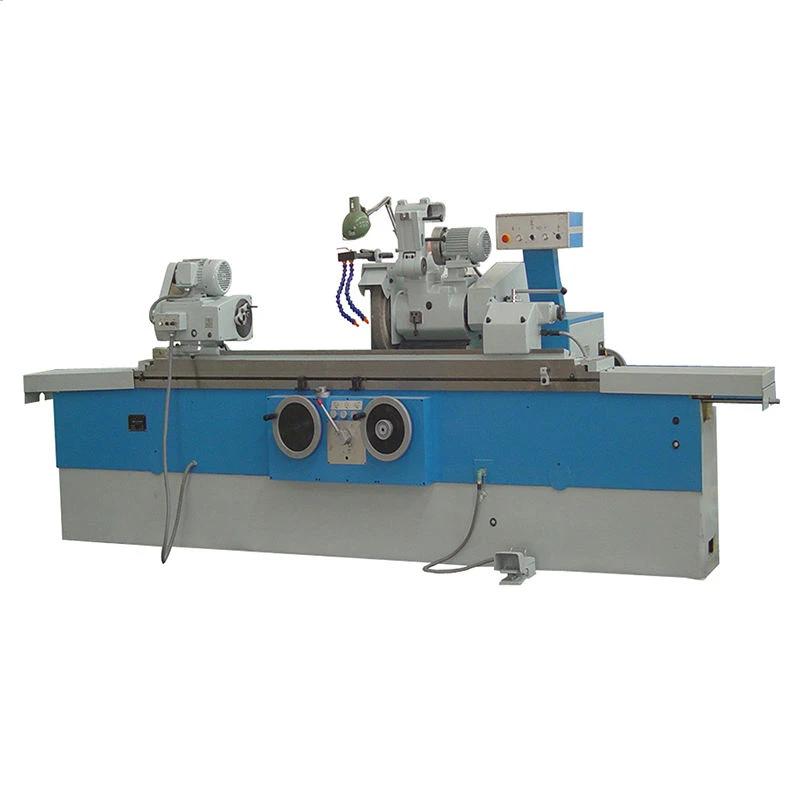

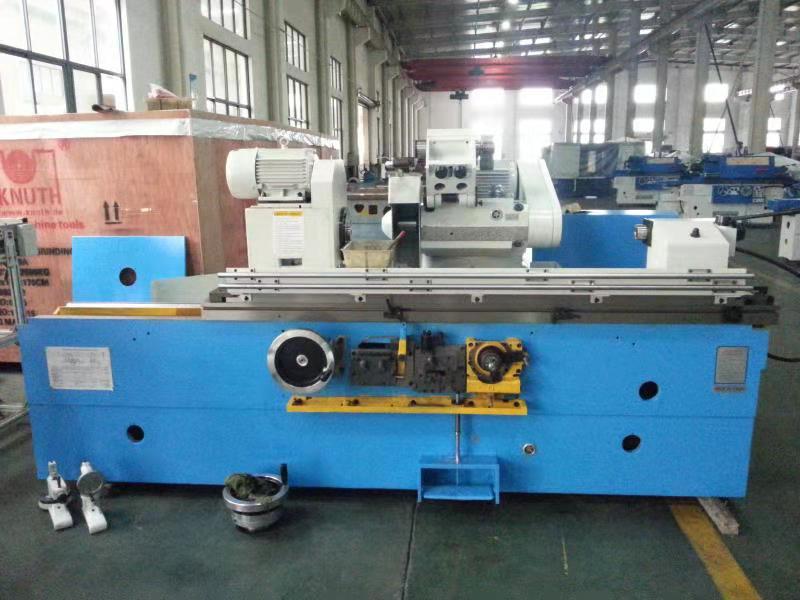

Leadscrew Thread Grinding Machine
This thread grinder utilizes a shaped grinding wheel for precision thread processing. Its electronic gearbox expands the lead range and simplifies programming.
Technical Specifications
Overview
High-Precision Thread Grinding

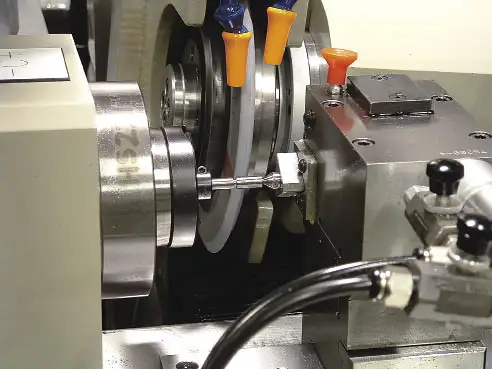

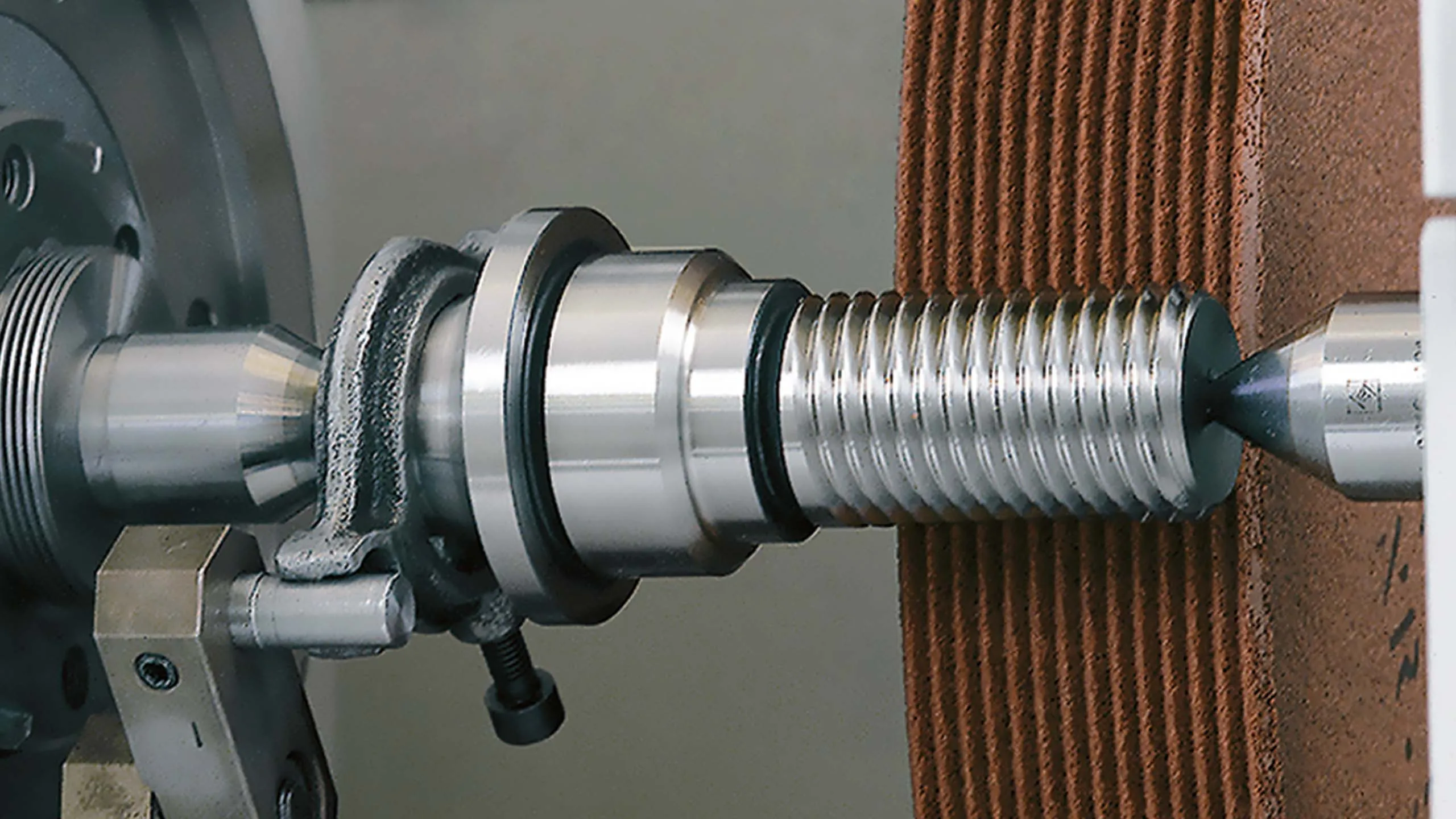

This Leadscrew Thread Grinding Machine is designed for high-productivity metal surface grinding, utilizing a shaped grinding wheel as an abrasive tool to process precision threads. It features advanced closed-loop control with an 18000-line angle encoder and high-precision ball screws for both the mother screw and horizontal feed. The machine is fully enclosed, ensuring a clean and safe working environment with integrated electrostatic air purification.
Technical Specifications
Max. Workpiece Capacity (Dia. x Length)
| Model | Capacity (mm) |
|---|---|
| 17608 | 320 x 1000 |
| 17609 | 320 x 1500 |
| 17610 | 320 x 2000 |
Grinding Range
320 mm
Max Diameter Ground
6 mm
Min Diameter Ground
- Metric Thread Lead
- 40 mm
- Inch Thread Lead
- 1-14 t/in
- Module Thread Lead
- 1-16
Key Features
Build Quality
High-precision rolling bearingsBall screw feedFully enclosed enclosureElectrostatic air purifier
- Control Features
- Electronic GearboxClosed-loop ControlAutomatic IndexingStepless Speed Regulation
