Lead-Acid Battery Charger
This high-frequency battery charger is compatible with most lead-acid batteries. It features integrated MCU components for optimal charging.
Technical Specifications
Product Overview

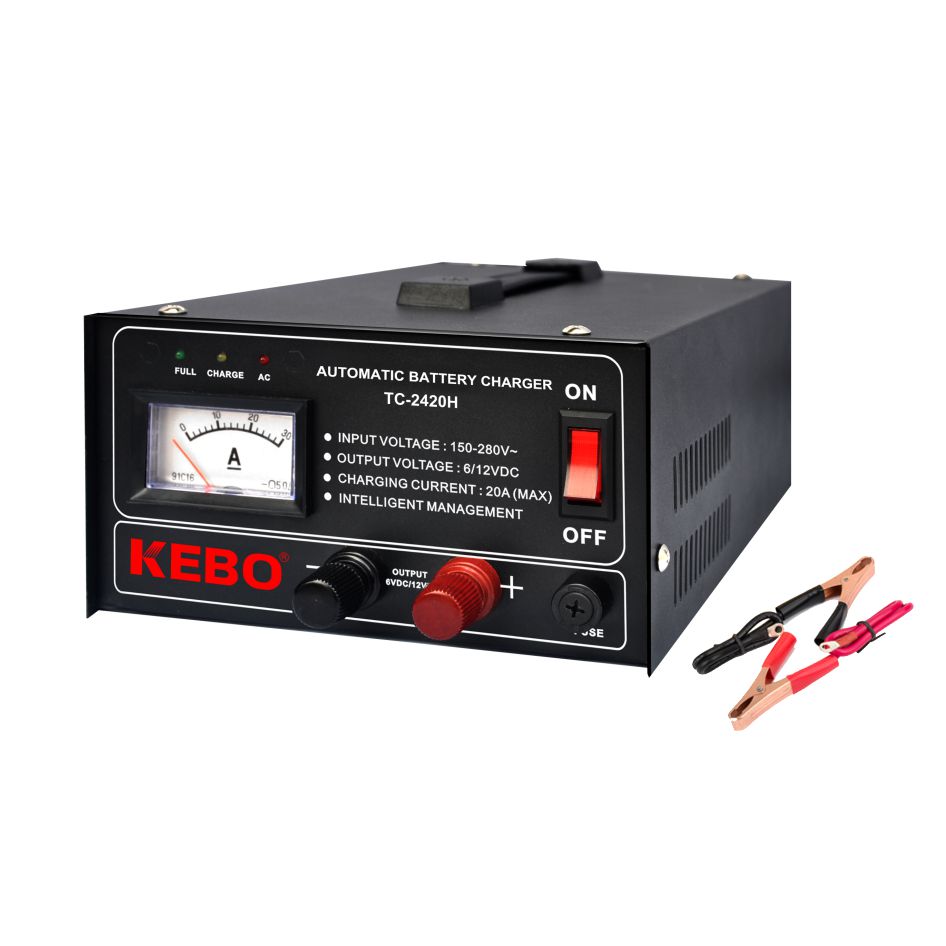

High-Frequency Lead-Acid Battery Charger
This advanced high-frequency charger is engineered for professional lead-acid battery maintenance, supporting diverse types including WET, Calcium, AGM, MF, and GEL. It features an intelligent 3-step automatic charging process to ensure safe and efficient power delivery while protecting your equipment. With robust design elements like short-circuit protection and automated cooling, it is a reliable solution for demanding B2B applications.

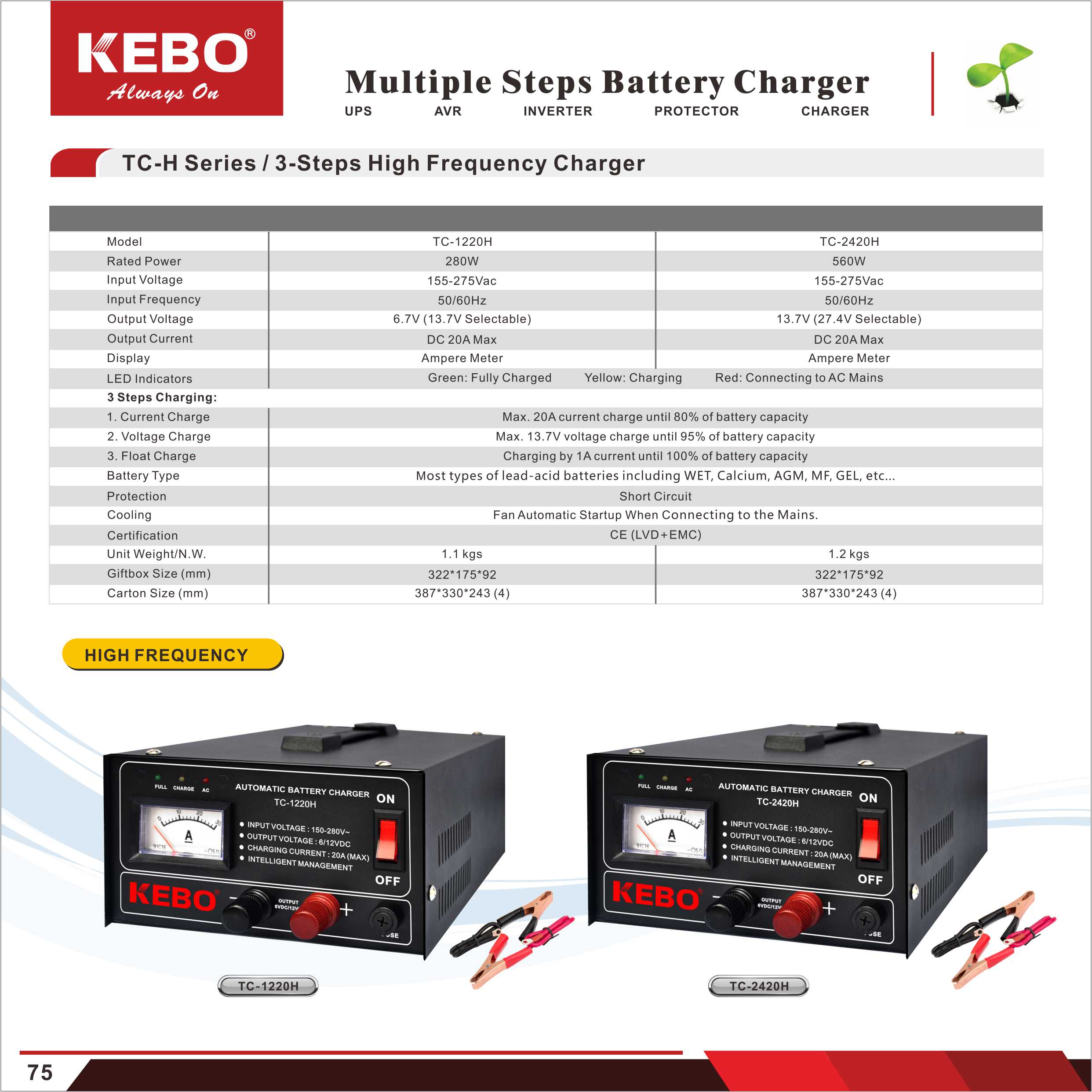

Technical Specifications
Input Power Requirements
- Input Voltage Range: 155-275Vac
- Frequency: 50/60Hz
Performance Ratings
20 A
Max Output Current
280 W
Rated Power TC-1220H
560 W
Rated Power TC-2420H
Charging Stages
| Stage | Description |
|---|---|
| Current Charge | Up to 80% capacity at max 20A |
| Voltage Charge | Up to 95% capacity at max 13.7V |
| Float Charge | Up to 100% capacity at 1A |
Compatibility & Features
Safety and Cooling
- Short circuit protection
- Automatic cooling fan startup
Certifications
CE (LVD+EMC)
- Battery Compatibility
- WETCalciumAGMMFGEL
