Technical Specifications
Overview

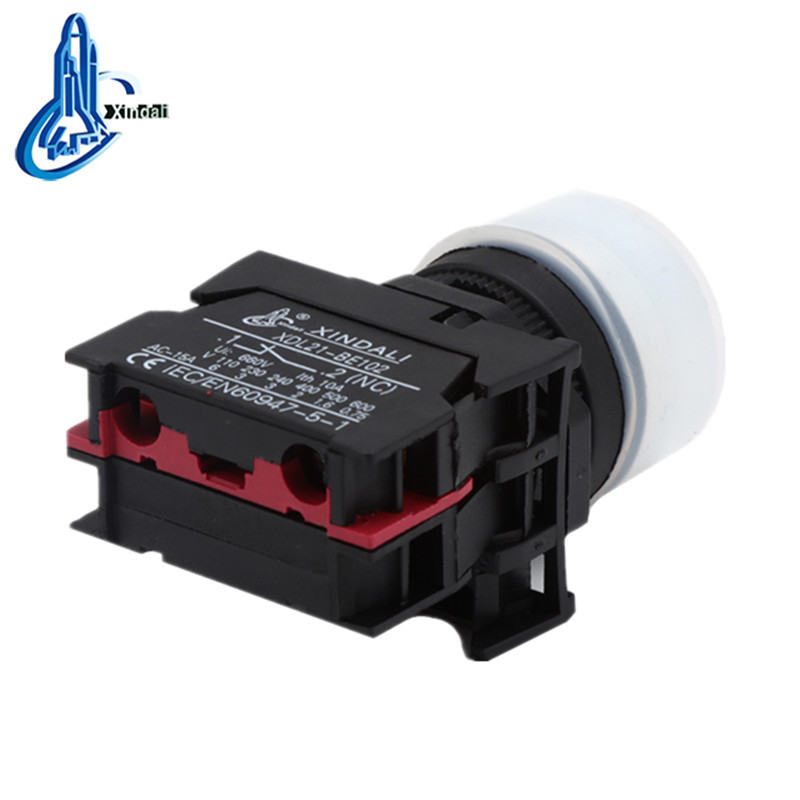

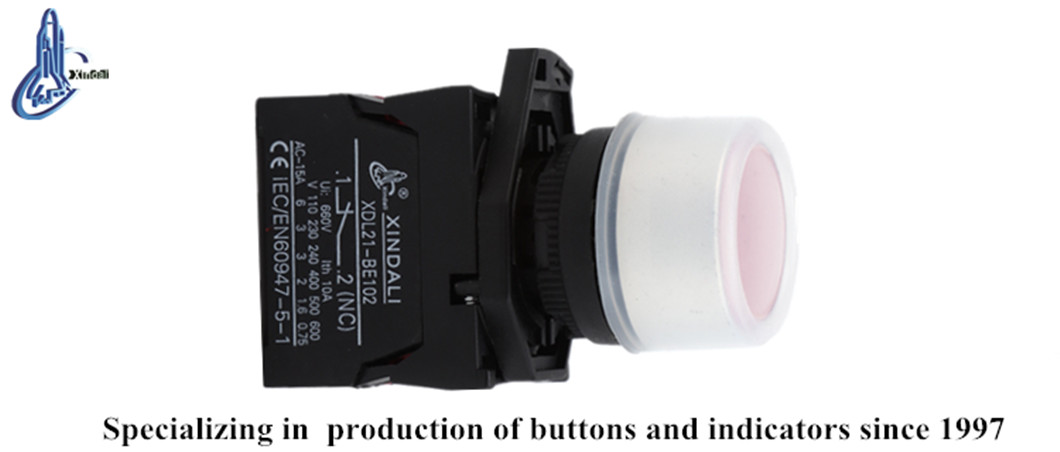

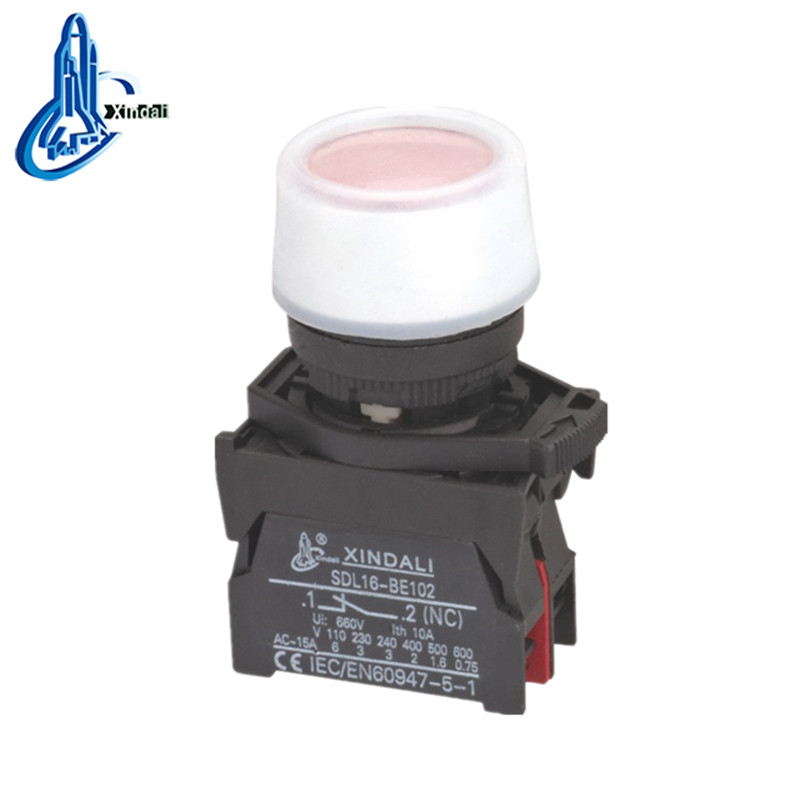

Professional Latching Push Button Switch
Designed for demanding industrial environments and elevator control systems, this XDL21 series push button switch offers high reliability and durability. Featuring a robust zinc alloy and high-grade anti-flame plastic construction, it ensures excellent performance in controlling AC/DC circuits. The switch provides IP67 protection, making it ideal for applications requiring resistance against dust and water ingress.
Electrical Ratings
Core Electrical Performance
660 V
Rated Insulation Voltage
10 A
Conventional Heating Current
2.5 KV
Withstand Voltage
- Contact Resistance
- ≤25mΩ
Mechanical & Environmental
Protection Grade
IP67Anti-flame plastic
Mechanical Life Cycles
| Component | Operations |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Stop | 300,000 |
- Operational Temperature Range
- -5°C to +55°C
Compliance
- Certifications & Standards
- CEISO9001ROHSULIEC60947-5-1
