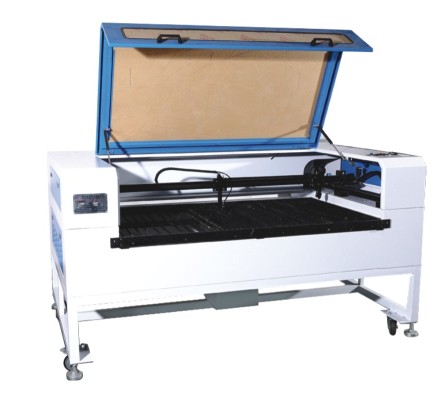

Laser Engraving Machine for Shoe Manufacturing
This laser engraving machine is designed for shoe and leather applications, including cutting, boring, scribing, and engraving. It features a robust frame, high-precision linear guides, and a user-friendly control panel for efficient material processing.
Technical Specifications
Overview
Precision Laser Engraving Solution
The GL-960 is a high-performance laser engraving machine designed specifically for the shoe manufacturing, packaging, and printing industries. By combining advanced CAM control with precision DSP digital technology, it delivers delicate and precise engraving comparable to traditional gravure printing. This machine offers a cost-effective alternative to flexible resin, enhancing competitiveness through durable, high-quality output on a wide range of non-metallic materials.
Technical Specifications
- Processing Area
- 900 mm
- Laser Power
- 80 W
- Engraving Speed
- 30000 mm/min
- Maximum Engraving Depth
- 3.5 mm
- Location Precision
- 0.05 mm
- Resolution Ratio
- ≤ 4000 dpi
- Gross Power
- 1250 W
Capabilities
Supported Graphic Formats
- BMP
- GIF
- PEG
- PCX
- TGA
- TIFF
- PLT
- CDR
- DWG
- DXF
- Applicable Materials
- RubberPlasticCrystalPlexiglas AcrylicsBambooWoodMarble
Operating Environment
- Operating Temperature
- 0-45°C
- Operating Humidity
- 5%-95% (free of condensed water)
