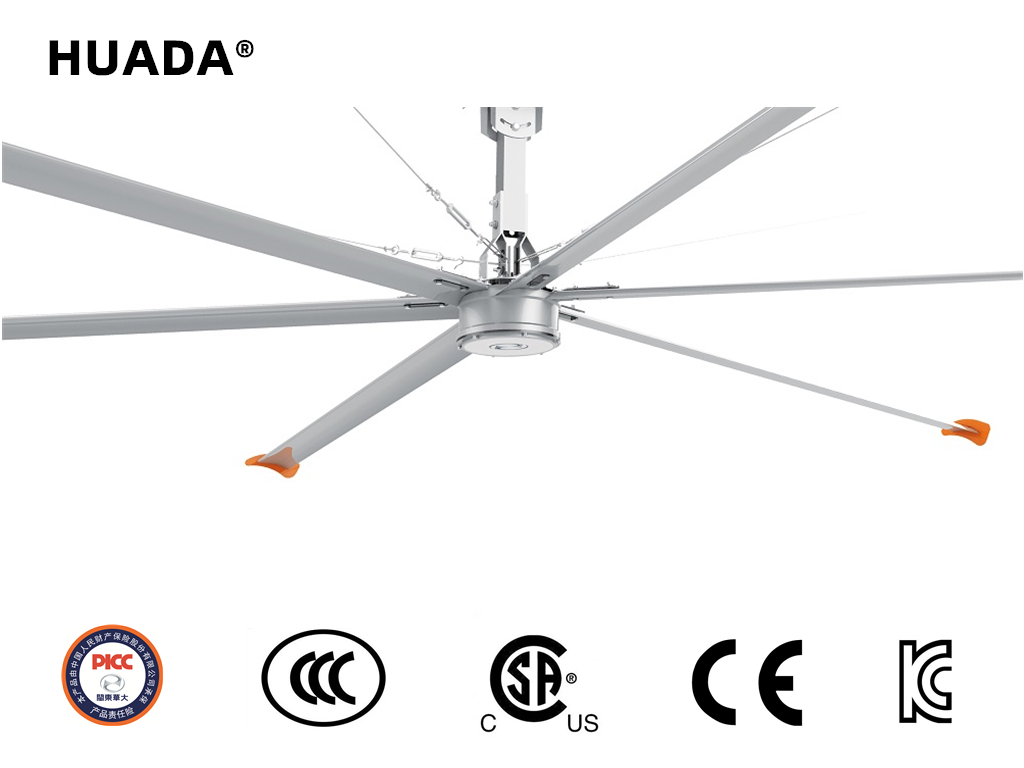

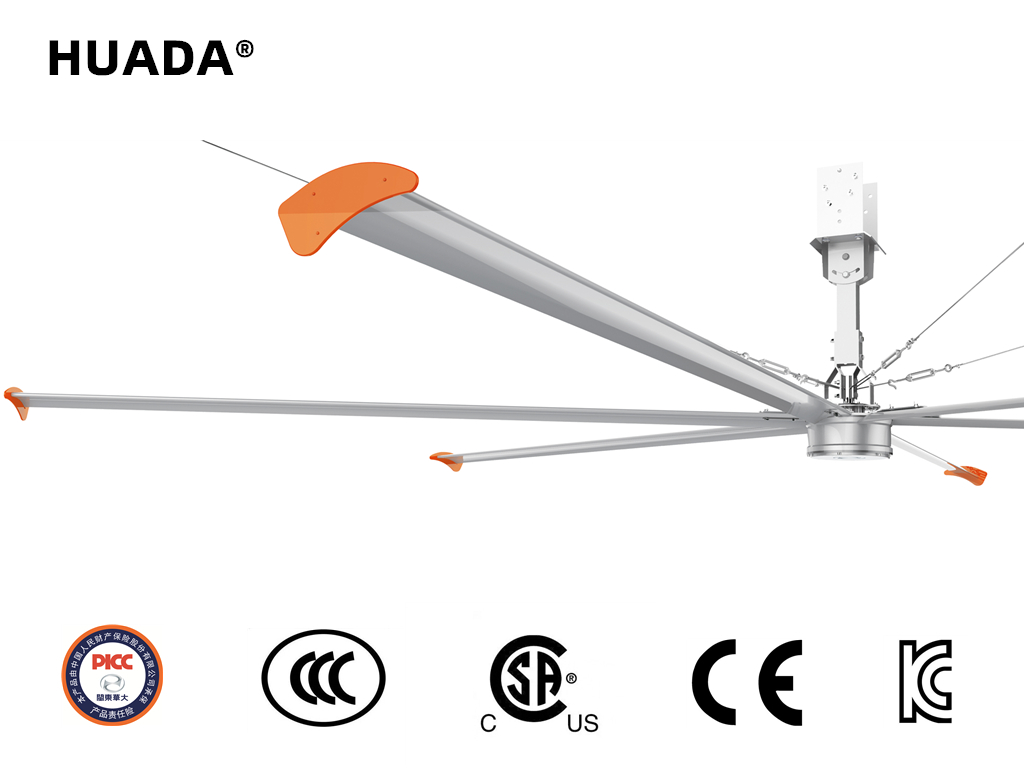

Large Permanent Magnet Ceiling Fan
This large ceiling fan uses a permanent magnet motor for energy-efficient speed control. It is designed to circulate air in large spaces, providing a comfortable and natural breeze.
Technical Specifications
Product Overview
Smart Permanent Magnet Large Ceiling Fan

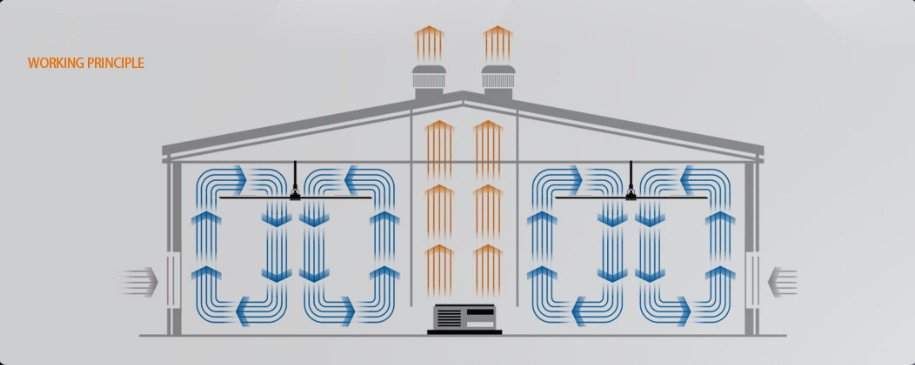

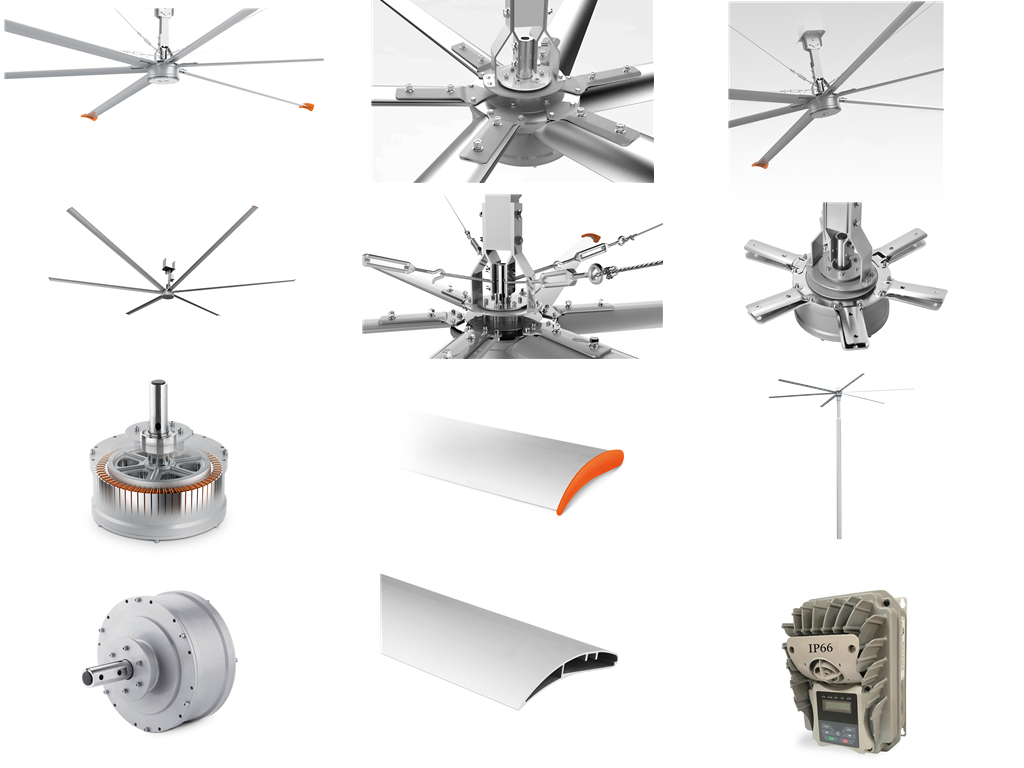

This smart permanent magnet large ceiling fan is engineered to enhance the comfort of large-scale working environments. Featuring a high-efficiency external rotor motor, it offers a compact, lightweight, and low-noise solution for air circulation. The system is designed to push large volumes of air to the ground, creating a comfortable, natural breeze effect suitable for industrial plants, logistics warehouses, and expansive public spaces.
Key Features
Key Features
Permanent Magnet MotorFrequency ConversionEnergy EfficientLow NoiseCompact Design
Technical Specifications
Model Specifications
| Model | Diameter (m) | Power (kW) | Air Volume (m³/min) | Weight (kg) |
|---|---|---|---|---|
| HDS-3 | 3 | 0.37 | 4,000 | 18 |
| HDS-3.7 | 3.7 | 0.37 | 5,000 | 18 |
| HDS-4.3 | 4.3 | 0.75 | 7,000 | 25 |
| HDS-5 | 5 | 0.75 | 10,000 | 25 |
| HDS-5.5 | 5.5 | 1.1 | 11,000 | 48 |
| HDS-6.1 | 6.1 | 1.1 | 11,500 | 48 |
| HDS-6.7 | 6.7 | 1.1 | 12,000 | 48 |
| HDS-7.3 | 7.3 | 1.1 | 13,000 | 48 |
Electrical Data
- Voltage
- 220-240 / 380-460 V
- Frequency
- 50/60 Hz
Performance Metrics
Noise Level
38 dB
Noise
Design Details
- Number of Blades
- 5 or 6
Applications
- Ideal Applications

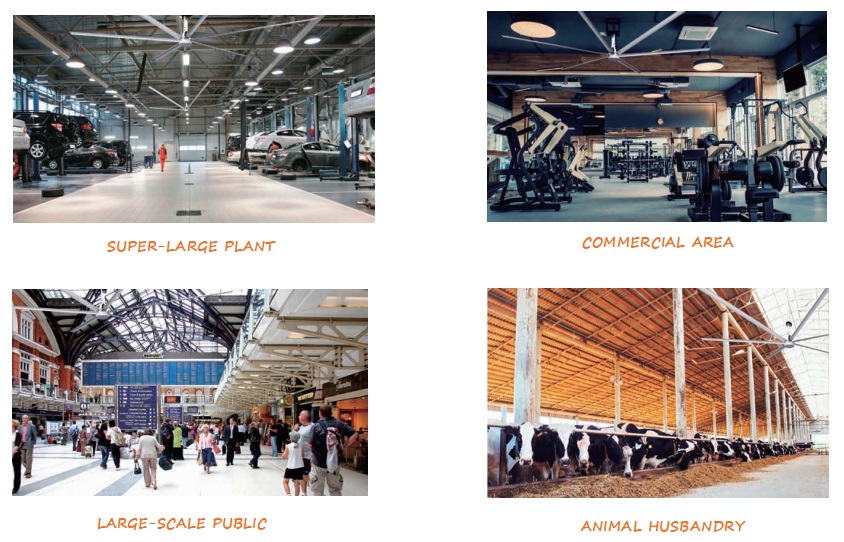

- Industrial PlantsLogistics WarehousingExhibition HallsSports FacilitiesCommercial Areas
