Large Diameter Ceiling Fan
This large diameter ceiling fan is designed to circulate air efficiently in large spaces. It features optimized blades for high-volume, low-speed airflow, ensuring consistent temperature and comfort.
Technical Specifications
Product Overview

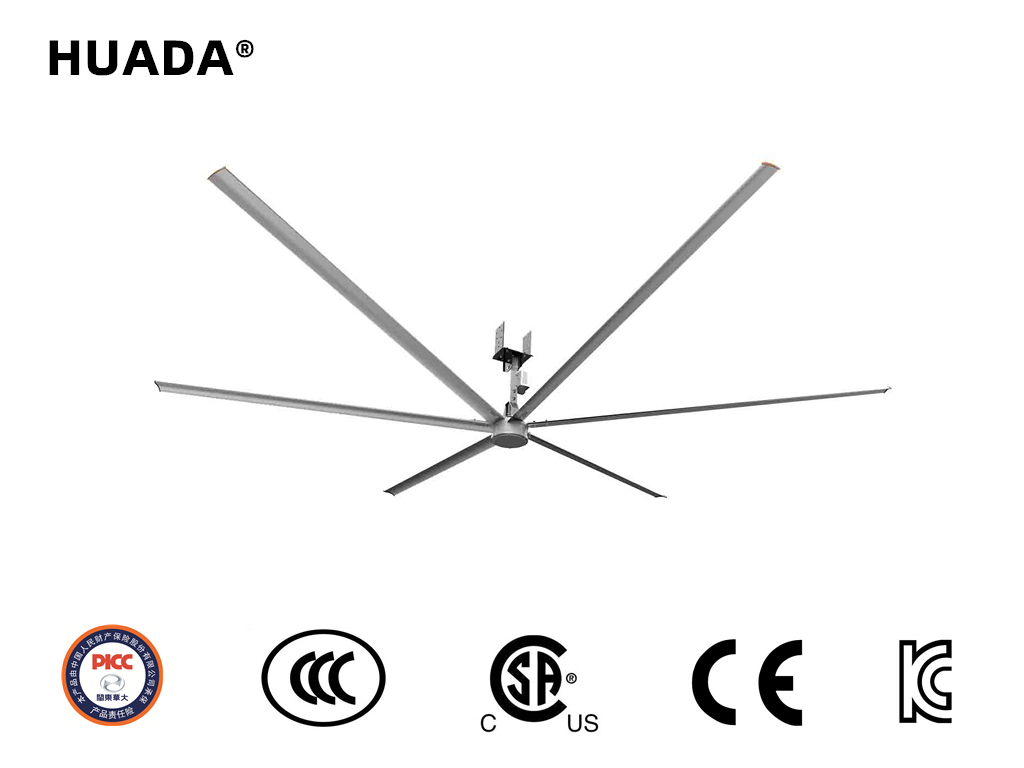

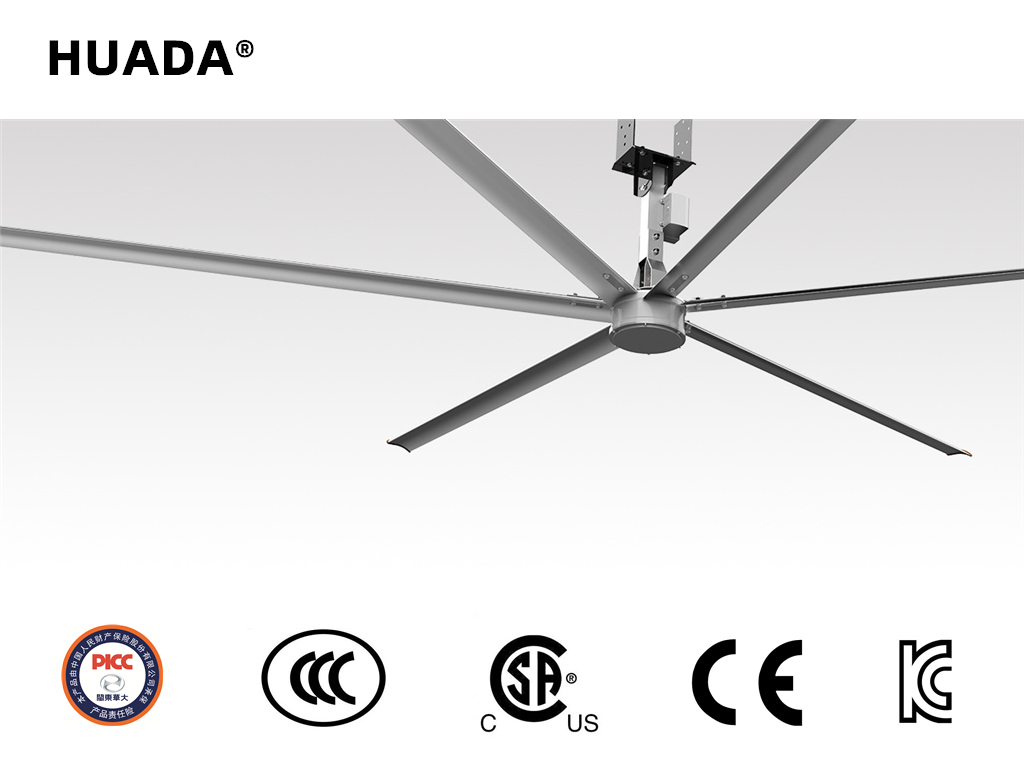

High-Efficiency Smart Permanent Magnet Ceiling Fan

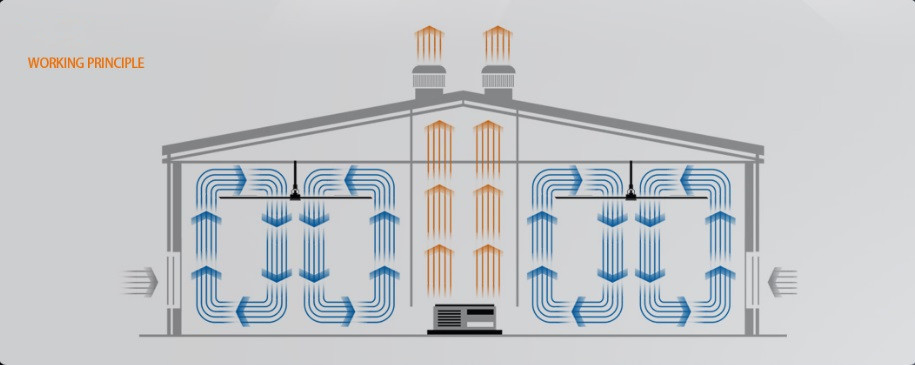

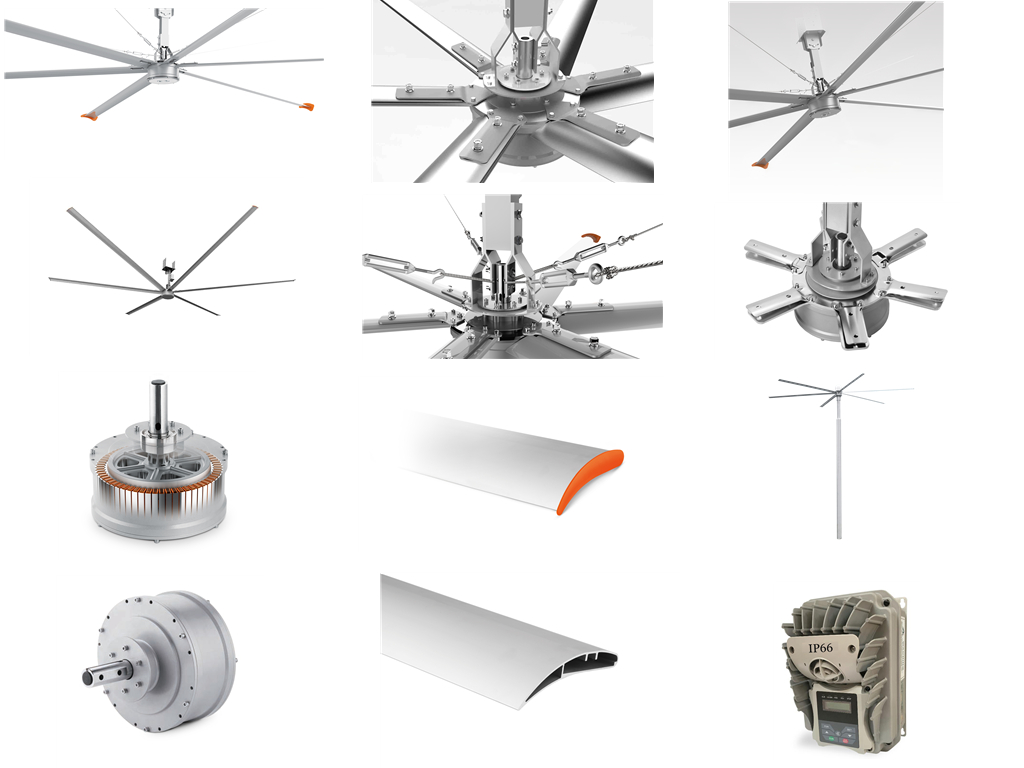

The HDS series utilizes a self-designed variable frequency speed control and a high-efficiency permanent magnet external rotor motor to deliver superior air circulation. Designed for large-scale spaces, it pushes a massive volume of airflow to the ground to create a natural breeze effect that improves personnel comfort and environmental ventilation. With its compact structure and low-noise operation, it serves as an energy-saving solution for industrial and commercial cooling needs.
Key Performance Metrics
Featured Performance
38 dB
Operating Noise
15,000 m3/min
Max Air Volume
7.3 m
Max Diameter
Technical Specifications
Model Comparison Data
| Model | Diameter (m) | Power (KW) | Air Volume (m3/min) | Speed (rpm) |
|---|---|---|---|---|
| HDS-3 | 3 | 0.37 | 4,000 | 120 |
| HDS-3.7 | 3.7 | 0.37 | 5,000 | 100 |
| HDS-4.3 | 4.3 | 0.75 | 7,000 | 90 |
| HDS-5 | 5 | 0.75 | 10,000 | 80 |
| HDS-5.5 | 5.5 | 1.1 | 11,000 | 70 |
| HDS-6.1 | 6.1 | 1.1 | 11,500 | 60 |
| HDS-6.7 | 6.7 | 1.1 | 12,000 | 55 |
| HDS-7.3 | 7.3 | 1.5 | 15,000 | 50 |
Electrical & Mechanical
Ingress Protection
IP66
- Input Voltage
- 220-240V / 380-460V
- Frequency
- 50/60 Hz
- Number of Blades
- 5 Pieces6 Pieces

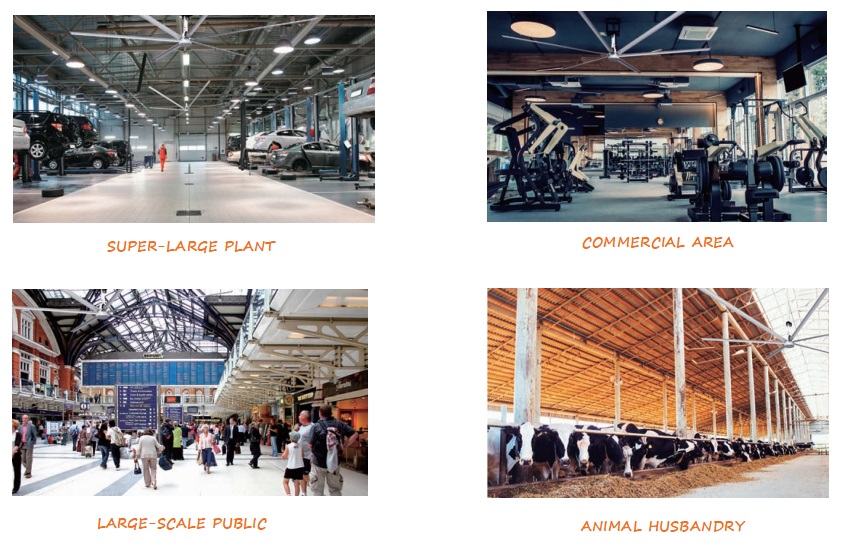

Applications
Recommended Environments
- Industrial Plants
- Logistics Warehousing
- Exhibition Halls
- Physical Education Halls
- Waiting Rooms
- Animal Husbandry
- Commercial Areas
Safety & Control
Control Interface
- Variable frequency speed control
- Green start key / Red stop parts
- Acceleration & Deceleration keys
- System Protections
- OvervoltageUndervoltageOverloadLightning StrikePhase LossCollision Protection
Installation
- Supported Structures
- Concrete StructureSteel StructureSquare Steel
