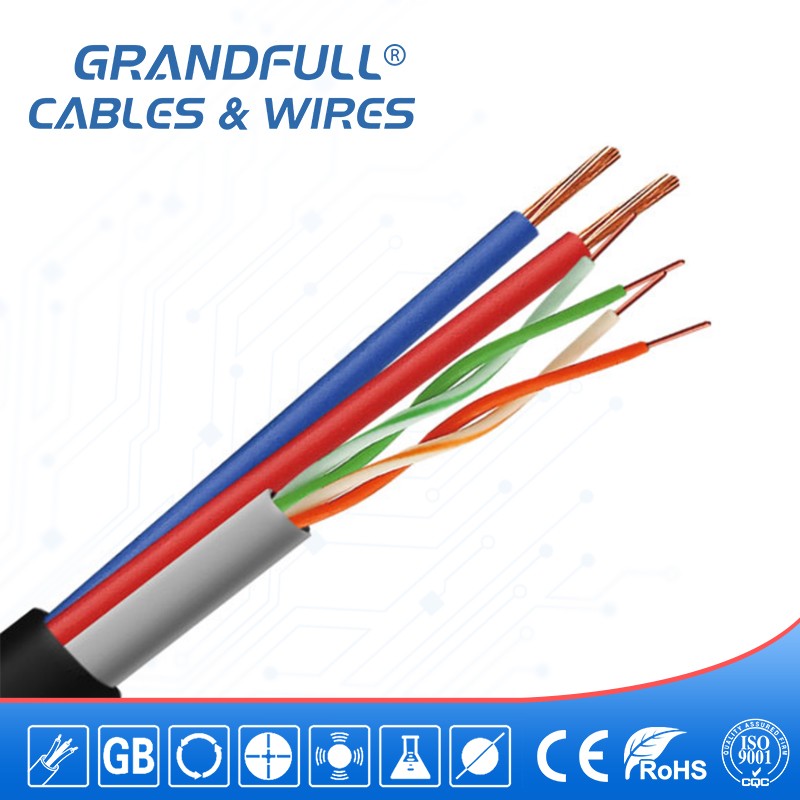

LAN Cable with 2C Power Cable
This cable combines LAN (Local Area Network) capabilities with 2C power conductors, enabling simultaneous data transmission and power supply. The 2C power conductors provide a solution for powering devices alongside data transfer, reducing the need for separate cables.
Technical Specifications
Product Overview
Integrated Data and Power Solution
This composite cable integrates high-performance LAN connectivity with a 2-core power cable, designed specifically for efficient indoor installations. By combining data transmission and power supply in a single cable, it simplifies infrastructure for security systems and network-powered devices. The durable design features resistance to wear and pressure, ensuring reliable performance for long-distance signal transmission.

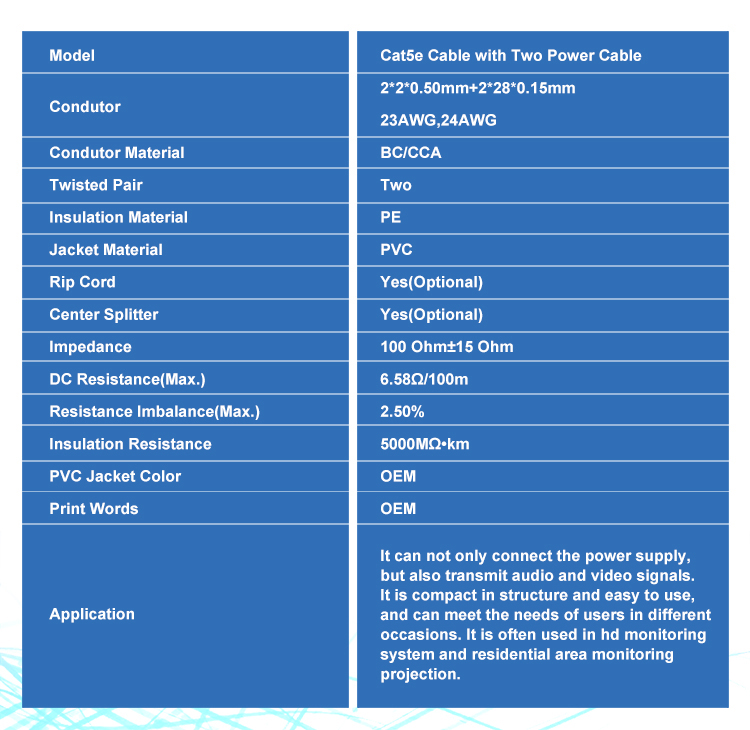

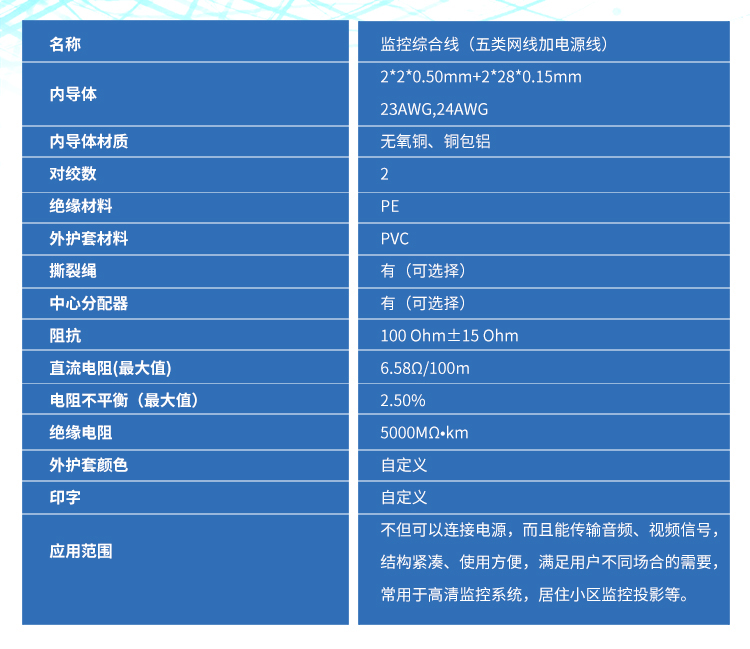

Technical Specifications
- Conductor Configuration
- 2*2*0.50mm + 2*28*0.15mm (23AWG/24AWG)
- Conductor Material
- Oxygen-free CopperCopper-clad Aluminum
- Impedance
- 100 Ohm
- DC Resistance (Max)
- 6.58 Ohm/100m
- Insulation Resistance
- 5000 MΩ·km
Construction & Materials
Materials
| Component | Material |
|---|---|
| Insulation | PE |
| Outer Sheath | PVC |
Optional Features
ShieldingRipcordCenter Splitter
Compliance & Packaging

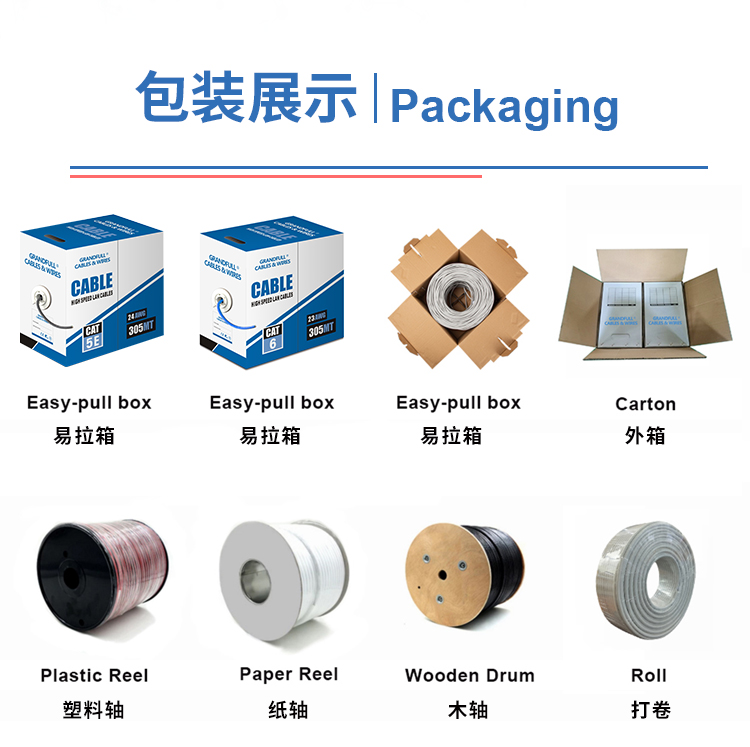

Packaging Options
- Easy-pull box

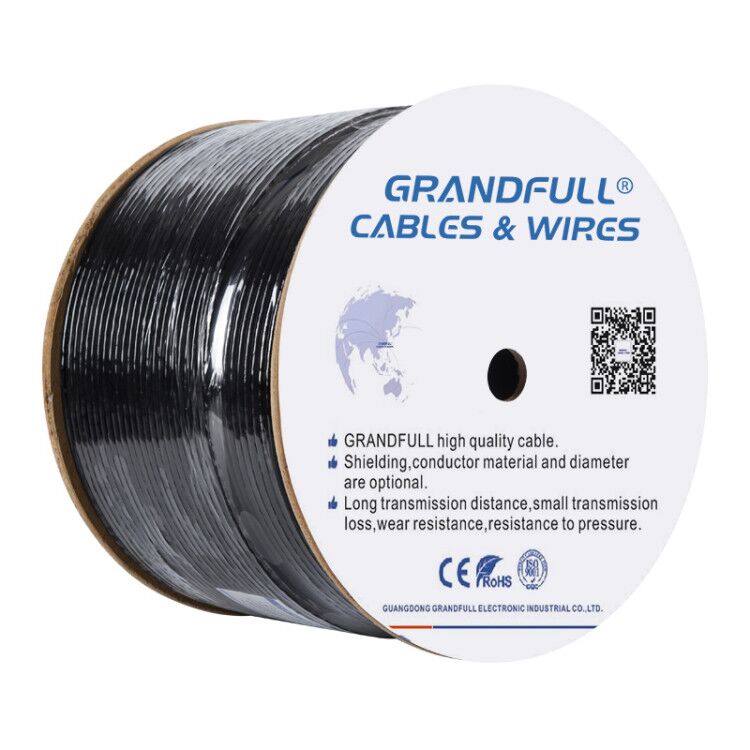

- Plastic Reel
- Paper Reel
- Wooden Drum
- Carton
- Roll
- Certifications
- ISO 9001ISO 14001ISO 18001CERoHSFluke Test Passed
