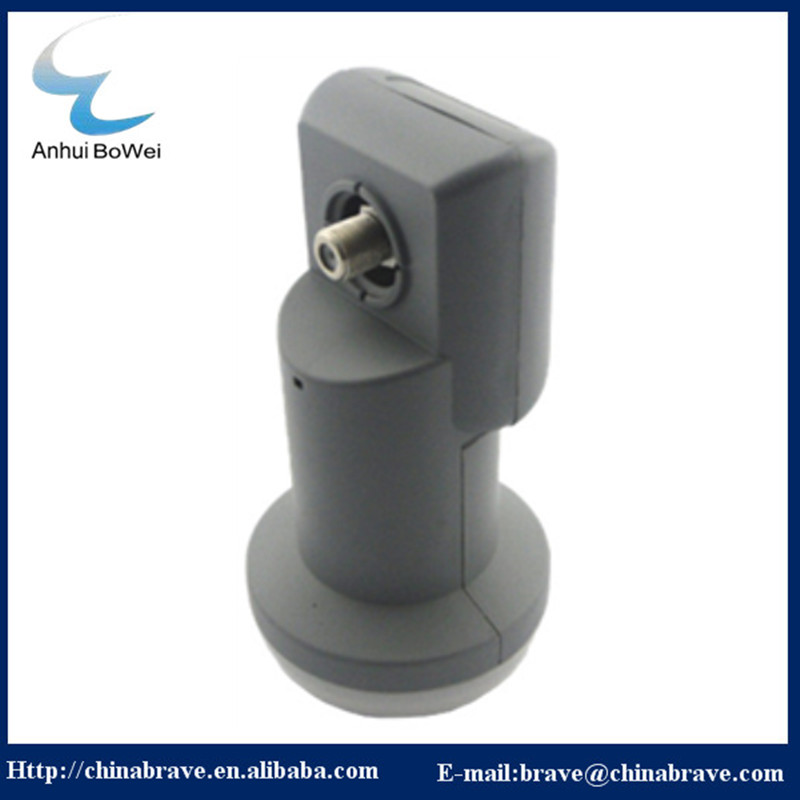

Ku Band Universal LNB
This Ku Band universal LNB is designed for satellite TV reception. It features high gain and a low noise figure to ensure optimal signal quality.
Technical Specifications
Overview
Universal Ku Band Single LNB
This Universal Ku Band Single LNB is designed to provide high-performance satellite signal reception for both analog and digital systems. Featuring advanced PLL technology, it ensures superior stability and signal quality with a low noise figure. Built with weather-resistant materials, it offers reliable operation for professional and residential installations.
Technical Specifications
Core Parameters
| Parameter | Value |
|---|---|
| Input Frequency | 10.7 - 12.75 GHz |
| L.O. Frequency | 9.75 / 10.6 GHz |
| Output Frequency | 950 - 2150 MHz |
| Noise Figure | 0.2 dB |
| Conversion Gain | ≥ 55 dB |
| Output Connector | F-female |
Performance Metrics
Key Performance Indicators
0.2 dB
Noise Figure
55 dB
Min. Conversion Gain
Features
Key Benefits
- Integrated Ku-band satellite reception
- Compatible with analog and digital reception
- Low phase noise performance
- Excellent PLL stability
- High-quality weather protection
