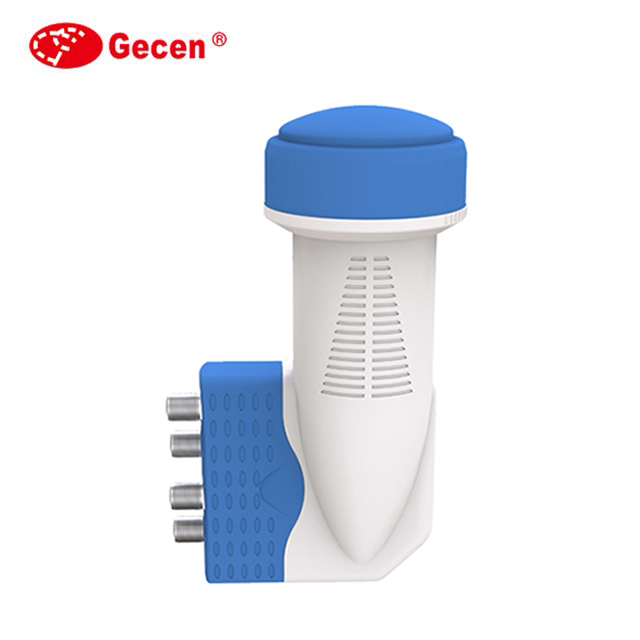

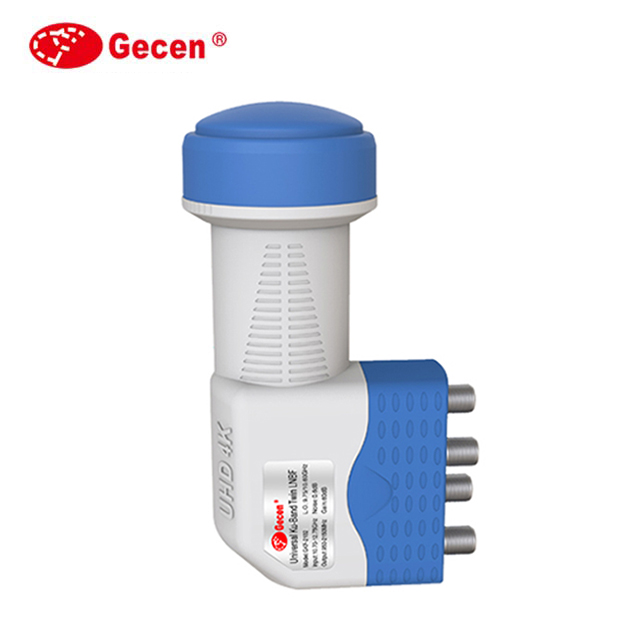

Ku-Band Universal Linear Circular LNB
This LNB is a solution for DTH operators and satellite broadcast reception. It supports 4K Ultra HD transmissions and provides full coverage of the Ku-Band for both analog and digital reception.
Technical Specifications
Product Overview
Professional Ku-Band Solution
This Universal Linear Circular LNB is engineered to provide reliable signal reception for DTH operators and advanced satellite broadcast systems. Supporting high-resolution 4K Ultra HD transmissions, it ensures pristine picture quality with its low noise and high gain architecture. Its versatile design covers the full Ku-Band spectrum, making it ideal for both analog and digital satellite reception requirements.
Frequency Specifications
- Input Frequency Range
- 11.70-12.75 GHz
- Output Frequency Range
- 950-2000 MHz
- Local Oscillator Frequency
- 10.75 GHz
Performance Metrics
Technical Metrics
0.5 dB/27MHz
Gain Flatness
20 dB
POL. Isolation
40 dB
Image Rejection
0 dBm
P1dB Output
- Output VSWR
- 2.0:1 (Typ.)
Stability and Environment
L.O. Frequency Stability
- ±1.0 MHz (Max.) at +25°C
- ±2.0 MHz (Max.) at -30°C to +70°C
Key Features
- System Support
- 4K Ultra HDLinear PolarizationCircular PolarizationDTH ReadyAnalog ReceptionDigital Reception
