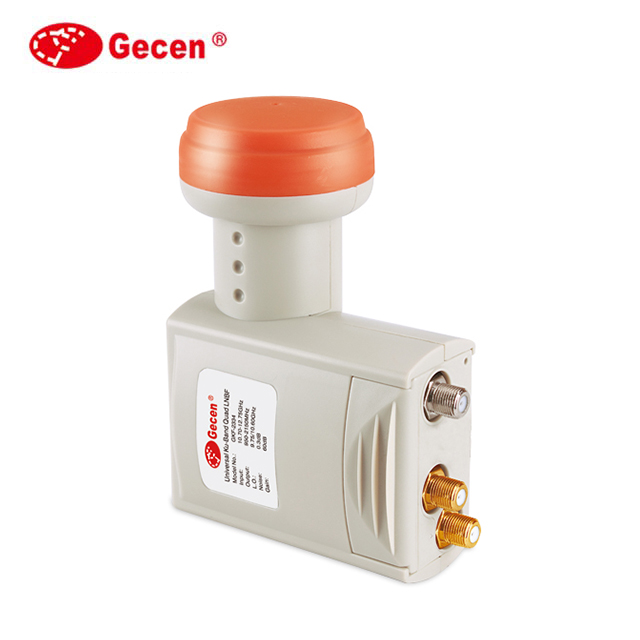

Ku-Band Unicable LNB with Legacy Ports
This unicable LNB features one SCR port and two legacy ports for convenient installation. It offers excellent performance with low noise and high gain, providing full Ku-Band coverage for both analog and digital reception.
Technical Specifications
Product Overview
Professional Ku-Band Satellite Reception
This Ku-Band Unicable LNB is engineered for high-performance analog and digital satellite signal reception. Featuring one SCR port and two legacy ports, it simplifies installation and supports multi-room distribution. With a low noise figure of 0.3 dB and high gain, it ensures a stable and high-quality signal for professional-grade satellite systems.
Frequency Performance
Input Frequency Range
| Band | Range |
|---|---|
| Low Band | 10.70 - 11.70 GHz |
| High Band | 11.70 - 12.75 GHz |
Output Frequency Range
| Band | Range |
|---|---|
| Low Band | 950 - 1950 MHz |
| High Band | 1100 - 2150 MHz |
Signal Integrity
Noise Figure
0.3 dB
Low Band
0.3 dB
High Band
L.O. Phase Noise
- -75dBc/Hz @ 1KHz
- -80dBc/Hz @ 10KHz
- -90dBc/Hz @ 100KHz
- Image Rejection
- 40 dB
Connectivity
- Port Configuration
- 1 x SCR Port2 x Legacy Ports
