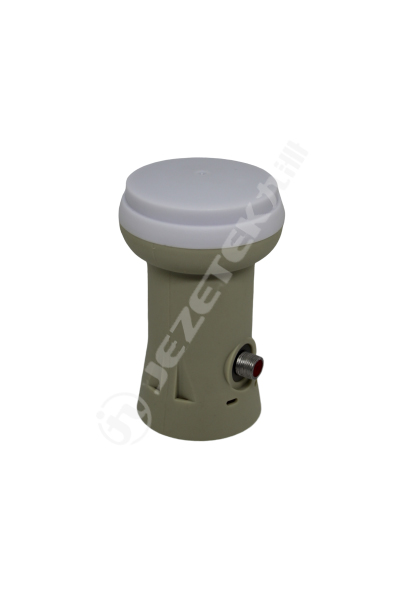

Ku Band Single LNB
This Ku band single LNB is designed for satellite TV reception. It provides a single output for connecting to a satellite receiver and is compatible with all Ku band satellites.
Technical Specifications
Product Overview
High-Performance Universal Ku Band LNB
This Universal Ku band single LNB is engineered for high-precision satellite signal reception, offering exceptional compatibility across Ku band satellites. It features a low noise figure and high conversion gain to ensure superior signal quality for both standard and high-definition broadcasts. Designed for durability, the unit is encased in a robust, weatherproof housing, making it an ideal solution for reliable outdoor satellite TV installations.
Technical Specifications
Performance Highlights
0.3 dB
Noise Figure
56 dB
Conversion Gain
Frequency Specifications
| Parameter | Range |
|---|---|
| Input Frequency | 10.7 ~ 12.75 GHz |
| Output Frequency | 950 ~ 2150 MHz |
| L.O. Low Band | 9.75 GHz |
| L.O. High Band | 10.6 GHz |
Signal Integrity
- Gain Flatness (any 27MHz): ±0.5dB
- Cross Pole. Isolation: 20dB (Min.)
- Image Rejection: 40dB (Min.)
Features
- Key Capabilities
- Weatherproof HousingStandard F-ConnectorHDTV CompatibleKu Band Ready
